Tractor · 1966Unverified

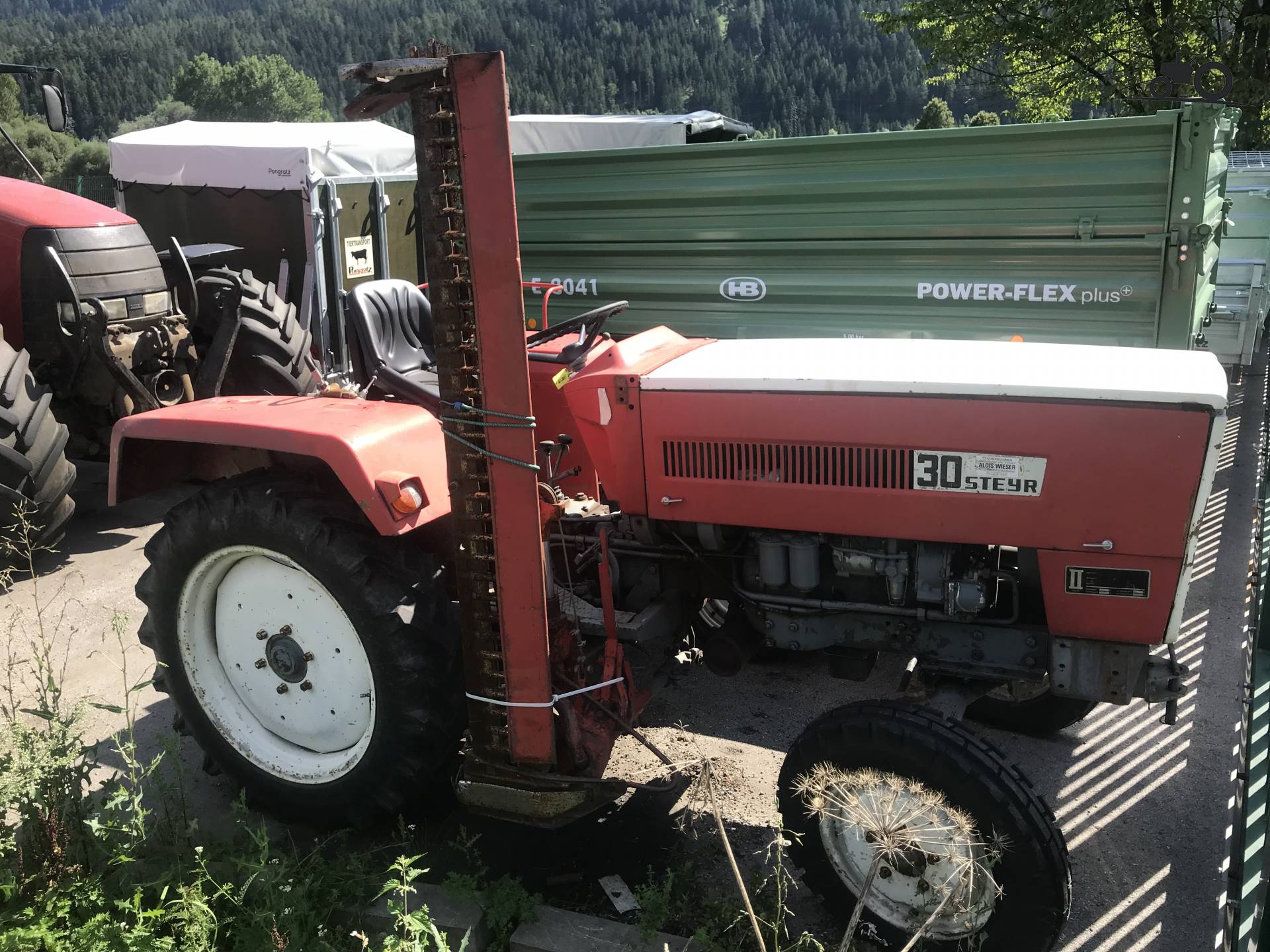

Steyr 30
Steyr 30 — Plus Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1769 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Steyr 2.0L 2-cyl dieselReference
Fuel tank62.1 LReference
Engine22.4 kWReference
Steyr WD 210.40Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement2.0 LReference
Bore/Stroke105 x 115 mmReference
Power22.4 kWReference
Rated RPM2200Reference
Torque118.0 NmReference
Torque RPM1500Reference
Transmission
8-speedReference
TransmissiongearReference
Gears8 forward and 6 reverseReference
PTO & Hydraulics
Total flow15.9 lpmReference
Rear TypeII/IReference
Rear lift1100 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase184 cmReference
Weight1769 kgReference
Front tire5.50-16Reference
Rear tire11.2-28Reference
Ag front5.50-16Reference
Ag rear11.2-28Reference
Length325 cmReference
Width161 cmReference
Height151 cmReference
Max weight2500 kgReference
Front tread124 cmReference
Rear tread124 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
