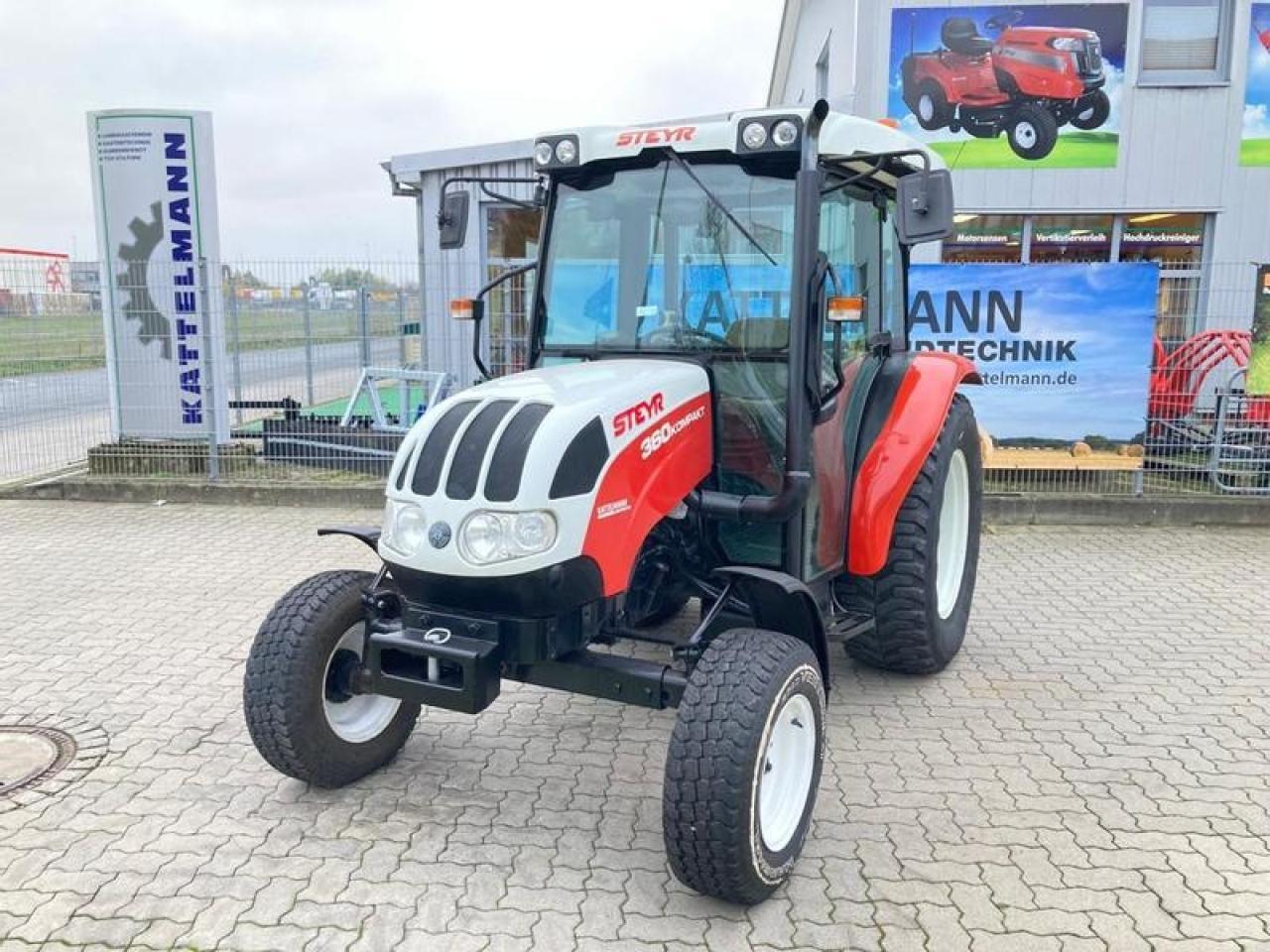

The Steyr 360 Kompakt is a tractor with a rated power of 59 horsepower, situated at the lighter end of its class. Manufactured from 2003 to 2008, it is equipped with a 3-cylinder diesel liquid-cooled engine. The tractor features four-wheel drive, paired with a hydrostatic transmission, and has a listed operating weight of 2750 kilograms. It is suited to operations of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
2750 kg
Catalogue coverage
Variants represented
2
Richest spec table
45 rows
Recorded power
59 hp
Recorded weight
2750 kg
Transmissions
16-speed
Production years
2003-2008
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Iveco 2.9L 3-cyl dieselReference
Fuel tank74.9 LReference
Engine44.0 kWReference
Iveco 8035Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke104 x 115 mmReference
EmissionsTier IIReference
Power44.0 kWReference
Rated RPM2300Reference
Torque170.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
32-speedReference
TransmissionSTEYR Synchro ShiftReference
Gears16 forward and reverseReference
TransmissionSTEYR Power-2Reference
Gears32 forward and 16 reverseReference
PTO & Hydraulics
Valves4Reference
Total flow46.9 lpmReference
Total flow64.0 lpmReference
Rear lift2669 kgReference
Front lift1549 kgReference
Rear PTO Type540/540E/1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase206 cmReference
Weight2750 kgReference
Front tire11.2R24Reference
Rear tire12.4R36Reference
Ag front11.2R24Reference
Ag rear12.4R36Reference
Length343 cmReference
Width229 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
