Tractor · 2003Unverified

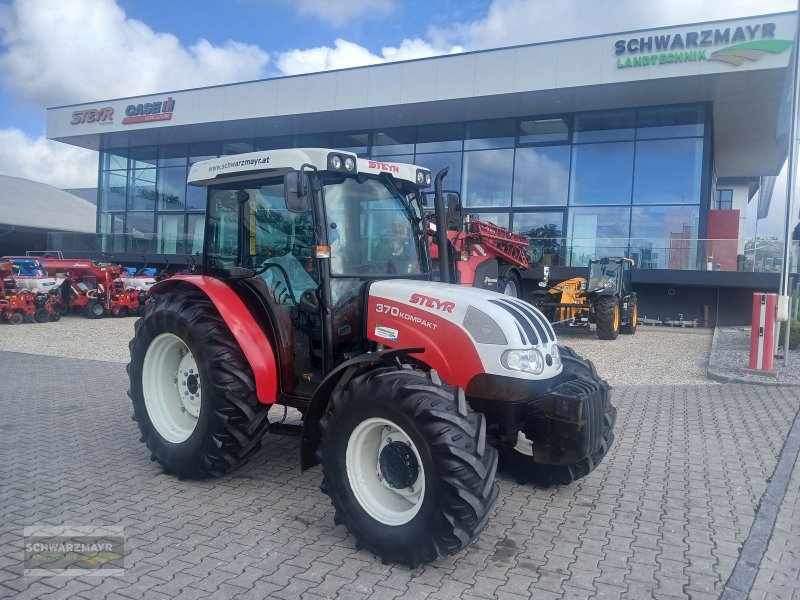

Steyr 370 Kompakt
Steyr 370 Kompakt — Kompakt Series · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Weight
2849 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Iveco 2.9L 3-cyl dieselReference
Fuel tank74.9 LReference
Engine53.7 kWReference
Iveco 8035Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke104 x 115 mmReference
EmissionsTier IIReference
Power53.7 kWReference
Rated RPM2300Reference
Torque214.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
32-speedReference
TransmissionSTEYR Synchro ShiftReference
Gears16 forward and reverseReference
TransmissionSTEYR Power-2Reference
Gears32 forward and 16 reverseReference
PTO & Hydraulics
Valves4Reference
Total flow46.9 lpmReference
Total flow64.0 lpmReference
Rear lift2669 kgReference
Front lift1549 kgReference
Rear PTO Type540/540E/1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase206 cmReference
Weight2849 kgReference
Front tire11.2R24Reference
Rear tire12.4R36Reference
Ag front11.2R24Reference
Ag rear12.4R36Reference
Length343 cmReference
Width229 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
