Tractor · 2013Unverified

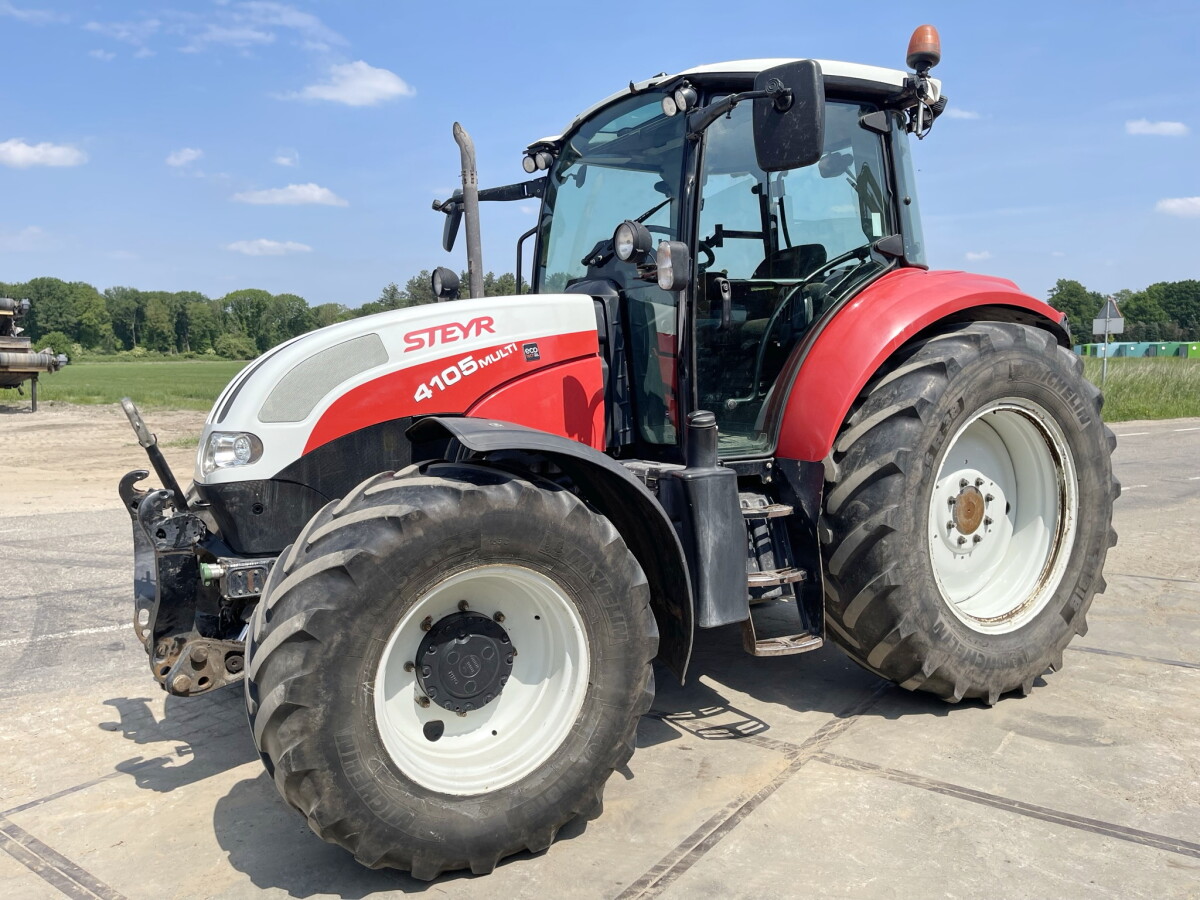

Steyr 4105 Multi
Steyr 4105 Multi — Multi Series · 107 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
107 hp
Weight
4500 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Built in Saint Valentin, AustriaReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Iveco 3.4L 4-cyl dieselReference
Fuel tank149.9 LReference
Engine (gross)79.8 kWReference
IvecoReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
Rated Power (gross)79.8 kWReference
Rated RPM2200Reference
Torque444.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
32-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
four gears in four ranges, with an additional two-range shift.Reference
PTO & Hydraulics
Typeopen centerReference
Typeclosed center load-sensingReference
Rear valves4 (max)Reference
Mid valves2 (max)Reference
Pump flow60.0 lpmReference
Pump flow99.9 lpmReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000/1000EReference
Engine RPM540@1805Reference
Engine RPM540E@1542Reference
Engine RPM1000@1880Reference
Engine RPM1000E@1606Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@1920Reference
Dimensions
Wheelbase242 cmReference
Weight4500 kgReference
Front tire480/65R24Reference
Rear tire540/65R38Reference
Standard tires (ag)Front: 480/65R24. Rear: 540/65R38Reference
Length440 cmReference
Width210 cmReference
Height (cab)272 cmReference
Height (cab)274 cmReference
Ground clearance45 cmReference
Front tread175 cmReference
Rear tread163 cmReference
Shipping4500 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Capacities
Max capacity7500 kgReference
Max capacity7800 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
