Tractor · 2016Unverified

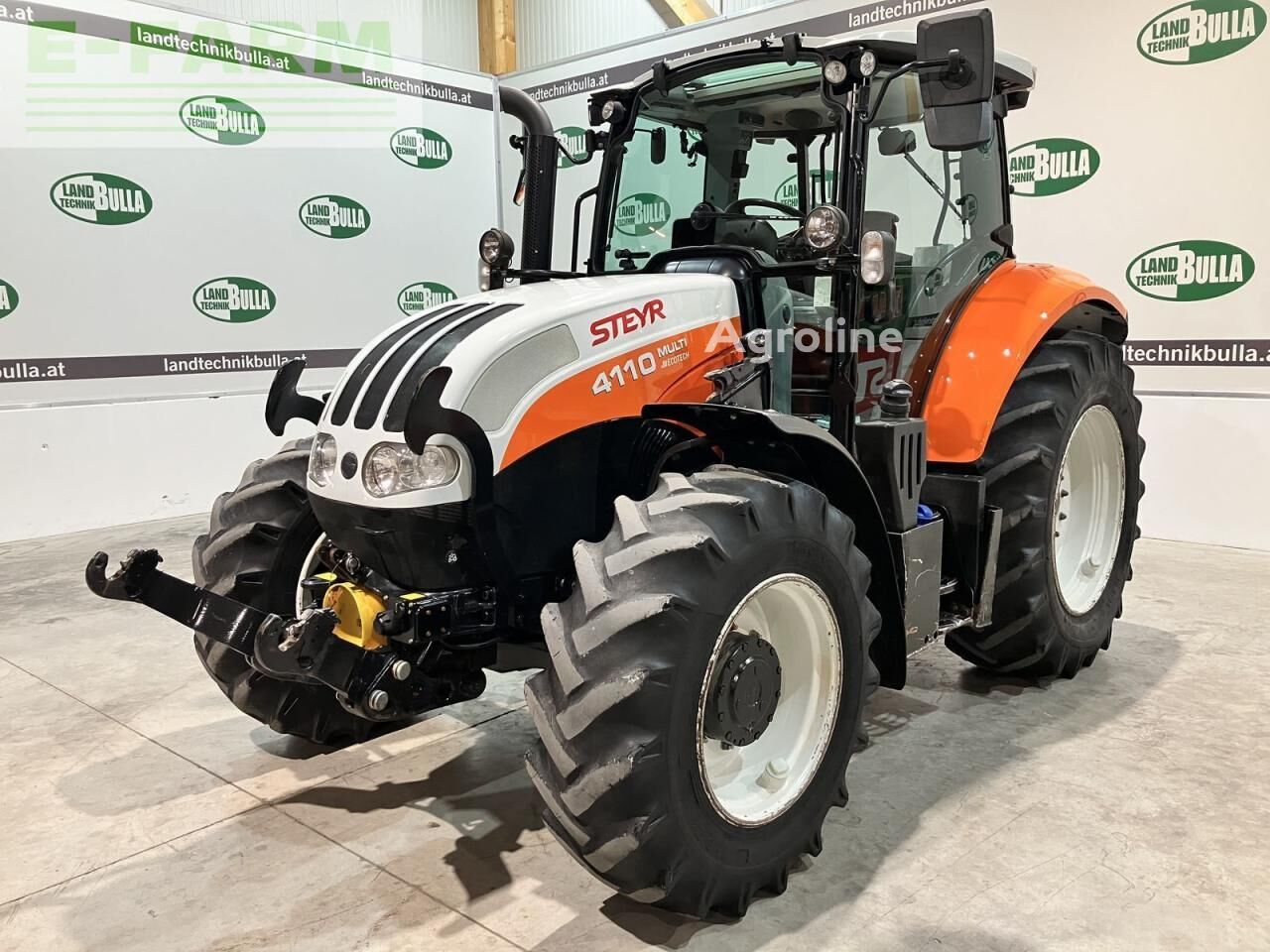

Steyr 4110 Multi
Steyr 4110 Multi — Multi Series · 107 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
107 hp
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Built in Saint Valentin, AustriaReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Iveco 3.4L 4-cyl dieselReference
Engine (gross)79.8 kWReference
IvecoReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
Rated Power (gross)79.8 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
32-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
four gears in four ranges, with an additional two-range shift.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
