Tractor · 2007Unverified

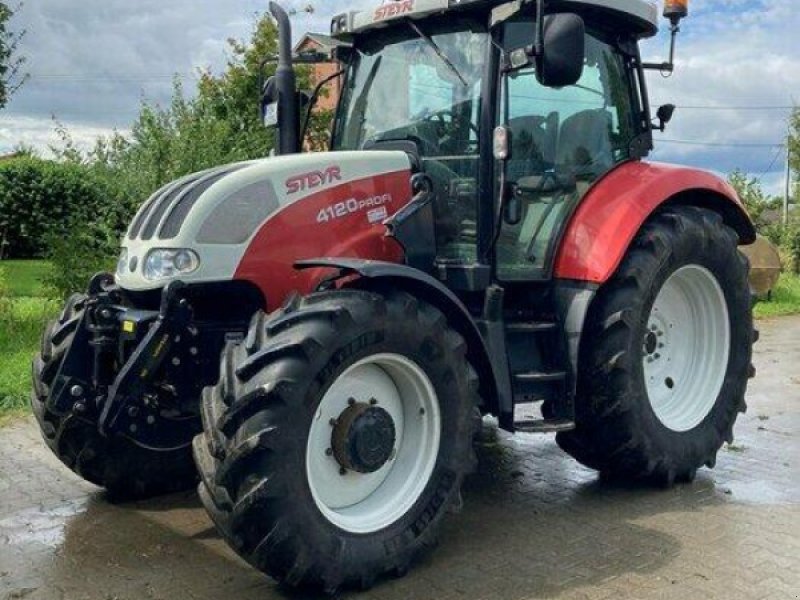

Steyr 4120 Profi
Steyr 4120 Profi — Model year 2007-20122012-2015 · 121 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
121 hp
Weight
4819 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Steyr SK3 cab standard with air-conditioning.Reference
Engine
Iveco 4.5L 4-cyl dieselReference
Fuel tank176.0 LReference
Engine (gross)90.2 kWReference
Engine (max)112.6 kWReference
IvecoReference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
Rated Power (gross)90.2 kWReference
Maximum Power (gross)112.6 kWReference
Rated RPM2200Reference
Torque563.0 NmReference
Torque RPM1400Reference
Starter typenegativeReference
Transmission
16-speed four-speed power shiftReference
32-speedReference
TransmissionPower-8Reference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
TransmissionPower-8 CreeperReference
Gears32 forward and reverseReference
PTO & Hydraulics
Typeclosed center load sensingReference
Valves4 (max)Reference
Pump flow113.0 lpmReference
Rear TypeIII/IIReference
Rear lift6217 kgReference
Front lift3700 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000 (1.375)Reference
Engine RPM540@1969Reference
Engine RPM540E@1546Reference
Engine RPM1000@2120Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase241 cmReference
Weight4819 kgReference
Front tire14.9R24Reference
Rear tire16.9R38Reference
Ag front14.9R24Reference
Ag rear16.9R38Reference
Length429 cmReference
Width187 cmReference
Height287 cmReference
Shipping weight4819 kgReference
Max weight8999 kgReference
Front tread140 to 210 cmReference
Rear tread143 to 202 cmReference
Electrical
GroundelectricReference
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
