Tractor · 2012Unverified

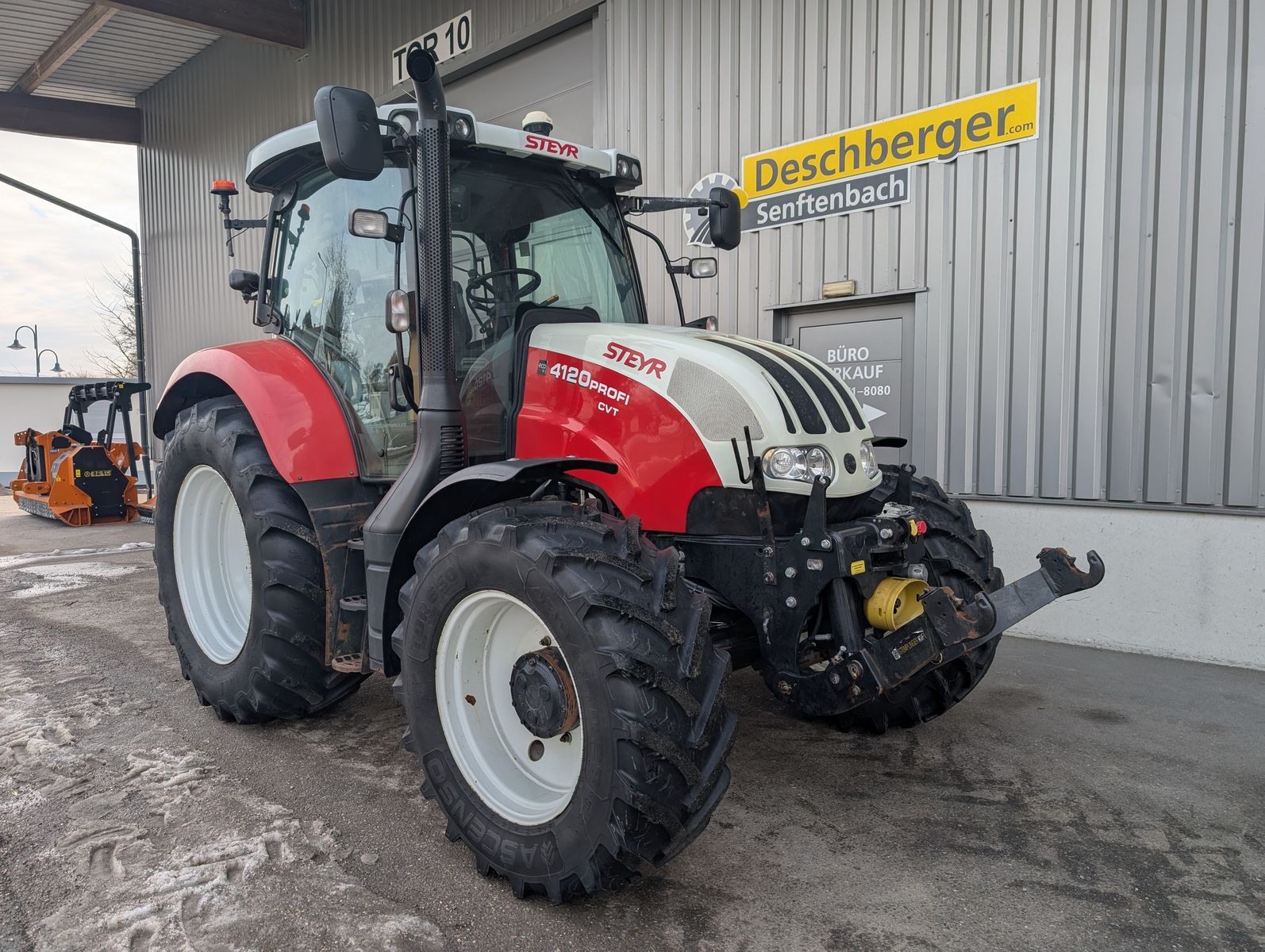

Steyr 4120 Profi CVT
Steyr 4120 Profi CVT — Utility tractor · 133 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
133 hp
Weight
4990 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Steyr SK3 cab standard with air-conditioning.Reference
Variants
4120 Profipower shiftReference
4120 CVTcontinuously-variable transmissionReference
Engine
Iveco 4.5L 4-cyl dieselReference
Fuel tank174.9 LReference
Exhaust fluid (DEF)37.1 LReference
Engine (gross)99.2 kWReference
Engine (max)114.8 kWReference
IvecoReference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsStage IIIBReference
Rated Power (gross)99.2 kWReference
Maximum Power (gross)114.8 kWReference
Rated RPM2200Reference
Torque549.0 NmReference
Torque RPM1500Reference
Starter typenegativeReference
Transmission
continuously variable transmission (CVT)Reference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeclosed center load sensingReference
Valves4 (max)Reference
Pump flow124.9 lpmReference
Rear TypeIII/IIReference
Rear lift7864 kgReference
Front lift3099 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E/1000Reference
Engine RPM540@1969Reference
Engine RPM540E@1546Reference
Engine RPM1000@1893Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase240 cmReference
Wheelbase245 cmReference
Weight4990 kgReference
Front tire480/65R28Reference
Rear tire600/65R38Reference
Ag front480/65R28Reference
Ag rear600/65R38Reference
Length430 cmReference
Width220 cmReference
Height290 cmReference
Shipping weight4990 kgReference
Max weight9500 kgReference
Ground clearance48 cmReference
Front tread140 to 210 cmReference
Rear tread143 to 202 cmReference
Electrical
GroundelectricReference
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
