Tractor · 2016Unverified

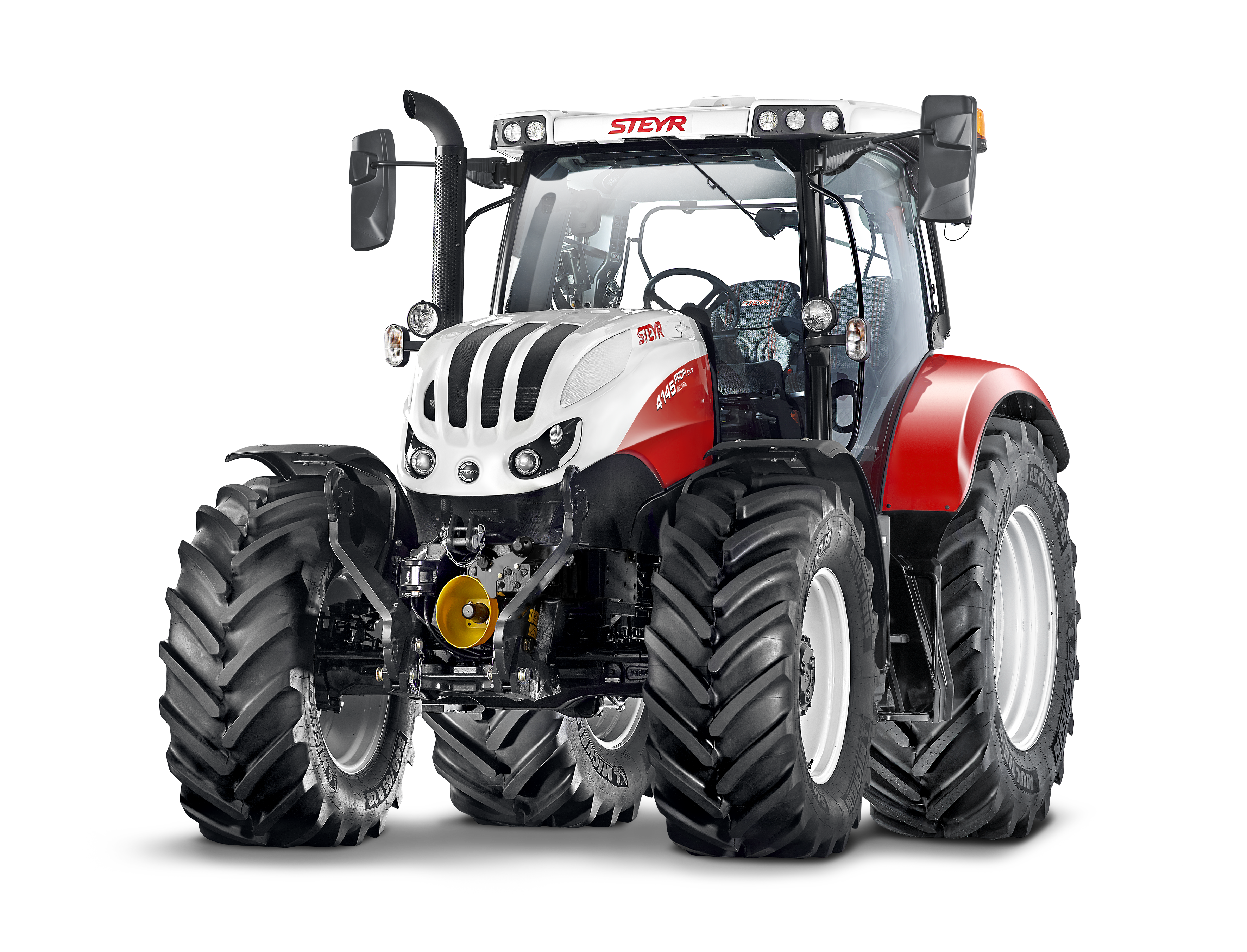

Steyr 4135 Profi

Steyr 4135 Profi — Utility tractor · 135 hp. Reference specifications; pending source verification.

The Steyr 4135 Profi is a tractor rated at 135 hp, positioning it among the higher-powered machines in its class. Manufactured in 2016, it features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives through a four-wheel drive system with a continuously variable transmission. The listed weight of the 4135 Profi is 4890 kg, and it is suited for tasks requiring around 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
135 hp
Weight
4890 kg

Catalogue coverage

Variants represented
2
Richest spec table
71 rows
Recorded power
135 hp
Recorded weight
4890 kg
Transmissions
16-speed four-speed power shift
Production years
2016-2016
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSteyrReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakespneumaticReference
Cab standard with air-conditioning. Optional active suspension.Reference

Variants

4135 ProfipremiumReference
4135 ClassiceconomyReference
4135 CVTcontinuously-variable transmissionReference

Engine

Iveco 4.5L 4-cyl dieselReference
Fuel tank198.0 LReference
Fuel tank230.1 LReference
Exhaust fluid (DEF)39.4 LReference
Engine (gross)100.7 kWReference
Engine (max)126.0 kWReference
IvecoReference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsStage IVReference
Rated Power (gross)100.7 kWReference
Maximum Power (gross)126.0 kWReference
Rated RPM2200Reference
Torque RPM1500Reference
Starter typenegativeReference

Transmission

16-speed four-speed power shiftReference
32-speed creeperReference
17-speedReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
TypecreeperReference
Gears32 forward and reverseReference
Gears17 forward and 16 reverseReference

PTO & Hydraulics

Typeclosed center load sensingReference
Rear valves4 (max)Reference
Mid valves2 (max)Reference
Pump flow113.0 lpmReference
Rear TypeIII/IIReference
Rear lift7864 kgReference
Front lift3099 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540E/1000:1000EReference
Engine RPM540@1969Reference
Engine RPM540E@1546Reference
Engine RPM1000@1893Reference
Engine RPM1000E@1621Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@1895Reference

Dimensions

Wheelbase264 cmReference
Wheelbase268 cmReference
Weight4890 kgReference
Front tire480/65R28Reference
Rear tire600/65R38Reference
Ag front480/65R28Reference
Ag rear600/65R38Reference
Length513 cmReference
Length520 cmReference
Width246 cmReference
Height299 cmReference
Shipping weight4890 kgReference
Max weight9500 kgReference
Front tread157 to 225 cmReference
Rear tread143 to 213 cmReference

Electrical

GroundelectricReference
Charging systemalternatorReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
