Tractor · 2016Unverified

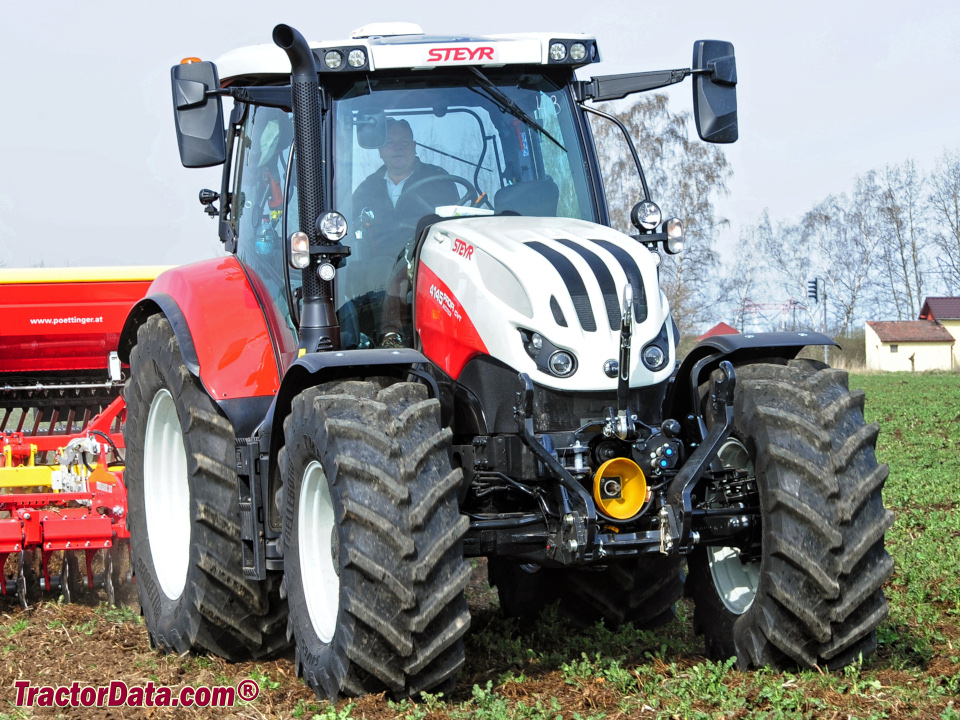

Steyr 4145 Profi

Name: Steyr 4145 Profi
Brand: Steyr

Steyr 4145 Profi — Utility tractor · 145 hp. Reference specifications; pending source verification.

The Steyr 4145 Profi is a tractor with a rated power output of 145 hp, placing it at the higher end of its class. It was manufactured in 2016. The tractor is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. It has an operating weight of 5010 kg and is suitable for working on farms of between 200 and 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

145 hp

Weight

5010 kg

Catalogue coverage

Variants represented

Richest spec table

71 rows

Recorded power

145 hp

Recorded weight

5010 kg

Transmissions

16-speed four-speed power shift

Production years

2016-2016

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSteyrReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Cab standard with air-conditioning. Optional active suspension.Reference

Variants

4145 ProfipremiumReference

4145 ClassiceconomyReference

4145 CVTcontinuously-variable transmissionReference

Engine

Iveco 4.5L 4-cyl dieselReference

Fuel tank198.0 LReference

Fuel tank230.1 LReference

Exhaust fluid (DEF)39.4 LReference

Engine (gross)108.1 kWReference

Engine (max)130.5 kWReference

IvecoReference

turbocharged intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke104 x 132 mmReference

EmissionsStage IVReference

Rated Power (gross)108.1 kWReference

Maximum Power (gross)130.5 kWReference

Rated RPM2200Reference

Torque RPM1500Reference

Starter typenegativeReference

Transmission

16-speed four-speed power shiftReference

32-speed creeperReference

17-speedReference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

TypecreeperReference

Gears32 forward and reverseReference

Gears17 forward and 16 reverseReference

PTO & Hydraulics

Typeclosed center load sensingReference

Rear valves4 (max)Reference

Mid valves2 (max)Reference

Pump flow113.0 lpmReference

Rear TypeIII/IIReference

Rear lift7864 kgReference

Front lift3099 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540E/1000Reference

Rear PTO Type540E/1000:1000EReference

Engine RPM540@1969Reference

Engine RPM540E@1546Reference

Engine RPM1000@1893Reference

Engine RPM1000E@1621Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@1895Reference

Dimensions

Wheelbase264 cmReference

Wheelbase268 cmReference

Weight5010 kgReference

Front tire480/65R28Reference

Rear tire600/65R38Reference

Ag front480/65R28Reference

Ag rear600/65R38Reference

Length513 cmReference

Length520 cmReference

Width246 cmReference

Height299 cmReference

Shipping weight5010 kgReference

Max weight9500 kgReference

Front tread157 to 225 cmReference

Rear tread143 to 213 cmReference

Electrical

GroundelectricReference

Charging systemalternatorReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
