Tractor · 2005Unverified

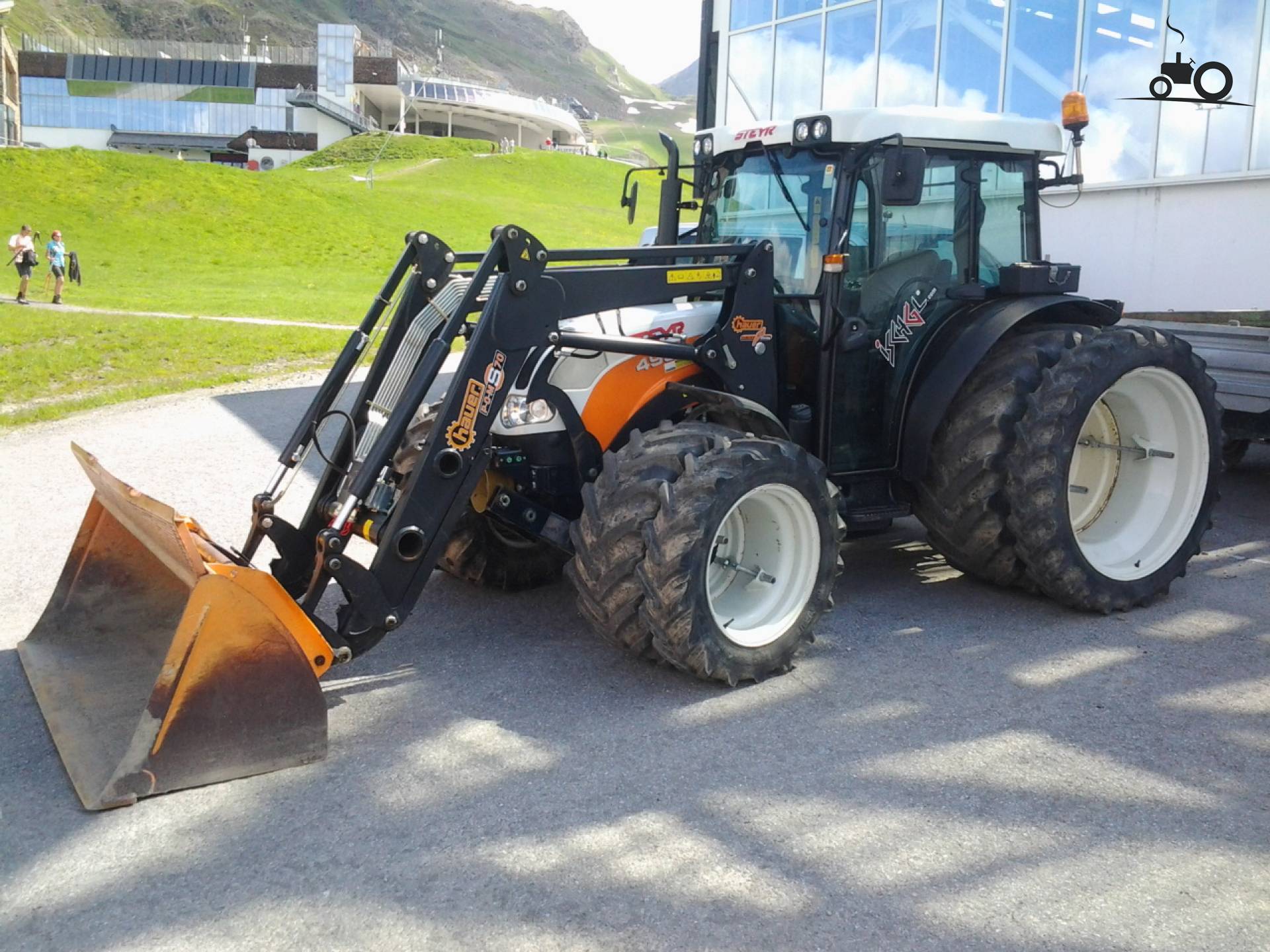

Steyr 495 Kompakt
Steyr 495 Kompakt — Kompakt Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
3050 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Iveco 4.5L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine67.1 kWReference
Iveco NEFReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIReference
Power67.1 kWReference
Rated RPM2300Reference
Torque365.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
24-speedReference
TransmissionSTEYR Synchro ShiftReference
Gears12 forward and reverseReference
TransmissionSTEYR Power-2Reference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Valves4Reference
Total flow46.9 lpmReference
Total flow56.8 lpmReference
Rear lift2669 kgReference
Front lift1549 kgReference
Rear PTO Type540/540E/1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase218 cmReference
Weight3050 kgReference
Front tire405/70R20Reference
Rear tire540/65R30Reference
Ag front405/70R20Reference
Ag rear540/65R30Reference
Length356 cmReference
Width229 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
