Tractor · 1967Unverified

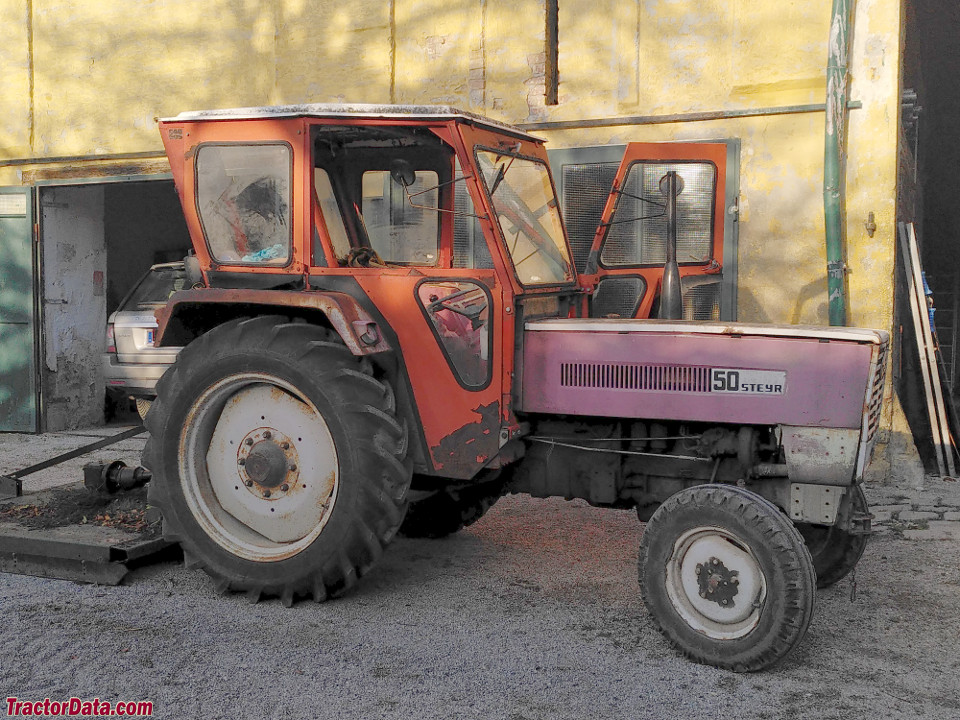

Steyr 50
Steyr 50 — Plus Series · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
2180 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Two- or four-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
50Afour-wheel driveReference
Engine
Steyr 3.0L 4-cyl dieselReference
Fuel tank83.3 LReference
Engine37.3 kWReference
Steyr WD 407.40Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke98 x 100 mmReference
Power37.3 kWReference
Rated RPM2400Reference
Torque189.8 NmReference
Torque RPM1450Reference
Transmission
8-speedReference
TransmissiongearReference
Gears8 forward and reverseReference
PTO & Hydraulics
Total flow32.2 lpmReference
Rear TypeII/IReference
Rear lift1850 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase212 cmReference
Weight2180 kgReference
Front tire6.00-16Reference
Rear tire12.4-32Reference
Ag front6.00-16Reference
Ag rear12.4-32Reference
Ag front7.50-18Reference
Length351 cmReference
Width167 cmReference
Height164 cmReference
Max weight3999 kgReference
Front tread135 cmReference
Rear tread135 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
