Tractor · 1972Unverified

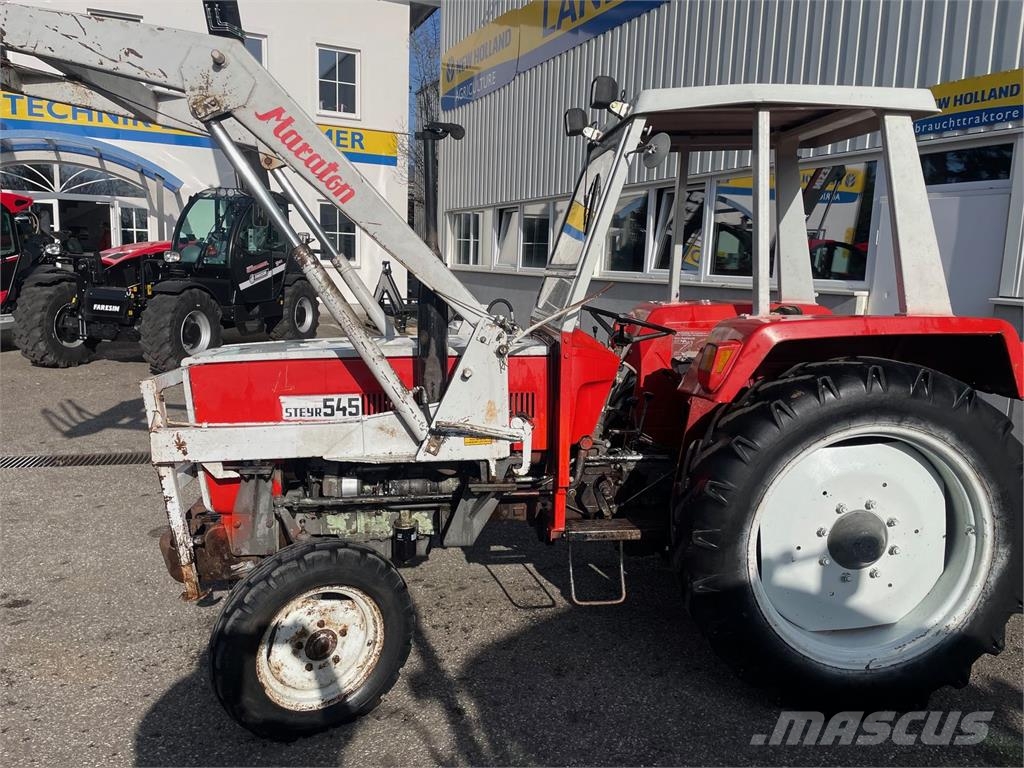

Steyr 545
Steyr 545 — Utility tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
2150 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
SteeringmechanicalReference
Engine
Steyr 2.4L 3-cyl dieselReference
Fuel tank62.1 LReference
Engine33.6 kWReference
Steyr WD 308.45Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke100 x 100 mmReference
Power33.6 kWReference
Rated RPM2400Reference
Torque155.9 NmReference
Torque RPM1600Reference
Transmission
8-speedReference
TransmissiongearReference
Gears8 forward and 6 reverseReference
PTO & Hydraulics
Total flow22.0 lpmReference
Rear lift1850 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase195 cmReference
Weight2150 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Ag front6.50-20Reference
Length332 cmReference
Height202 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
