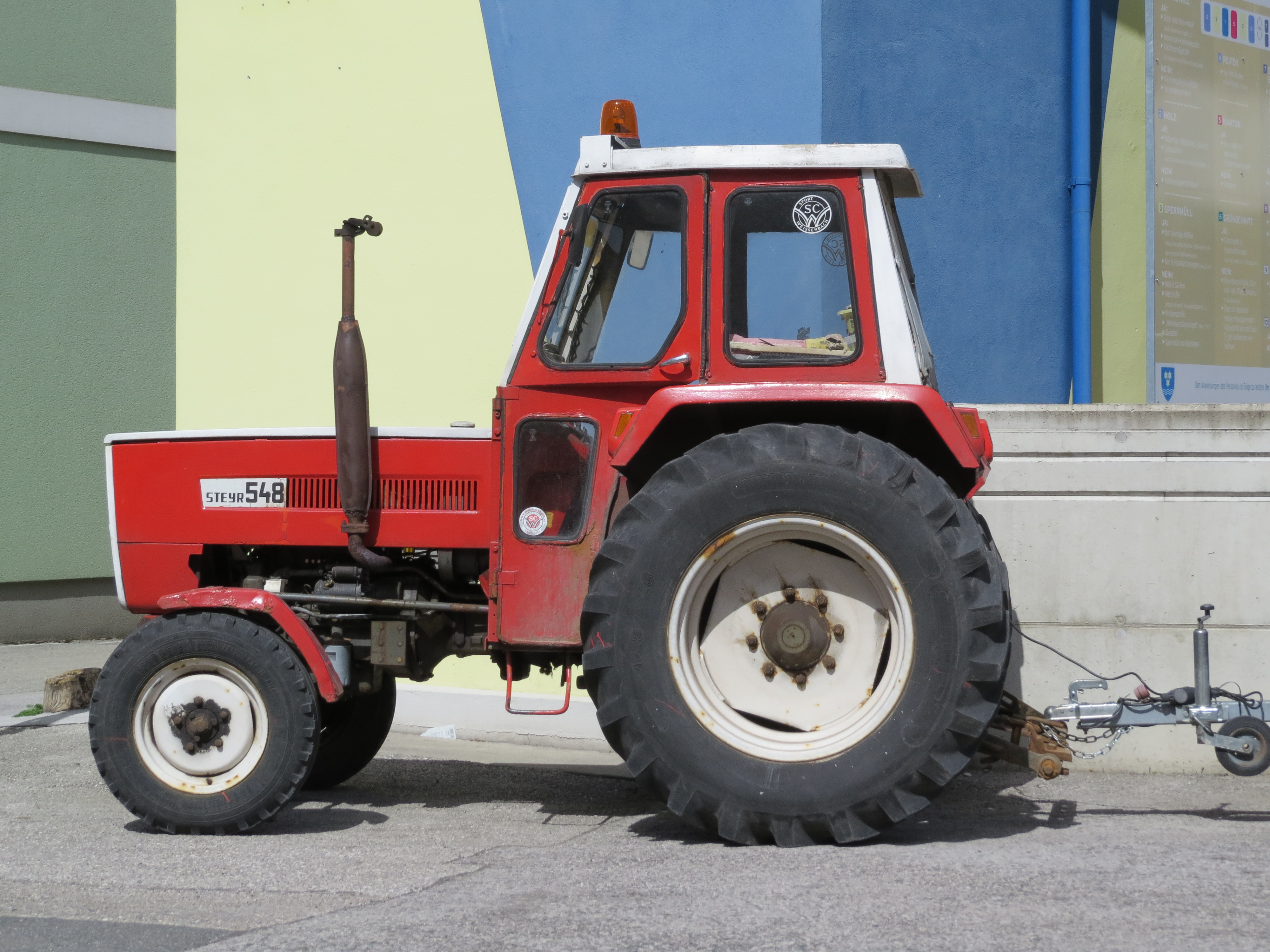

The Steyr 548 is a tractor with a rated power output of 47 hp, situated at the lower power end of its class. It was manufactured from 1977 to 1980. The tractor is equipped with a 3-cylinder diesel engine and mechanical front-wheel drive with a hydrostatic transmission. Its listed operating weight is 2230 kg, and it is suitable for operations spanning up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
2230 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
47 hp
Recorded weight
2230 kg
Transmissions
16-speed
Production years
1977-1980
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
2.4L 3-cyl dieselReference
Fuel tank62.1 LReference
Engine35.0 kWReference
WD 308.45Reference
dieselReference
3-cylinderReference
Displacement2.4 LReference
Bore/Stroke100 x 100 mmReference
Power35.0 kWReference
Rated RPM2400Reference
Torque155.9 NmReference
Torque RPM1500Reference
Transmission
16-speedReference
TransmissionsynchroReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Total flow22.7 lpmReference
Rear lift1850 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase195 cmReference
Weight2230 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Ag front6.50-20Reference
Length332 cmReference
Height202 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
