Tractor · 2003Unverified

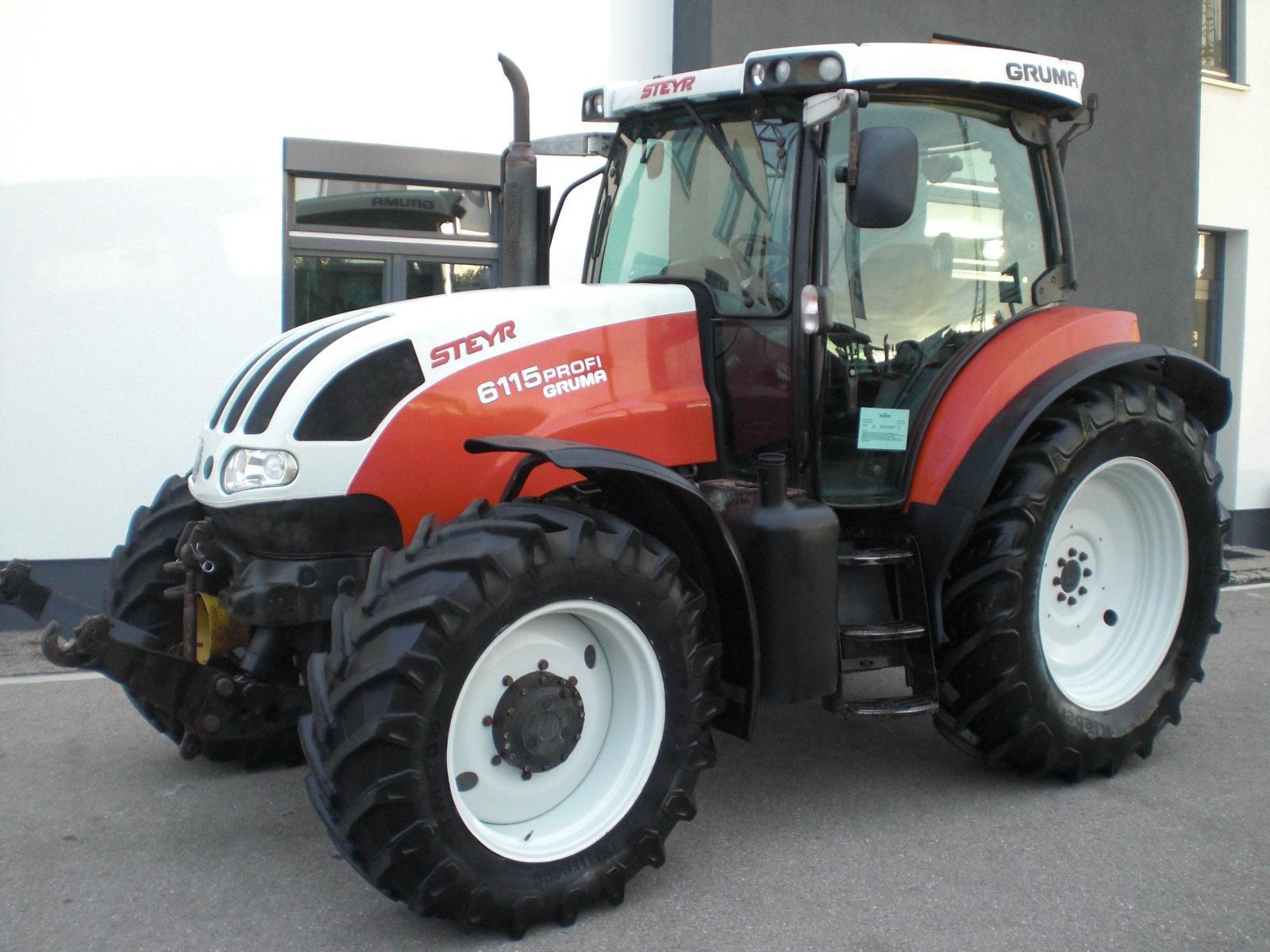

Steyr 6115 Profi
Steyr 6115 Profi — Profi Series · 116 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
116 hp
Weight
5347 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
SK3 cab standard with air-conditioning.Reference
Engine
Iveco 6.7L 6-cyl dieselReference
Fuel tank219.9 LReference
Engine86.5 kWReference
IvecoReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
Power86.5 kWReference
Rated RPM2200Reference
Torque520.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
48-speedReference
16-speedReference
TransmissionSTEYR Power-2Reference
Gears24 forward and reverseReference
Gears48 forward and reverseReference
TransmissionSTEYR Power-8Reference
Gears16 forward and reverseReference
PTO & Hydraulics
Pressure210.0 barReference
Rear valves4Reference
Front valves2Reference
Total flow79.9 lpmReference
Total flow113.0 lpmReference
Rear TypeIIReference
Rear lift7865 kgReference
Front lift3118 kgReference
Rear PTO Type540/540E/1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase266 cmReference
Weight5347 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length453 cmReference
Width191 cmReference
Height292 cmReference
Ground clearance46 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
