Tractor · 2007Unverified

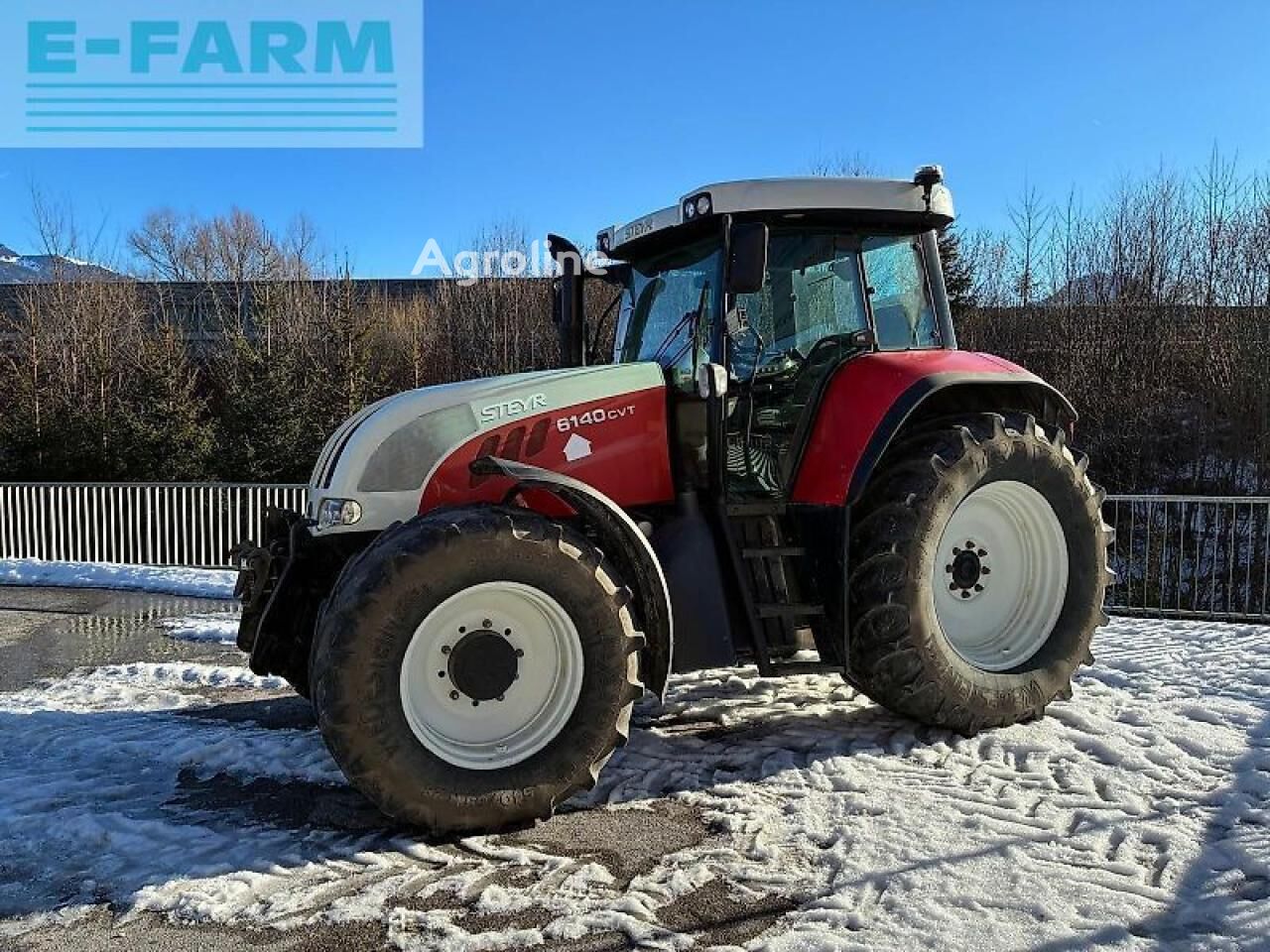

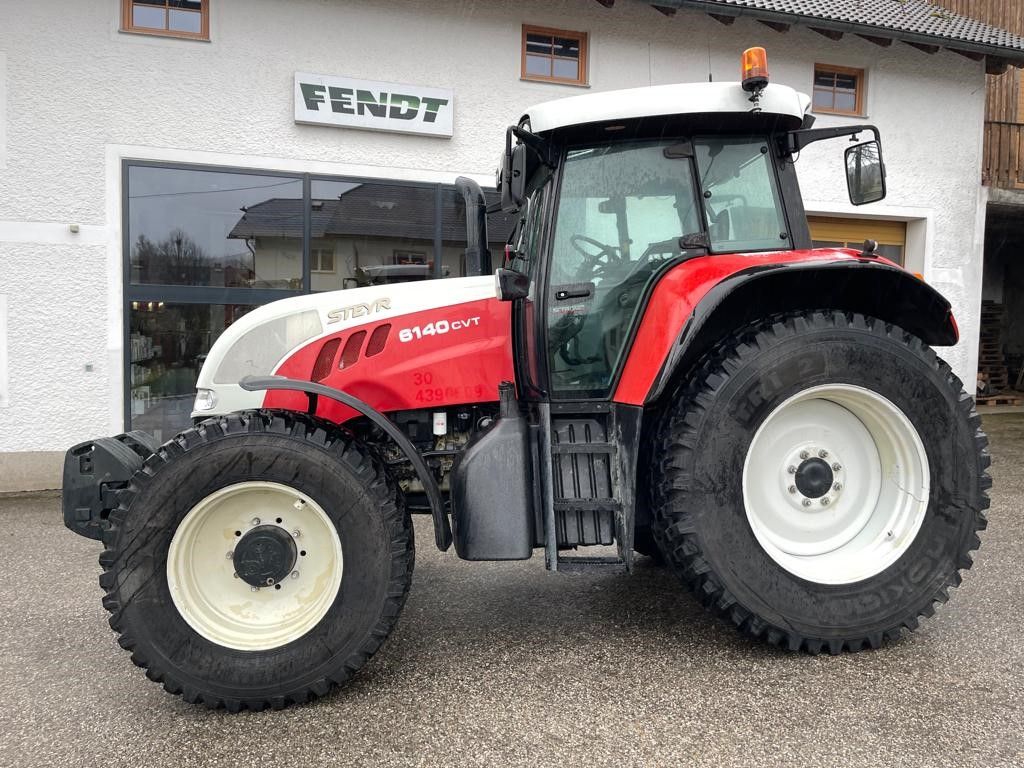

Steyr 6140 CVT

Name: Steyr 6140 CVT
Brand: Steyr

Steyr 6140 CVT — Utility tractor · 141 hp. Reference specifications; pending source verification.

The Steyr 6140 CVT is a tractor rated at approximately 141 hp, placing it at the more powerful end of its class. Production of the 6140 CVT took place between 2007 and 2012. The model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. It has a listed operating weight of 6390 kg, suitable for operations of up to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

141 hp

Weight

6390 kg

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

141 hp

Recorded weight

6390 kg

Transmissions

continuously variable transmission (CVT)

Production years

2007-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSteyrReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Steyr luxury cab standard with air-conditioning.Reference

Engine

Sisu 6.6L 6-cyl dieselReference

Fuel tank310.0 LReference

Engine (gross)105.1 kWReference

Engine (max)121.5 kWReference

SisuReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

Rated Power (gross)105.1 kWReference

Maximum Power (gross)121.5 kWReference

Rated RPM2100Reference

Operating RPM1800-2100Reference

Torque585.1 NmReference

Torque RPM1400Reference

Starter typenegativeReference

Transmission

continuously variable transmission (CVT)Reference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Valves8 (max)Reference

Pump flow104.8 lpmReference

Rear TypeIII/IIReference

Rear lift9902 kgReference

Front lift4001 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000/1000E (1.375)Reference

Engine RPM540@1878Reference

Engine RPM540E@1608Reference

Engine RPM1000@1869Reference

Engine RPM1000E@1600Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase280 cmReference

Weight6390 kgReference

Front tire540/65Reference

Rear tire650/65Reference

Ag front540/65 R28Reference

Ag rear650/65 R38Reference

Length477 cmReference

Width255 cmReference

Height304 cmReference

Shipping weight6390 kgReference

Max weight10000 kgReference

Front tread189 cmReference

Rear tread186 cmReference

Electrical

GroundelectricReference

Charging systemalternatorReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
