Tractor · 2016Unverified

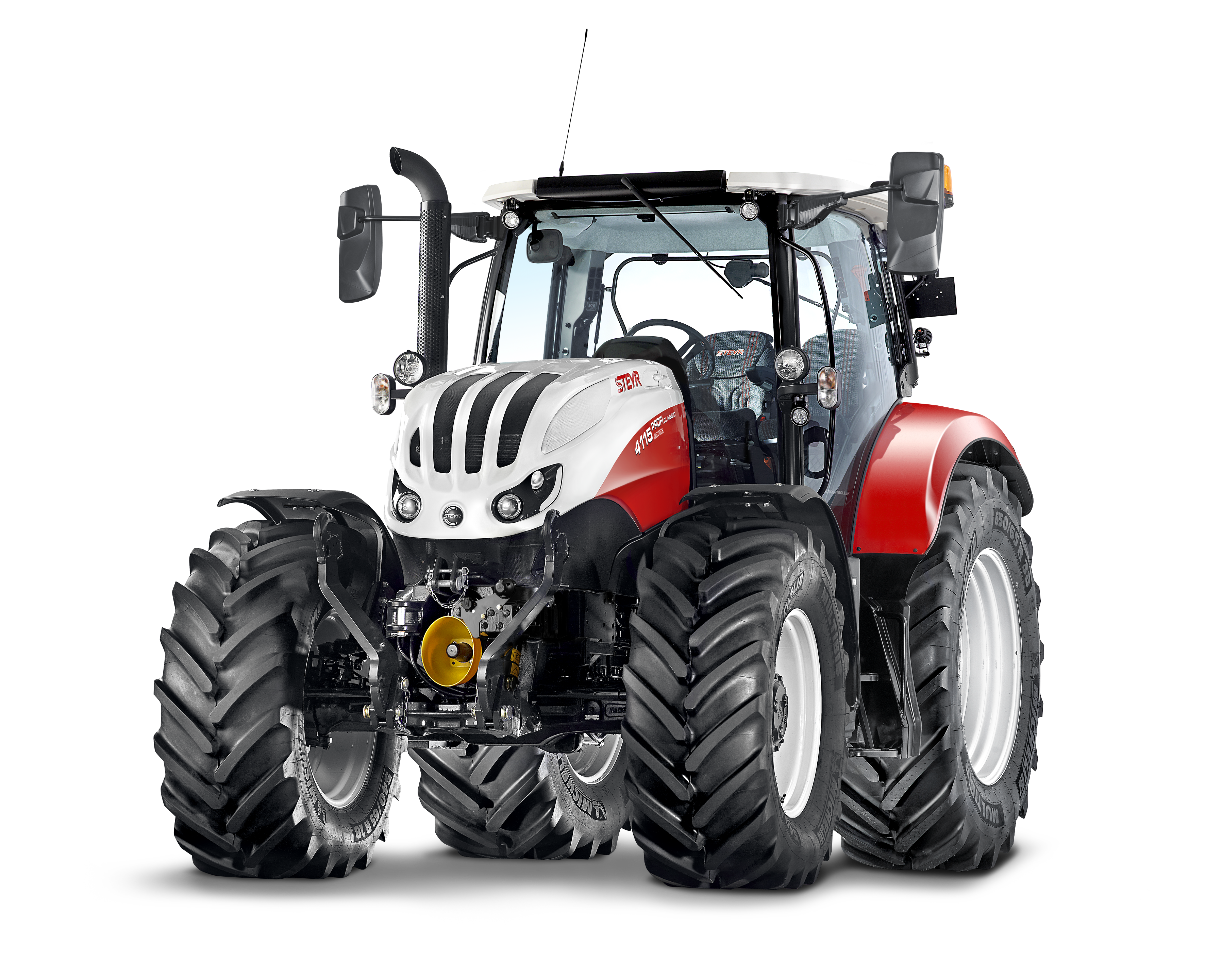

Steyr 6145 Profi Classic
Steyr 6145 Profi Classic — Utility tractor · 145 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
145 hp
Weight
5019 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakespneumaticReference
Comfort Low Cab standard with air-conditioning.Reference
Variants
6145 ProfipremiumReference
6145 ClassiceconomyReference
Engine
Iveco 6.7L 6-cyl dieselReference
Fuel tank198.0 LReference
Fuel tank230.1 LReference
Exhaust fluid (DEF)39.4 LReference
Engine (gross)108.1 kWReference
Engine (max)130.5 kWReference
IvecoReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsStage IVReference
Rated Power (gross)108.1 kWReference
Maximum Power (gross)130.5 kWReference
Rated RPM2200Reference
Torque RPM1500Reference
Starter typenegativeReference
Transmission
16-speed four-speed power shiftReference
32-speed creeperReference
17-speedReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
TypecreeperReference
Gears32 forward and reverseReference
Gears17 forward and 16 reverseReference
PTO & Hydraulics
Typeopen centerReference
Typeclosed center load-sensingReference
Rear valves4 (max)Reference
Mid valves2 (max)Reference
Pump flow79.9 lpmReference
Pump flow113.0 lpmReference
Rear TypeIII/IIReference
Rear lift7115 kgReference
Rear lift7864 kgReference
Front lift2800 kgReference
Front lift3099 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540E/1000:1000EReference
Engine RPM540@1969Reference
Engine RPM540E@1546Reference
Engine RPM1000@1893Reference
Engine RPM1000E@1621Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@1895Reference
Dimensions
Wheelbase264 cmReference
Wheelbase268 cmReference
Weight5019 kgReference
Front tire440/65R28Reference
Rear tire540/65R38Reference
Ag front440/65R28Reference
Ag rear540/65R38Reference
Length513 cmReference
Length520 cmReference
Width246 cmReference
Height299 cmReference
Shipping weight5019 kgReference
Max weight9500 kgReference
Front tread157 to 225 cmReference
Rear tread143 to 213 cmReference
Electrical
GroundelectricReference
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
