Tractor · 2005Unverified

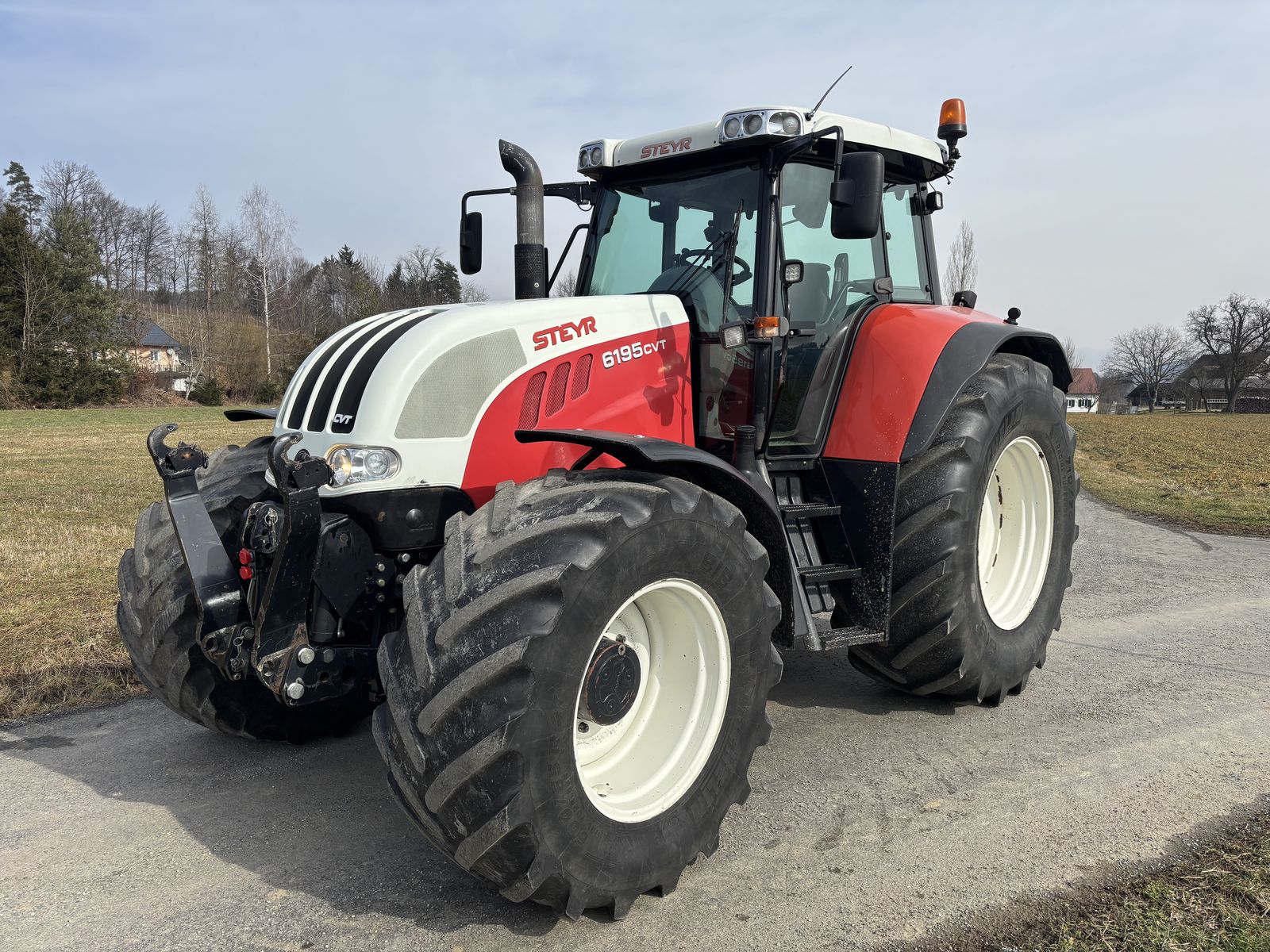

Steyr 6195 CVT

Name: Steyr 6195 CVT
Brand: Steyr

Steyr 6195 CVT — Model year 2005-20072007-2009 · 197 hp. Reference specifications; pending source verification.

The Steyr 6195 CVT is a high-powered tractor model, rated at 197 hp, positioning it within the more powerful machines in its class. Manufactured from 2005 to 2009, this model is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system via a continuously variable transmission. The listed weight is 6772 kg, making it suitable for tasks requiring a capacity of approximately 600–1,500 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

197 hp

Weight

6772 kg

Catalogue coverage

Variants represented

Richest spec table

43 rows

Recorded power

197 hp

Recorded weight

6772 kg

Transmissions

continuously variable transmission (CVT)

Production years

2005-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSteyrReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

STEYR luxury cabReference

Engine

Sisu 6.6L 6-cyl dieselReference

Fuel tank310.0 LReference

Engine146.9 kWReference

SisuReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

Power146.9 kWReference

Rated RPM2100Reference

Torque791.9 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

continuously variable transmission (CVT)Reference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Pressure205.0 barReference

Valves5Reference

Total flow129.8 lpmReference

Rear TypeIII/IIReference

Rear lift9902 kgReference

Front lift4001 kgReference

Rear PTO Type540/540E/1000/1000EReference

Front PTO Type1000Reference

Dimensions

Wheelbase283 cmReference

Weight6772 kgReference

Front tire540/65R28Reference

Rear tire650/65R38Reference

Ag front540/65R28Reference

Ag rear650/65R38Reference

Length476 cmReference

Width248 cmReference

Height299 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
