Tractor · 2015Unverified

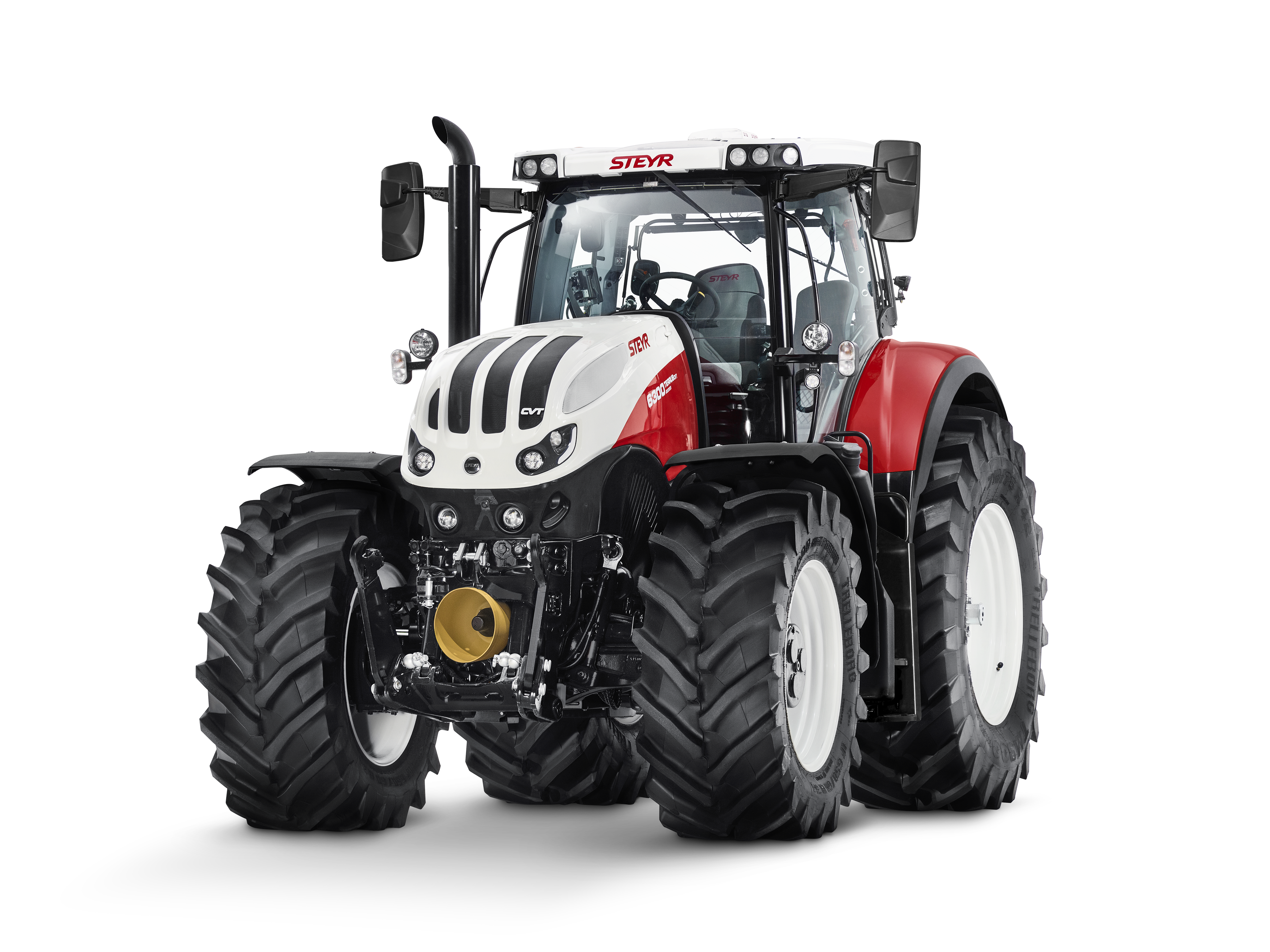

Steyr 6270 Terrus

Name: Steyr 6270 Terrus
Brand: Steyr

Steyr 6270 Terrus — Terrus Series · 271 hp. Reference specifications; pending source verification.

The Steyr 6270 Terrus is a tractor with an engine rating of approximately 271 hp, categorising it as a powerful model within its class. The 6270 Terrus was in production from 2015. It features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. The tractor's operating weight is specified at 10500 kg, and it is suitable for operations on areas of 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

271 hp

Weight

10500 kg

Catalogue coverage

Variants represented

Richest spec table

64 rows

Recorded power

271 hp

Recorded weight

10500 kg

Production years

2015-2015

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSteyrReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Deluxe cab standard with air-conditioning. Optional Luxury cab with active suspension.Reference

Engine

Iveco 6.7L 6-cyl dieselReference

Fuel tank629.8 LReference

Exhaust fluid (DEF)96.1 LReference

Engine (gross)202.1 kWReference

Engine (max)214.8 kWReference

Iveco NEFReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsStage IVReference

Rated Power (gross)202.1 kWReference

Maximum Power (gross)214.8 kWReference

Rated RPM2100Reference

Torque1194.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

continuously variable transmissionReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Typeload-sensingReference

Pressure215.0 barReference

Rear valves5 (max)Reference

Mid valves3 (max)Reference

Pump flow165.0 lpmReference

Pump flow222.9 lpmReference

Rear TypeIII/IVNReference

Rear lift11058 kgReference

Front lift5821 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000/1000EReference

Engine RPM540@1930Reference

Engine RPM540E@1598Reference

Engine RPM1000@1853Reference

Engine RPM1000E@1583Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@1886Reference

Dimensions

Wheelbase299 cmReference

Weight10500 kgReference

Front tire650/60R34Reference

Rear tire710/75R42Reference

Standard tires (ag)Front: 650/60R34. Rear: 710/75R42Reference

Length569 cmReference

Width253 cmReference

Height (cab)326 cmReference

Shipping weight10500 kgReference

Max weight16000 kgReference

Flange rear axleReference

Bar rear axleReference

Front tread185 to 225 cmReference

Rear tread183 to 205 cmReference

Rear tread183 to 186 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
