Tractor · 2015Unverified

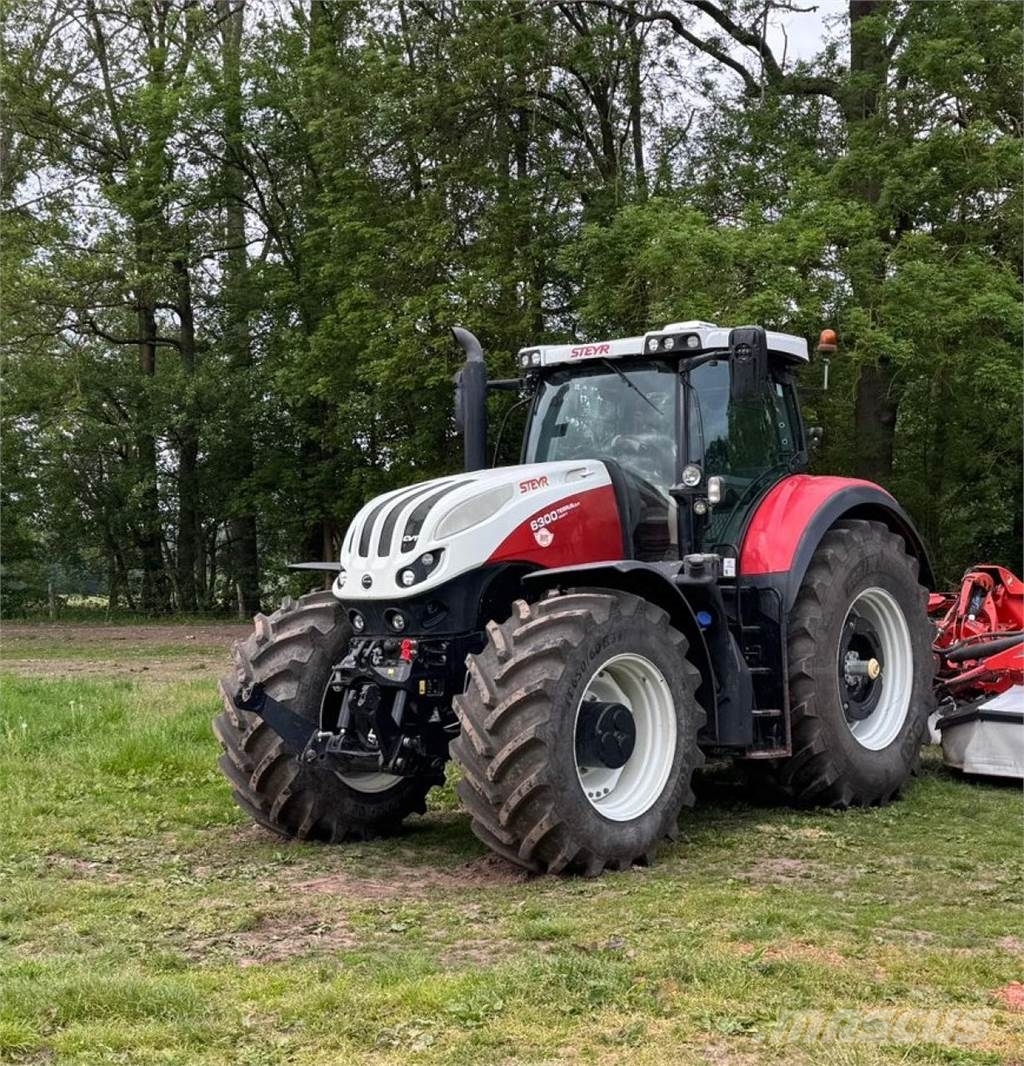

Steyr 6300 Terrus
Steyr 6300 Terrus — Terrus Series · 300 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
300 hp
Weight
10500 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Deluxe cab standard with air-conditioning. Optional Luxury cab with active suspension.Reference
Engine
Iveco 6.7L 6-cyl dieselReference
Fuel tank629.8 LReference
Exhaust fluid (DEF)96.1 LReference
Engine (gross)223.7 kWReference
Engine (max)233.4 kWReference
Iveco NEFReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsStage IVReference
Rated Power (gross)223.7 kWReference
Maximum Power (gross)233.4 kWReference
Rated RPM2100Reference
Torque1282.2 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously variable transmissionReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeload-sensingReference
Pressure215.0 barReference
Rear valves5 (max)Reference
Mid valves3 (max)Reference
Pump flow165.0 lpmReference
Pump flow222.9 lpmReference
Rear TypeIII/IVNReference
Rear lift11058 kgReference
Front lift5821 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000/1000EReference
Engine RPM540@1930Reference
Engine RPM540E@1598Reference
Engine RPM1000@1853Reference
Engine RPM1000E@1583Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@1886Reference
Dimensions
Wheelbase299 cmReference
Weight10500 kgReference
Front tire650/60R34Reference
Rear tire710/75R42Reference
Standard tires (ag)Front: 650/60R34. Rear: 710/75R42Reference
Length569 cmReference
Width253 cmReference
Height (cab)326 cmReference
Shipping weight10500 kgReference
Max weight16000 kgReference
Flange rear axleReference
Bar rear axleReference
Front tread185 to 225 cmReference
Rear tread183 to 205 cmReference
Rear tread183 to 186 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
