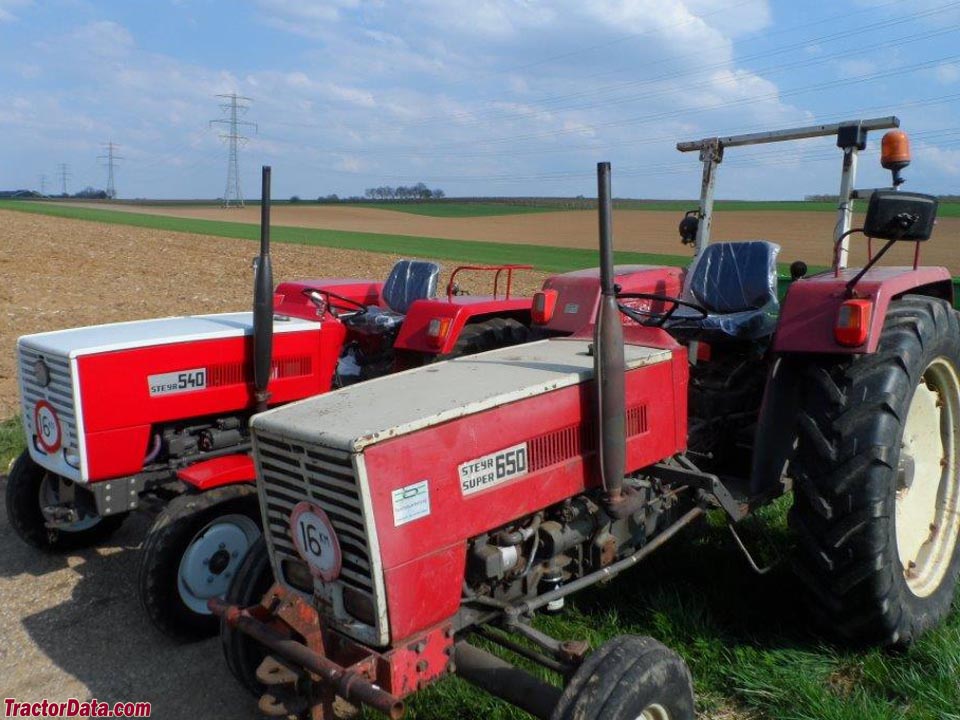

The Steyr 650 is a compact tractor with a 50 hp rating, placing it in a smaller class of machines. It was produced from 1971 to 1977. The tractor features a 4-cylinder diesel liquid-cooled engine, powering four-wheel drive through a 16-speed gearbox. Its listed weight is 2430 kg, suitable for tasks involving approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
2430 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
50 hp
Recorded weight
2430 kg
Transmissions
16-speed
Production years
1971-1977
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Two- or four-wheel driveReference
SteeringmechanicalReference
Open operator station. Cab optional.Reference
Engine
Steyr 3.1L 4-cyl dieselReference
Fuel tank83.3 LReference
Engine37.3 kWReference
Steyr WD 408.81Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke100 x 100 mmReference
Power37.3 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Torque191.2 NmReference
Torque RPM1500Reference
Transmission
16-speedReference
TransmissionsynchroReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Total flow32.2 lpmReference
Rear lift2400 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase213 cmReference
Weight2430 kgReference
Front tire6.00-16Reference
Rear tire12.4-32Reference
Ag front6.00-16Reference
Ag rear12.4-32Reference
Ag front7.50-18Reference
Length351 cmReference
Height164 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
