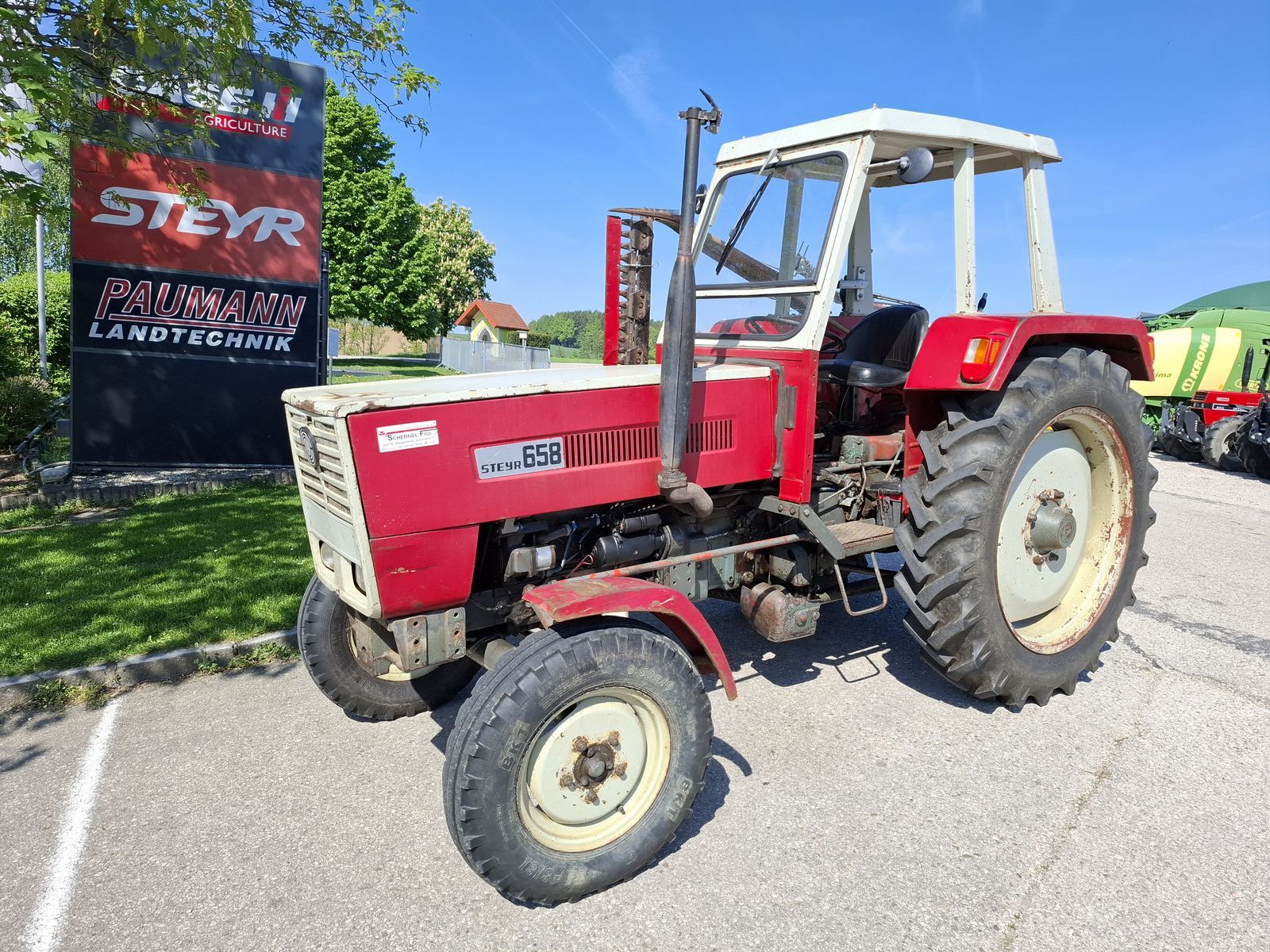

The Steyr 658 is a compact tractor model, rated at 55 horsepower. It was manufactured from 1977 to 1979. The tractor features a 4-cylinder diesel engine, coupled with a mechanical front-wheel drive and hydrostatic transmission. Its listed weight is 2655 kilograms, suitable for tasks involving approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
2655 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
55 hp
Recorded weight
2655 kg
Transmissions
16-speed
Production years
1977-1979
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
3.1L 4-cyl dieselReference
Fuel tank83.3 LReference
Engine41.0 kWReference
WD 408.42Reference
dieselReference
4-cylinderReference
Displacement3.1 LReference
Bore/Stroke100 x 100 mmReference
Power41.0 kWReference
Rated RPM2200Reference
Torque191.2 NmReference
Torque RPM1500Reference
Transmission
16-speedReference
TransmissionsynchroReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Total flow34.1 lpmReference
Rear lift2400 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase213 cmReference
Weight2655 kgReference
Front tire6.00-16Reference
Rear tire12.4-32Reference
Ag front6.00-16Reference
Ag rear12.4-32Reference
Ag front7.50-18Reference
Length355 cmReference
Height214 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
