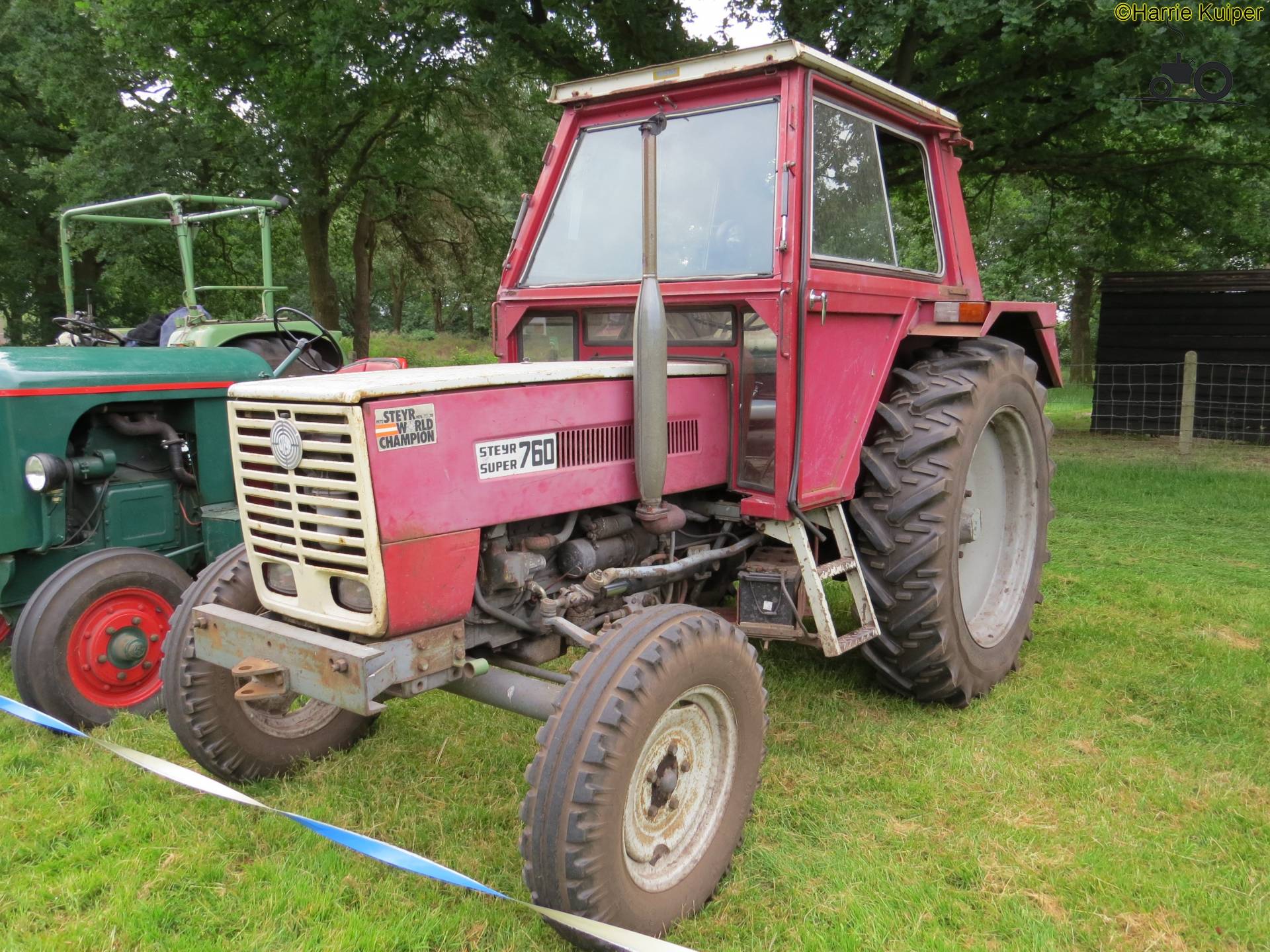

The Steyr 760 is a tractor model with a rated power of 60 hp, categorising it as a lighter model in its class. Manufactured between 1971 and 1976, it features a 4-cylinder diesel liquid-cooled engine, coupled with a mechanical front-wheel drive system and a 16-speed gearbox. The operating weight of the Steyr 760 is listed at 2580 kg, with a suitable operating capacity of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
2580 kg
Catalogue coverage
Variants represented
2
Richest spec table
33 rows
Recorded power
60 hp
Recorded weight
2580 kg
Transmissions
16-speed
Production years
1971-1976
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
SteeringmechanicalReference
Engine
Steyr 3.1L 4-cyl dieselReference
Fuel tank83.3 LReference
Engine44.7 kWReference
Steyr WD 408.40Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke100 x 100 mmReference
Power44.7 kWReference
Rated RPM2200Reference
Torque215.6 NmReference
Torque RPM1600Reference
Transmission
16-speedReference
TransmissionsynchroReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Total flow32.2 lpmReference
Rear lift2400 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase213 cmReference
Weight2580 kgReference
Front tire6.50-20Reference
Rear tire13.6-36Reference
Ag front6.50-20Reference
Ag rear13.6-36Reference
Ag front8.3-24Reference
Length354 cmReference
Height221 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
