Tractor · 1977Unverified

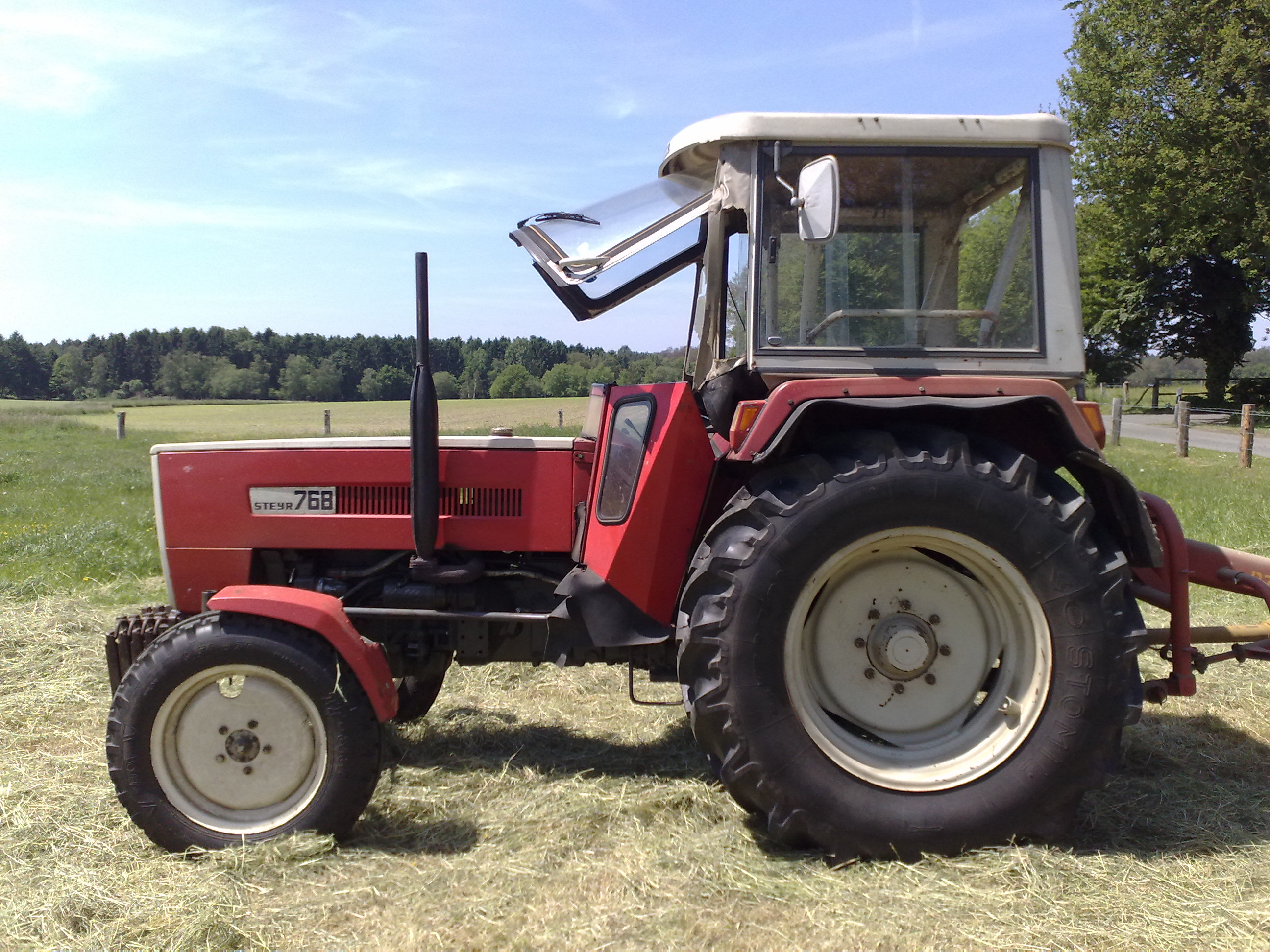

Steyr 768
Steyr 768 · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
2757 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
3.1L 4-cyl dieselReference
Fuel tank83.3 LReference
Engine47.7 kWReference
WD 408.43Reference
dieselReference
4-cylinderReference
Displacement3.1 LReference
Bore/Stroke100 x 100 mmReference
Power47.7 kWReference
Rated RPM2200Reference
Torque215.6 NmReference
Torque RPM1600Reference
Transmission
16-speedReference
TransmissionsynchroReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Total flow34.1 lpmReference
Rear lift2400 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase213 cmReference
Weight2757 kgReference
Front tire6.50-20Reference
Rear tire13.6-36Reference
Ag front6.50-20Reference
Ag rear13.6-36Reference
Ag front8.3-24Reference
Length354 cmReference
Height221 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
