Tractor · 1979Unverified

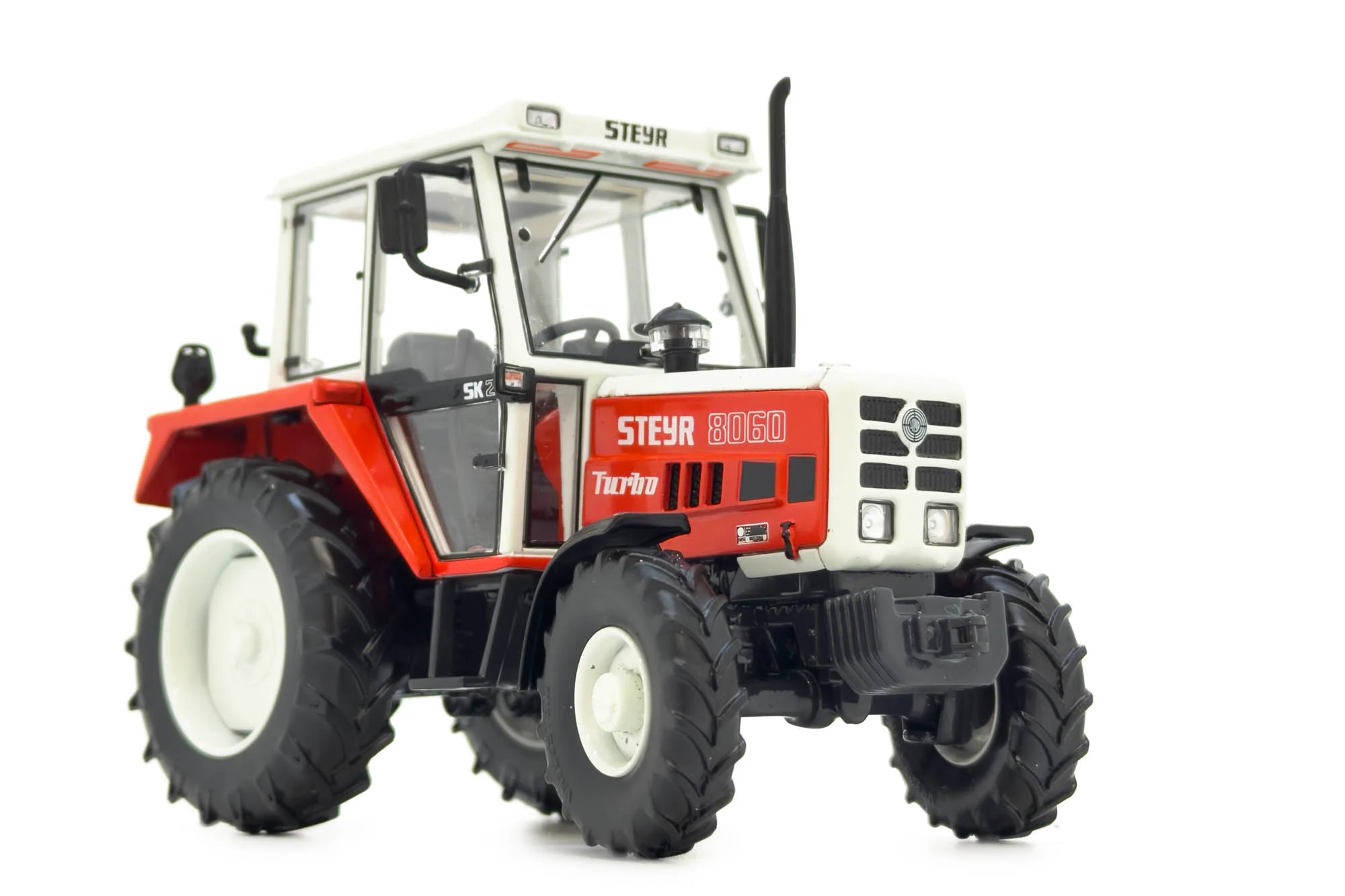

Steyr 8060
Steyr 8060 — Model year 1979-19871987-1992 · 48 hp. Reference specifications; pending source verification.
The Steyr 8060 is a tractor with a rated power output of 48 horsepower, positioning it at the lighter end of its class. It was produced from 1979 to 1992, featuring a 3-cylinder diesel engine coupled with four-wheel drive and a hydrostatic transmission. The tractor's operating weight is listed as 2890 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
2890 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
48 hp
Recorded weight
2890 kg
Transmissions
16-speed synchronized
Production years
1979-1992
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Engine
2.6L 3-cyl dieselReference
Fuel tank60.2 LReference
Engine35.8 kWReference
WD 311.41Reference
dieselReference
3-cylinderReference
Displacement2.6 LReference
Bore/Stroke100 x 110 mmReference
Power35.8 kWReference
Rated RPM2400Reference
Torque160.0 NmReference
Torque RPM1600Reference
Transmission
16-speed synchronizedReference
TypesynchronizedReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Total flow34.8 lpmReference
Rear lift2200 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase205 cmReference
Weight2890 kgReference
Front tire6.50-16Reference
Rear tire12.4-32Reference
Ag front6.50-16Reference
Ag rear12.4-32Reference
Ag front10.5-18Reference
Length350 cmReference
Height246 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
