Tractor · 1983Unverified

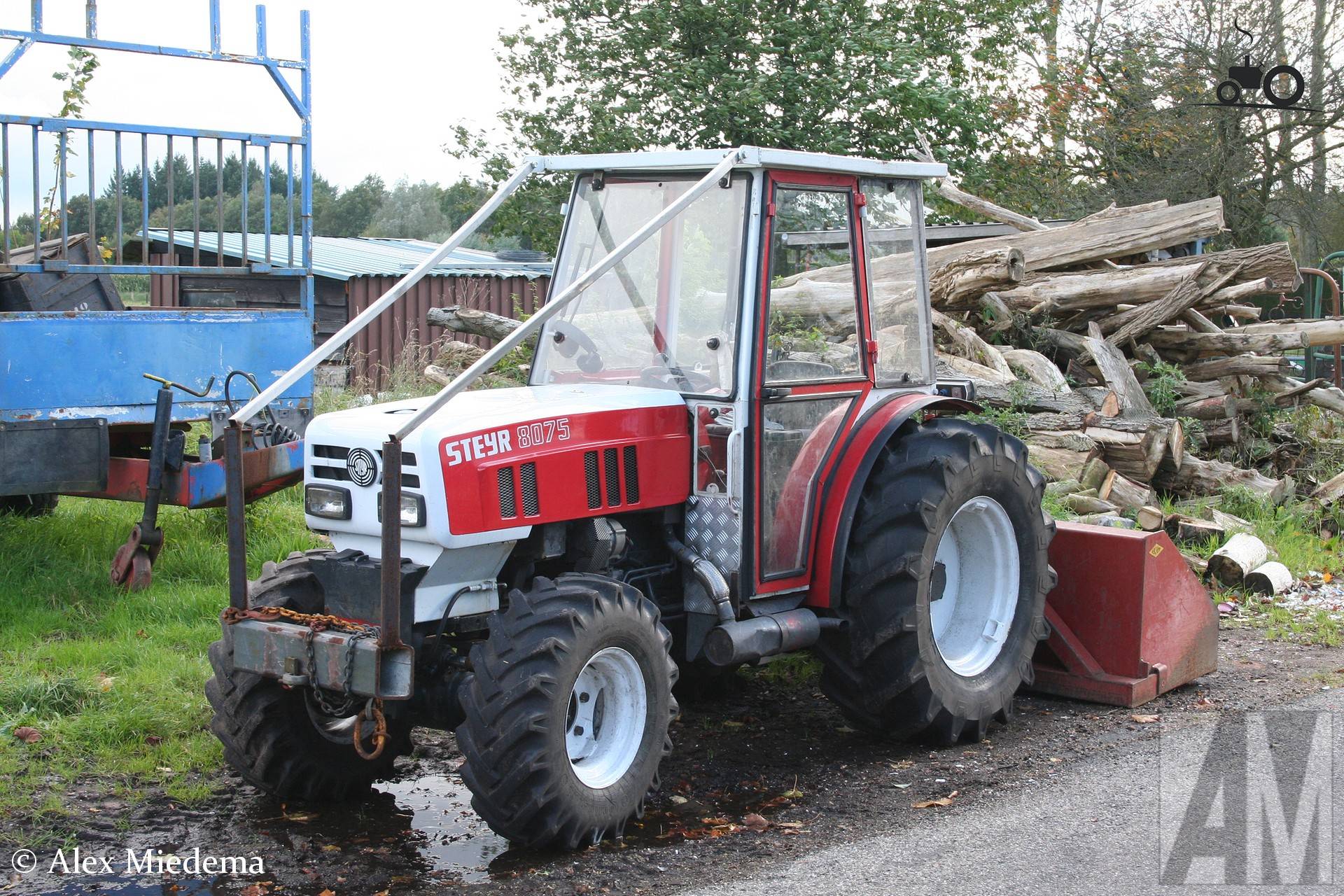

Steyr 8075
Steyr 8075 · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
2505 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
3.5L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine47.7 kWReference
WD411.45Reference
dieselReference
4-cylinderReference
Displacement3.5 LReference
Bore/Stroke100 x 110 mmReference
Power47.7 kWReference
Rated RPM2400Reference
Torque225.1 NmReference
Torque RPM1600Reference
Transmission
8-speedReference
16-speedReference
TransmissionsynchroReference
Gears8 forward and 4 reverseReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Total flow34.8 lpmReference
Total flow42.0 lpmReference
Rear lift2600 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase214 cmReference
Weight2505 kgReference
Front tire7.50-18Reference
Rear tire13.6-36Reference
Ag front7.50-18Reference
Ag rear13.6-36Reference
Ag front11.2-24Reference
Length370 cmReference
Height230 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
