Tractor · 1983Unverified

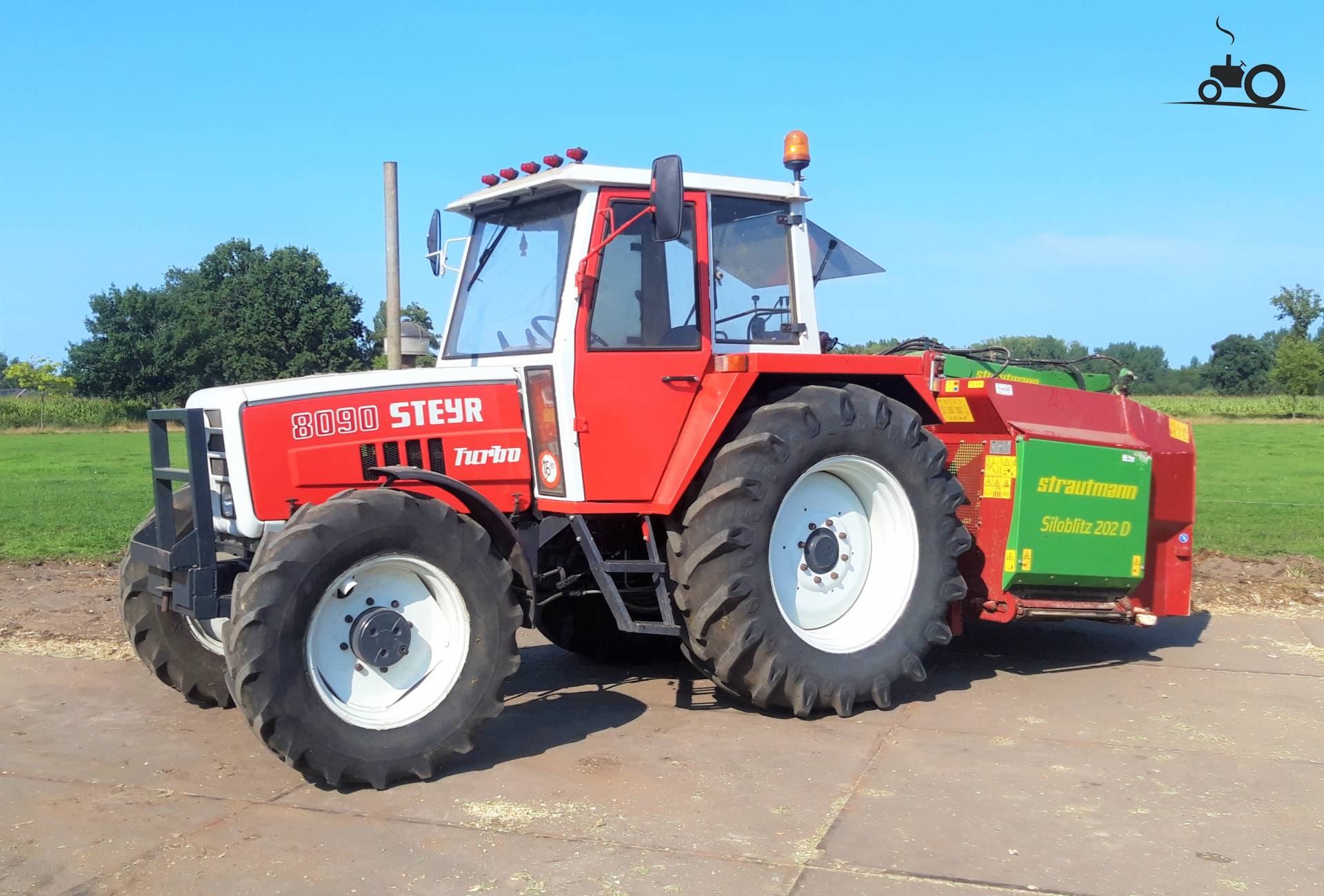

Steyr 8090
Steyr 8090 · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Weight
6945 to 7650 pounds
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (8090A)Reference
Steeringhydrostatic powerReference
Drum brakesReference
Trailer brakesair brakes optionalReference
Steyr SK2 cab. Twin Cab optional with upgraded interior and extra size.Reference
Variants
80902WDReference
8090A4WDReference
Engine
Steyr 3.5L 4-cyl dieselReference
Fuel tank96.1 LReference
Engine59.7 kWReference
Steyr WD 411.88Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke100 x 110 mmReference
Power59.7 kWReference
Rated RPM2200Reference
Torque313.2 NmReference
Torque RPM1600Reference
Transmission
16-speed synchronizedReference
16-speed partial power shiftReference
32-speedReference
TypesynchronizedReference
Gears16 forward and 8 reverseReference
Four gears (1-4) in three ranges (L/S and reverse) with fast and slow groups.Reference
TransmissionSteyr-MaticReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Gears32 forward and 16 reverseReference
PTO & Hydraulics
PTO (claimed)57.8 kWReference
Pressure175.0 barReference
Valvesup to 3Reference
Total flow39.0 lpmReference
Rear TypeII/IReference
Rear lift4507 kgReference
Front lift1254 kgReference
Rear PTO Type540/1000Reference
Rear PTO Type540/750/1000/1250Reference
Mid PTO Type1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase219 cmReference
Wheelbase228 cmReference
Weight6945 to 7650 poundsReference
Front tire9.00-16Reference
Rear tire16.9R34Reference
Ag front9.00-16 (2WD)Reference
Ag front12.4-24 (4WD)Reference
Ag rear16.9R34Reference
Length377 cmReference
Length389 cmReference
Width197 cmReference
Clearance (front axle)48 cmReference
Clearance (front axle)41 cmReference
Front tread144 to 214 cmReference
Front tread161 cmReference
Rear tread152 to 168 cmReference
3150 kgReference
3220 kgReference
3399 kgReference
3470 kgReference
Capacities
Max capacity4998 kgReference
Max capacity5502 kgReference
Steyr 8090 Height
Cab254 cmReference
Cab273 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
