Tractor · 1984Unverified

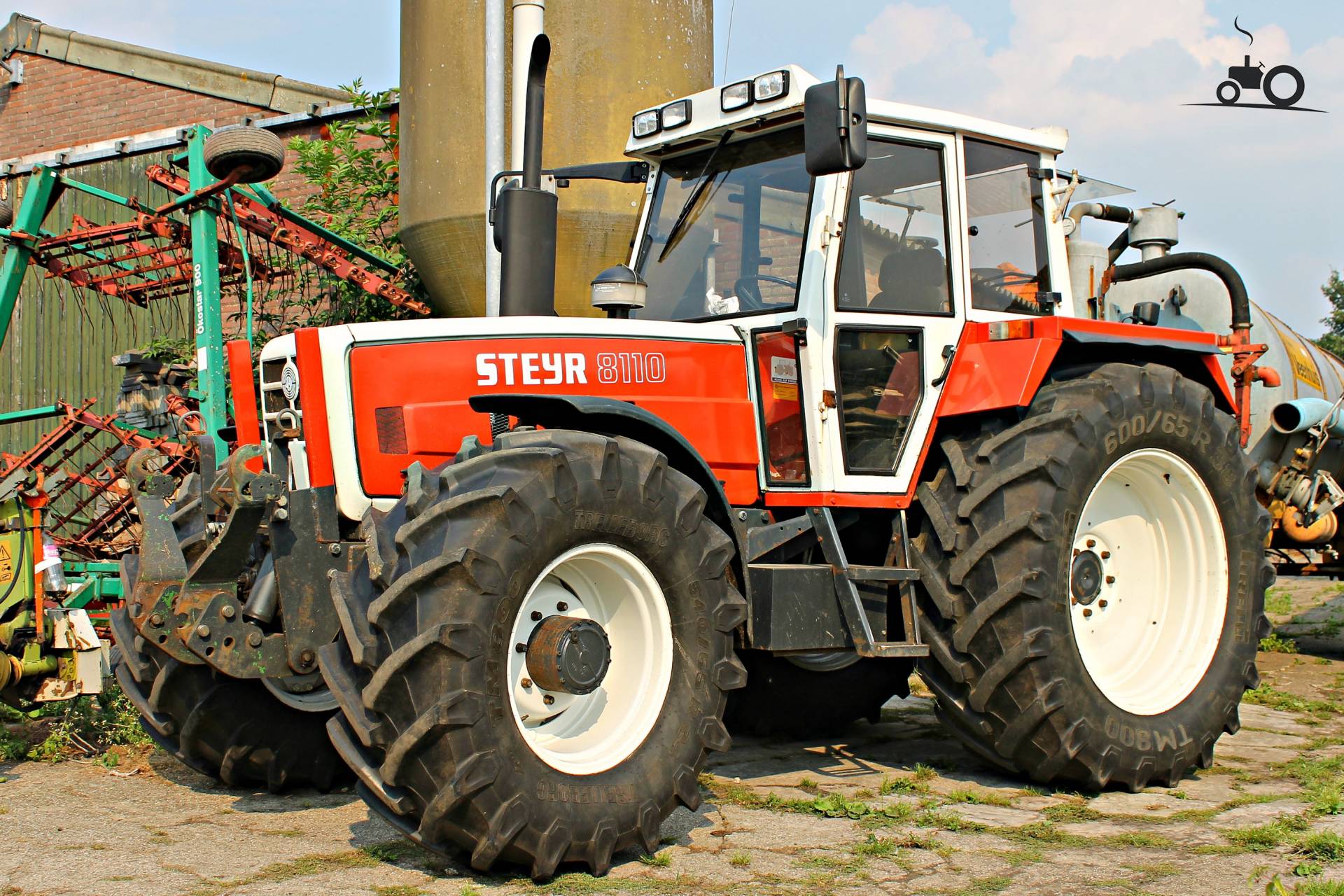

Steyr 8110
Steyr 8110 · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
8576 to 9568 pounds
Hover a source tag to verify
Overview
ManufacturerSteyrReference
The two-wheel drive version of the Steyr 8110 was available until 1987. After that point, only the 4x4 was available.Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
BrakesdiscReference
Brakesengine exhuast brake optionalReference
Trailer brakesair brakes optionalReference
Steyr SK2 cab. Steyer Twin Cab optional. Reversible controls available.Reference
Engine
Steyr 5.2L 6-cyl dieselReference
Fuel tank120.0 LReference
Fuel tank140.0 LReference
Engine74.6 kWReference
Steyr WD 611.43Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.2 LReference
Bore/Stroke100 x 110 mmReference
Power74.6 kWReference
Rated RPM2300Reference
Torque333.0 NmReference
Torque RPM1400Reference
Transmission
18-speed synchronizedReference
36-speed partial power shiftReference
24-speed synchronized with creeperReference
48-speed partial power shiftReference
TypesynchronizedReference
Gears18 forward and 6 reverseReference
Six gears (1-6) in three ranges (L/M/V) plus reverse range. In some areas sixth gears was not available, providing a total of 15 forward and 5 reverse.Reference
TransmissionSteyr-MaticReference
Typepartial power shiftReference
Gears36 forward and 12 reverseReference
Typesynchronized with creeperReference
Gears24 forward and 6 reverseReference
Additional creeper range (K) added to the basic transmission.Reference
Gears48 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)63.2 kWReference
Pressure175.0 barReference
Valves3Reference
Total flow40.9 lpmReference
Rear lift4799 kgReference
Rear lift5833 kgReference
Front lift2202 kgReference
Rear PTO Type540/1000Reference
Front PTO Type1110Reference
Dimensions
Wheelbase259 cmReference
Weight8576 to 9568 poundsReference
Front tire9.00-16Reference
Rear tire16.9R34Reference
Ag front9.00-16 (2WD)Reference
Ag front12.4R24 (4WD)Reference
Ag rear16.9R34Reference
Length425 cmReference
Width214 cmReference
Height (cab)260 cmReference
Height (cab)279 cmReference
Clearance (front axle)39 cmReference
Front tread167 cmReference
Rear tread178 to 215 cmReference
3890 kgReference
4270 kgReference
4340 kgReference
Capacities
Max capacity6500 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
