Tractor · 1984Unverified

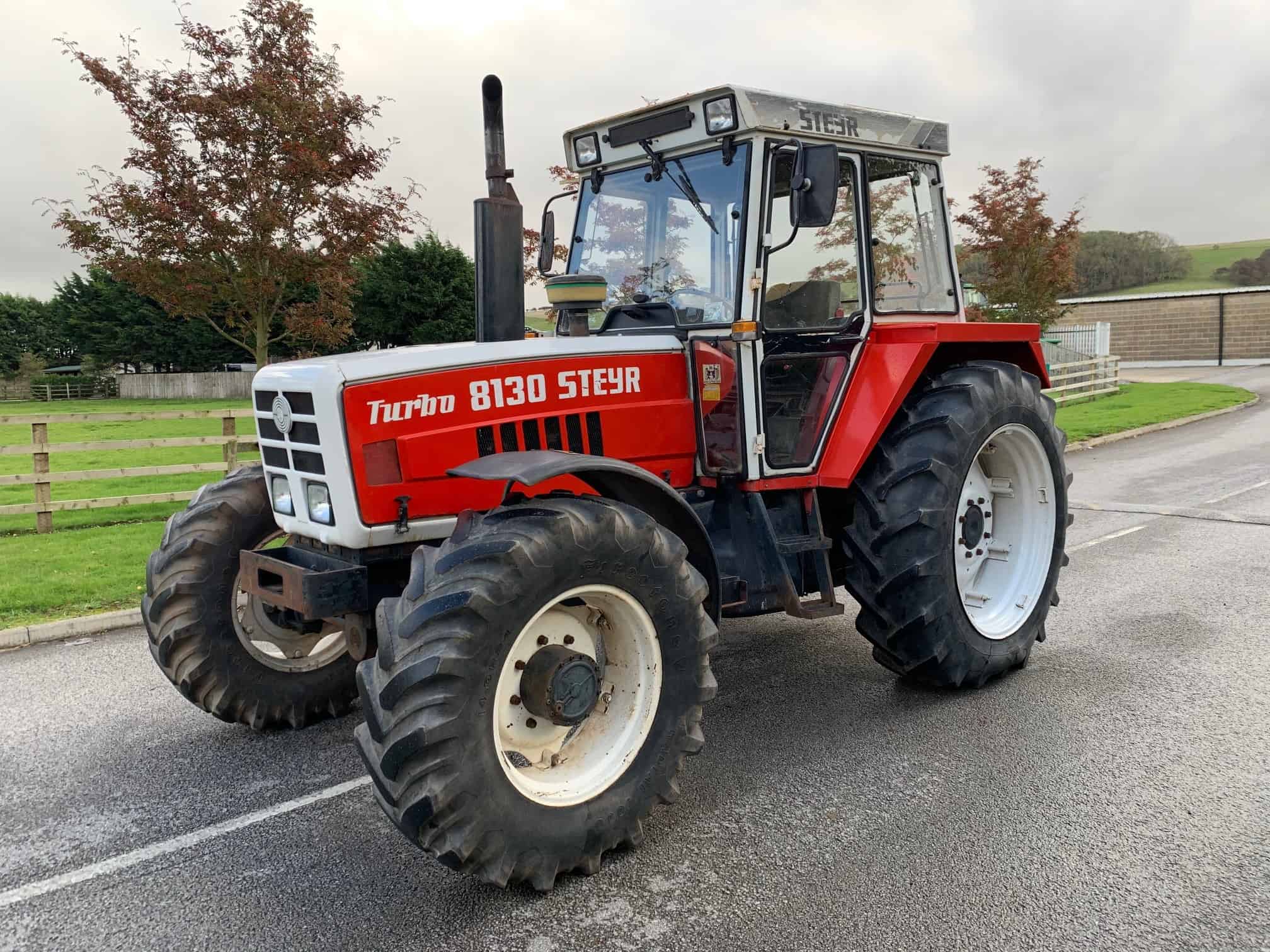

Steyr 8130
Steyr 8130 · 103 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
103 hp
Weight
8774 to 9943 pounds
Hover a source tag to verify
Overview
ManufacturerSteyrReference
The Steyr 8130 was available in two- or four-wheel drive until 1987, after that it was only four-wheel drive.Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
BrakesdiscReference
Brakesengine exhuast brake optionalReference
Trailer brakesair brakes optionalReference
Steyr SK2 cab. Steyer Twin Cab optional. Reversible controls available.Reference
Engine
Steyr 5.2L 6-cyl dieselReference
Fuel tank120.0 LReference
Fuel tank140.0 LReference
Engine89.5 kWReference
Steyr WD 611.88Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.2 LReference
Bore/Stroke100 x 110 mmReference
Power89.5 kWReference
Rated RPM2300Reference
Torque400.0 NmReference
Torque RPM1600Reference
Transmission
18-speed synchronizedReference
36-speed partial power shiftReference
24-speed synchronized with creeperReference
48-speed partial power shiftReference
TypesynchronizedReference
Gears18 forward and 6 reverseReference
Six gears (1-6) in three ranges (L/M/V) plus reverse range. In some areas sixth gears was not available, providing a total of 15 forward and 5 reverse.Reference
TransmissionSteyr-MaticReference
Typepartial power shiftReference
Gears36 forward and 12 reverseReference
Typesynchronized with creeperReference
Gears24 forward and 6 reverseReference
Additional creeper range (K) added to the basic transmission.Reference
Gears48 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)76.8 kWReference
Valves3Reference
Total flow40.9 lpmReference
Rear lift4799 kgReference
Rear lift5833 kgReference
Front lift2202 kgReference
Rear PTO Type540/1000Reference
Front PTO Type1110Reference
Dimensions
Wheelbase259 cmReference
Weight8774 to 9943 poundsReference
Front tire11.00-16Reference
Rear tire18.4R34Reference
Ag front11.00-16 (2WD)Reference
Ag front16.6R24 (4WD)Reference
Ag rear18.4R34Reference
Length428 cmReference
Width214 cmReference
Height (cab)263 cmReference
Height (cab)282 cmReference
Ground clearance40 cmReference
Front tread163 cmReference
Rear tread178 to 215 cmReference
3979 kgReference
4440 kgReference
4510 kgReference
Capacities
Max capacity6500 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
