Tractor · 1977Unverified

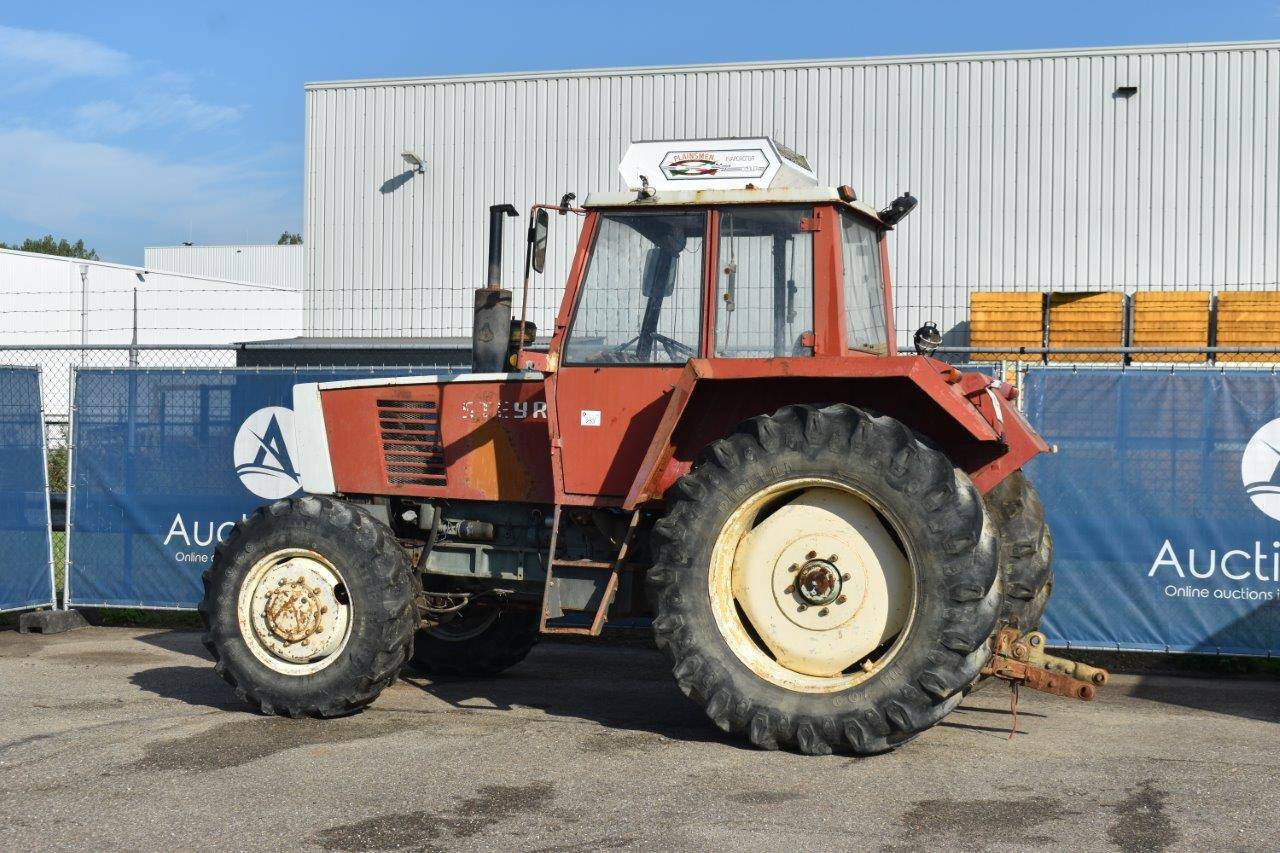

Steyr 8140
Steyr 8140 · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
5280 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Disc brakesReference
Engine
6.6L 6-cyl dieselReference
Fuel tank196.8 LReference
Engine89.5 kWReference
WD 612.40Reference
dieselReference
6-cylinderReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Power89.5 kWReference
Rated RPM2200Reference
Torque451.5 NmReference
Torque RPM1500Reference
Transmission
12-speedReference
TransmissionsynchroReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Total flow40.9 lpmReference
Rear lift4500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase272 cmReference
Weight5280 kgReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
Ag front11.00-16Reference
Ag rear18.4-38Reference
Ag front14.9-28Reference
Length452 cmReference
Height277 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
