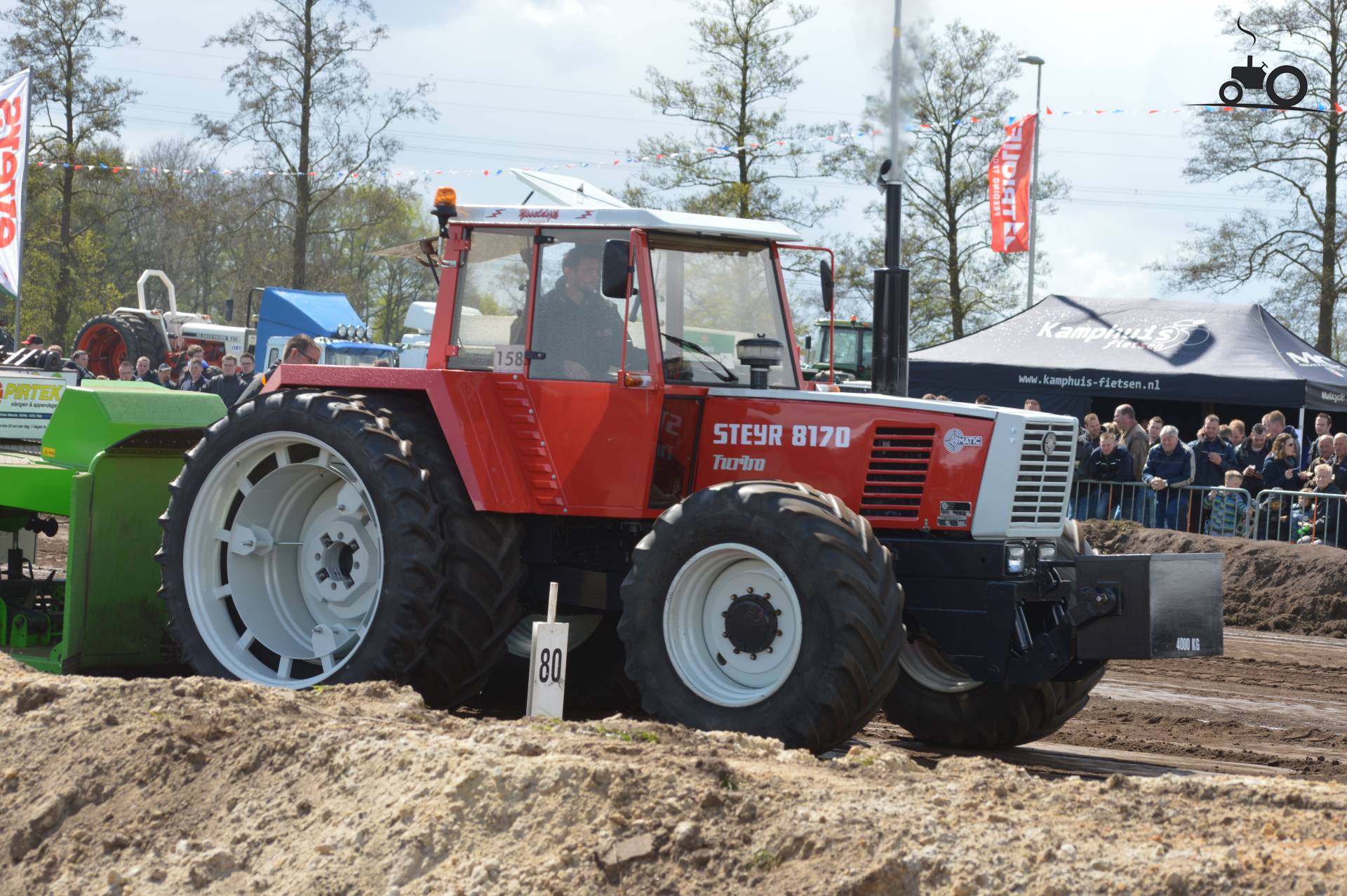

The Steyr 8170 is a tractor with a rated output of 150 hp, categorising it as a high-powered machine in its class. This model was produced between 1981 and 1986. It features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a four-wheel drive system and hydrostatic transmission. The tractor weighs 5911 kg.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
150 hp
Weight
5911 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
150 hp
Recorded weight
5911 kg
Transmissions
12-speed
Production years
1981-1986
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Disc brakesReference
Engine
Steyr 6.6L 6-cyl dieselReference
Fuel tank245.3 LReference
Engine111.9 kWReference
Steyr WD 612.89Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Power111.9 kWReference
Rated RPM2200Reference
Torque589.9 NmReference
Torque RPM1500Reference
Transmission
12-speedReference
TransmissionsynchroReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Total flow40.9 lpmReference
Rear lift6541 kgReference
Rear PTO Type1000Reference
Dimensions
Wheelbase270 cmReference
Weight5911 kgReference
Front tire18.4R26Reference
Rear tire20.8R38Reference
Ag front18.4R26Reference
Ag rear20.8R38Reference
Length498 cmReference
Height283 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
