Tractor · 1987Unverified

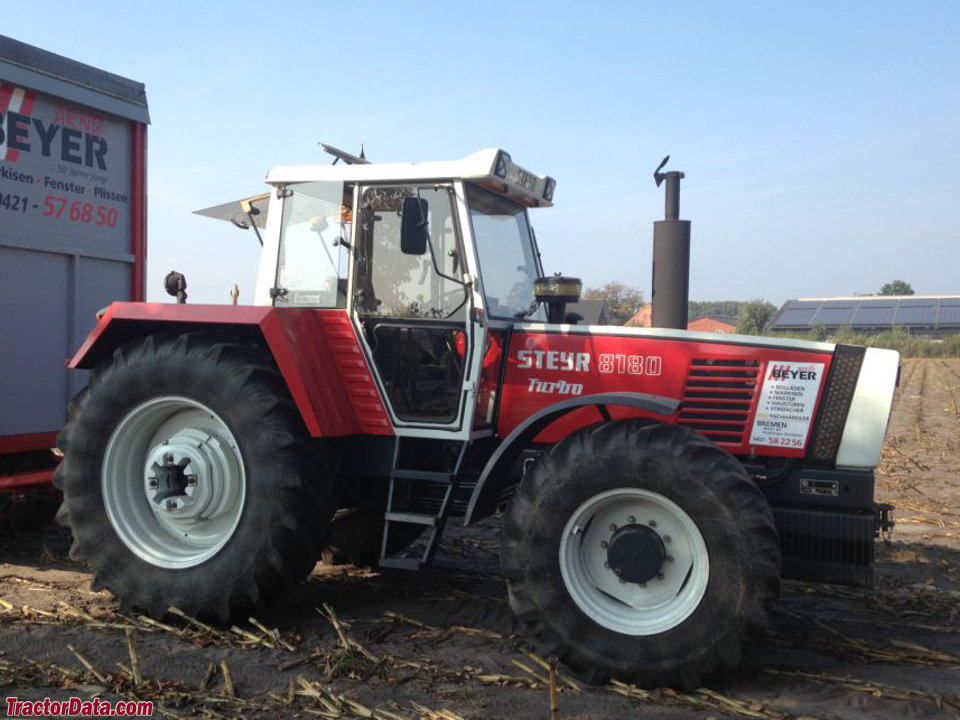

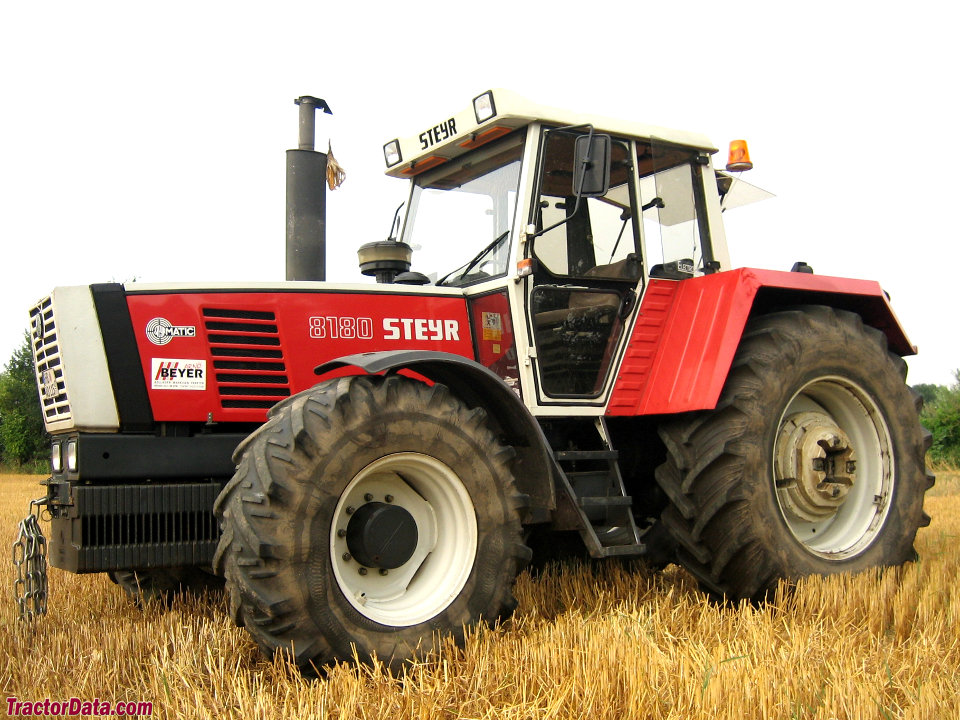

Steyr 8180
Steyr 8180 · 165 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
165 hp
Weight
6246 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standardReference
Engine
Steyr 6.6L 6-cyl dieselReference
Fuel tank240.0 LReference
Engine123.0 kWReference
Steyr WD 612.96Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Power123.0 kWReference
Rated RPM2200Reference
Idle RPM600-2380Reference
Torque634.6 NmReference
Torque RPM1400Reference
Starter volts12Reference
Transmission
36-speed synchromechReference
TypesynchromechReference
Gears36 forward and 12 reverseReference
PTO & Hydraulics
Typeopen centerReference
Total flow43.9 lpmReference
Total flow60.2 lpmReference
Rear TypeIIIReference
Rear lift6501 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM1000@1826Reference
Dimensions
Wheelbase270 cmReference
Weight6246 kgReference
Front tire18.4R28Reference
Rear tire20.8R38Reference
Ag front18.4R28Reference
Ag rear20.8R38Reference
Length528 cmReference
Height287 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
