Tractor · 1956Unverified

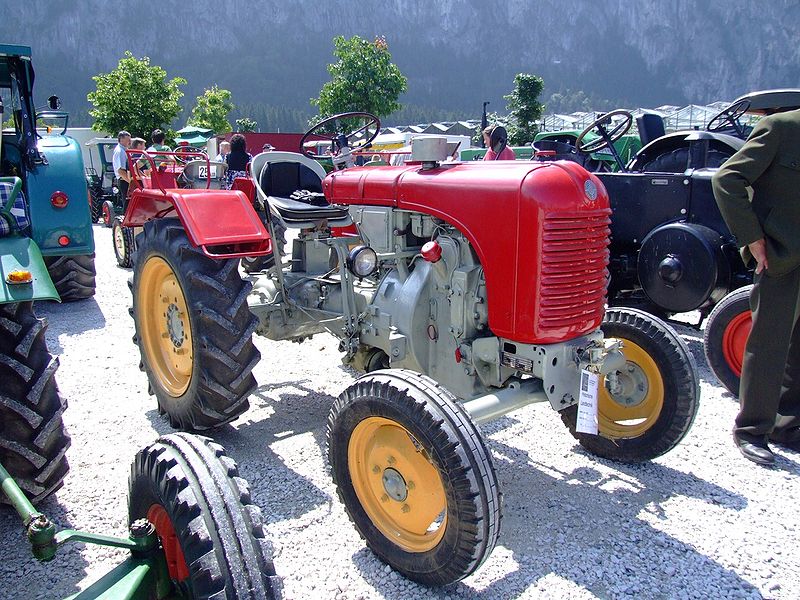

Steyr 84
Steyr 84 — Standard-tread tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1220 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Standard-tread tractorReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
84standard chassisReference
84arow-crop chassisReference
84ehigh-speedReference
84snarrow chassisReference
Engine
Steyr 1.3L 1-cyl dieselReference
Engine (gross)13.3 kWReference
Steyr WD 113aReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke110 x 140 mmReference
Power (gross)13.3 kWReference
Compression21:1Reference
Rated RPM1750Reference
StarterelectricReference
Starter volts12Reference
Transmission
4-speed gearReference
5-speed creeperReference
TypegearReference
Gears4 forward and 1 reverseReference
TypecreeperReference
Gears5 forward and reverseReference
PTO & Hydraulics
Rear PTOtransmissionReference
Rear PTO Type540Reference
Engine RPM540@1500Reference
Dimensions
Wheelbase165 cmReference
Weight1220 kgReference
Front tire5.50-16Reference
Rear tire8-28Reference
Ag front5.50-16Reference
Ag rear8-28Reference
Length255 cmReference
Width160 cmReference
Height151 cmReference
Front tread124 to 145 cmReference
Rear tread128 to 152 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
