Tractor · 1964Unverified

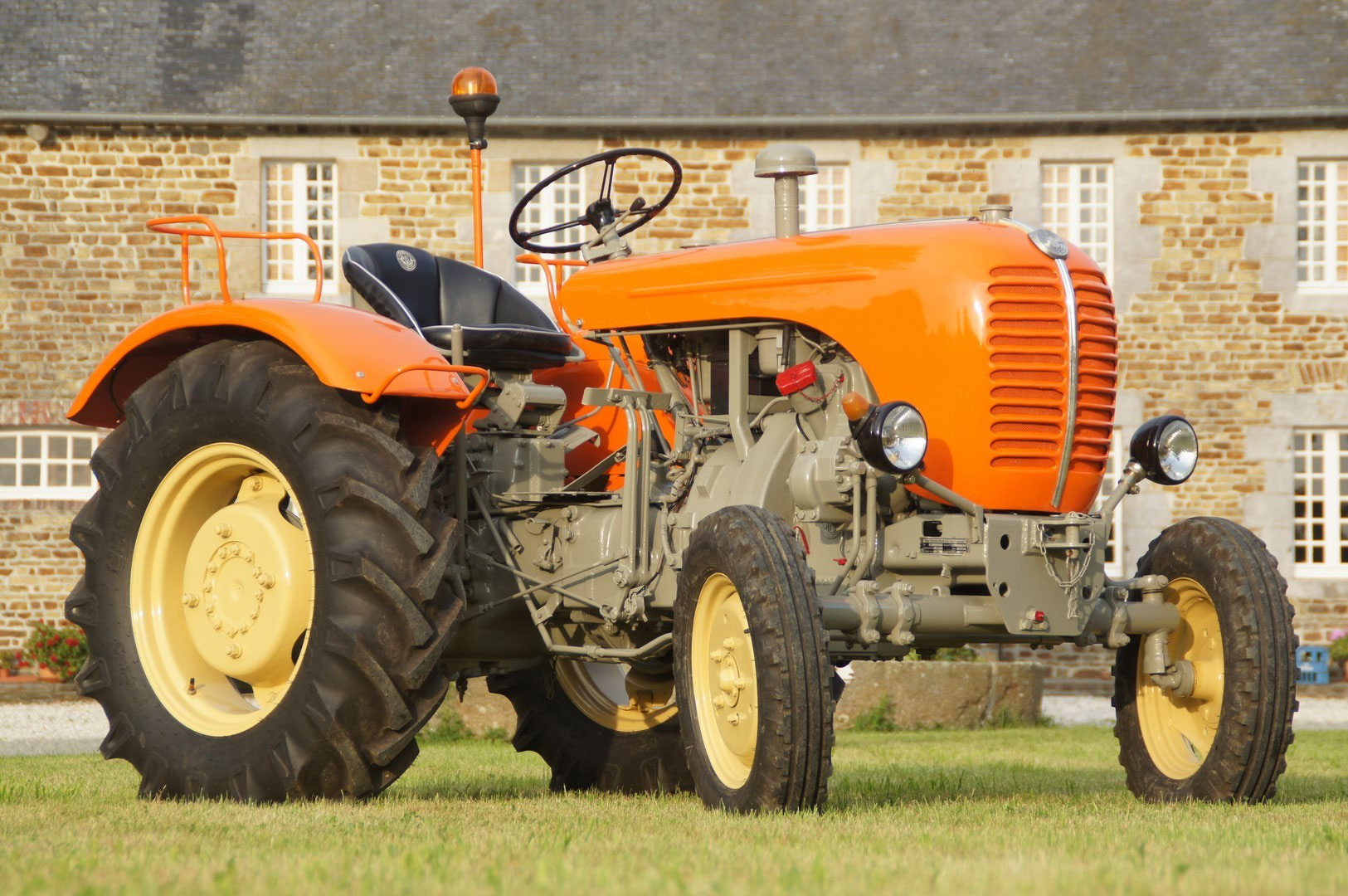

Steyr 86
Steyr 86 — Standard-tread tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1200 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Standard-tread tractorReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
86standard chassisReference
86ehigh-speedReference
86snarrow chassisReference
Engine
Steyr 1.3L 1-cyl dieselReference
Engine (gross)13.3 kWReference
Steyr WD 113aReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke110 x 140 mmReference
Power (gross)13.3 kWReference
Compression21:1Reference
Rated RPM1750Reference
StarterelectricReference
Starter volts12Reference
Transmission
4-speed gearReference
5-speed creeperReference
TypegearReference
Gears4 forward and 1 reverseReference
TypecreeperReference
Gears5 forward and reverseReference
PTO & Hydraulics
Rear PTOtransmissionReference
Rear PTO Type540Reference
Dimensions
Wheelbase165 cmReference
Weight1200 kgReference
Front tire4.00-15Reference
Rear tire8-24Reference
Ag front4.00-15Reference
Ag rear8-24Reference
Ag front5.50-16Reference
Ag rear8-28Reference
Length248 cmReference
Width160 cmReference
Height148 cmReference
Ground clearance30 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
