Tractor · 1968Unverified

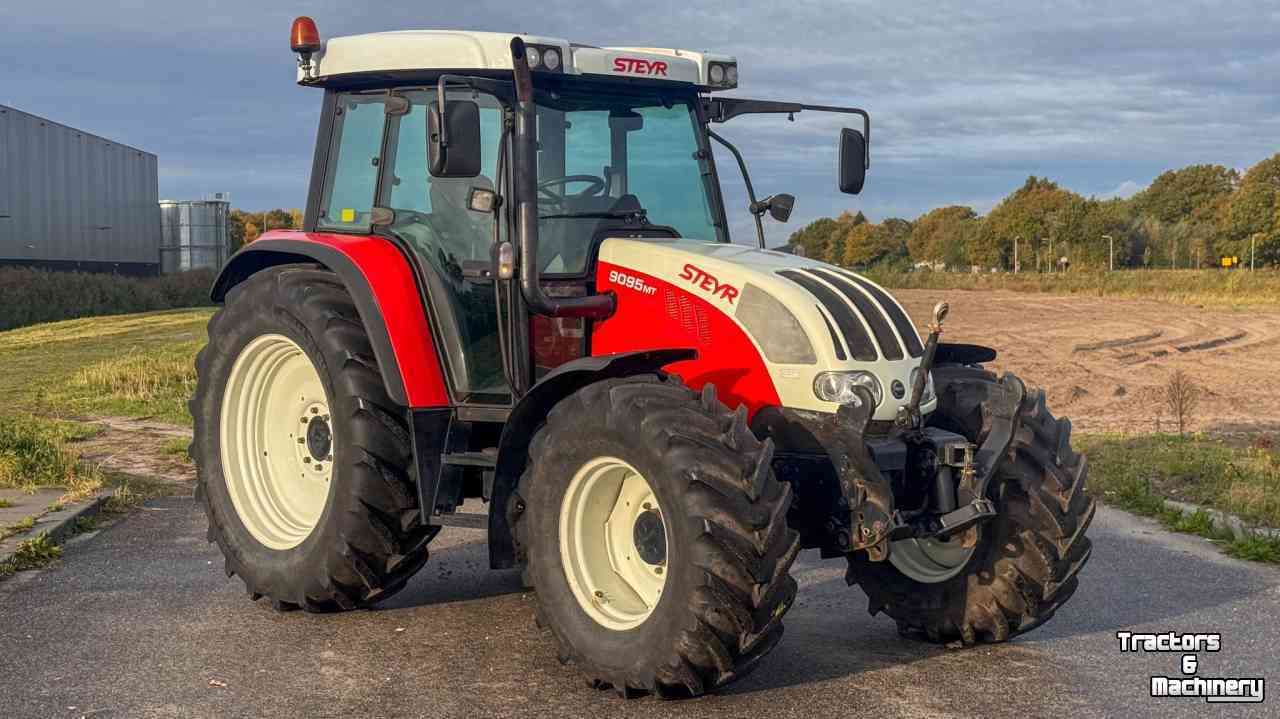

Steyr 90
Steyr 90 · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
3960 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
6.0L 6-cyl dieselReference
Fuel tank118.1 LReference
Engine67.1 kWReference
WD 610tReference
dieselReference
6-cylinderReference
Displacement6.0 LReference
Bore/Stroke105 x 115 mmReference
Power67.1 kWReference
Rated RPM2200Reference
Torque352.6 NmReference
Torque RPM1200Reference
Transmission
12-speedReference
TransmissionsynchroReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Total flow32.2 lpmReference
Rear lift2900 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase259 cmReference
Weight3960 kgReference
Front tire10.50-18Reference
Rear tire18.4-34Reference
Ag front10.50-18Reference
Ag rear18.4-34Reference
Ag front11.2-24Reference
Length419 cmReference
Height243 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
