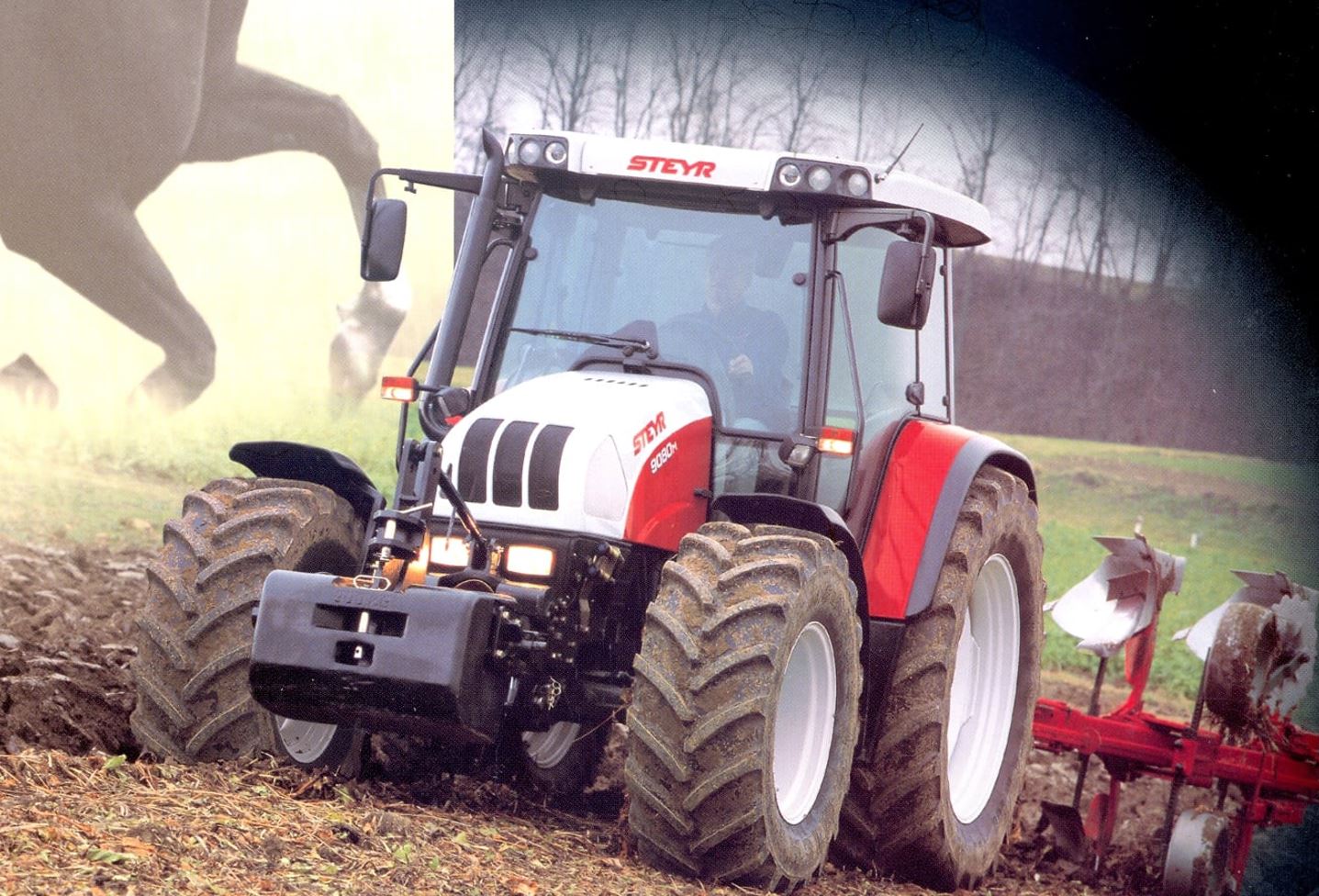

The Steyr 9080M is a tractor with a rated output of 82 hp, positioning it in the middle of its class in terms of power. This model was manufactured from 2003 to 2007. It features a 4-cylinder turbocharged diesel liquid-cooled engine, driving four-wheel drive through a 16-speed gearbox. The listed weight of the Steyr 9080M is 3749 kg, and it is suitable for tasks covering areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
82 hp
Weight
3749 kg
Catalogue coverage
Variants represented
2
Richest spec table
50 rows
Recorded power
82 hp
Recorded weight
3749 kg
Transmissions
16-speed
Production years
2003-2007
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Supercomfort cabReference
Engine
Sisu 4.4L 4-cyl dieselReference
Fuel tank99.9 LReference
Fuel tank149.9 LReference
Engine61.1 kWReference
Sisu 44DTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power61.1 kWReference
Rated RPM2300Reference
Torque310.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
32-speedReference
TransmissionSTEYR Power-2Reference
Gears16 forward and reverseReference
TransmissionSTEYR Synchro ShiftReference
Gears16 forward and 8 reverseReference
TransmissionSTEYR Synchro Shift/creeperReference
Gears32 forward and 16 reverseReference
PTO & Hydraulics
Pressure175.0 barReference
Valves4Reference
Total flow50.0 lpmReference
Total flow85.9 lpmReference
Rear lift4898 kgReference
Front lift3038 kgReference
Rear PTO Type430/540/540E/1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase242 cmReference
Weight3749 kgReference
Front tire9.00-16Reference
Rear tire18.4R34Reference
Ag front9.00-16Reference
Ag rear18.4R34Reference
Length398 cmReference
Width216 cmReference
Height269 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
