Tractor · 1993Unverified

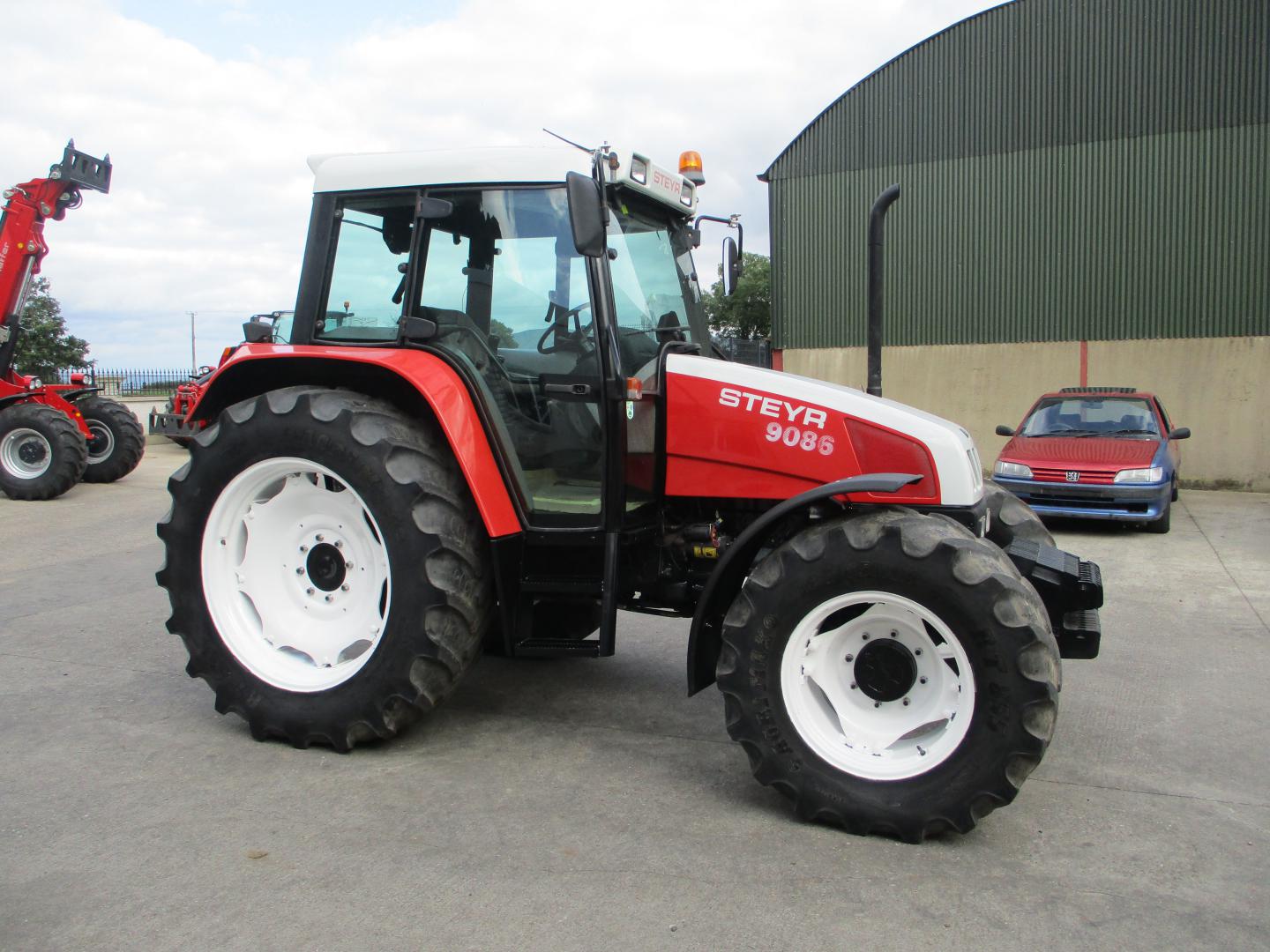

Steyr 9086
Steyr 9086 — Row-Crop tractor · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with heat. Air-conditioning optional.Reference
Variants
9086a4WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank99.9 LReference
Fuel tank149.9 LReference
Engine64.1 kWReference
MWM WD 401.83Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power64.1 kWReference
Rated RPM2300Reference
Torque325.4 NmReference
Torque RPM1500Reference
Transmission
16-speed synchronizedReference
16-speedReference
TypesynchronizedReference
Gears16 forward and 8 reverseReference
TransmissionSteyr-PowerReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
Pressure175.0 barReference
Pump flow50.0 lpmReference
Pump flow96.1 lpmReference
Total flow107.1 lpmReference
Total flow152.9 lpmReference
Rear lift4500 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM390@1933Reference
Engine RPM540@2045Reference
Engine RPM540E@1506Reference
Engine RPM1000@2130Reference
Front PTOoptionalReference
Front PTO Type1000Reference
Engine RPM1000@1933Reference
Dimensions
2WD Wheelbase242 cmReference
4WD Wheelbase247 cmReference
Front tire11.00-16Reference
2WD Rear tire16.9R38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 16.9R38Reference
4WD Standard tires (ag)Front: 13.6R24. Rear: 18.4R34Reference
2WD Length402 cmReference
4WD Length419 cmReference
Width206 cmReference
Height273 cmReference
2WD Clearance (front axle)48 cmReference
4WD Clearance (front axle)47 cmReference
2WD Front tread147 cmReference
4WD Front tread150 to 160 cmReference
Rear tread160 to 170 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
