Tractor · 2003Unverified

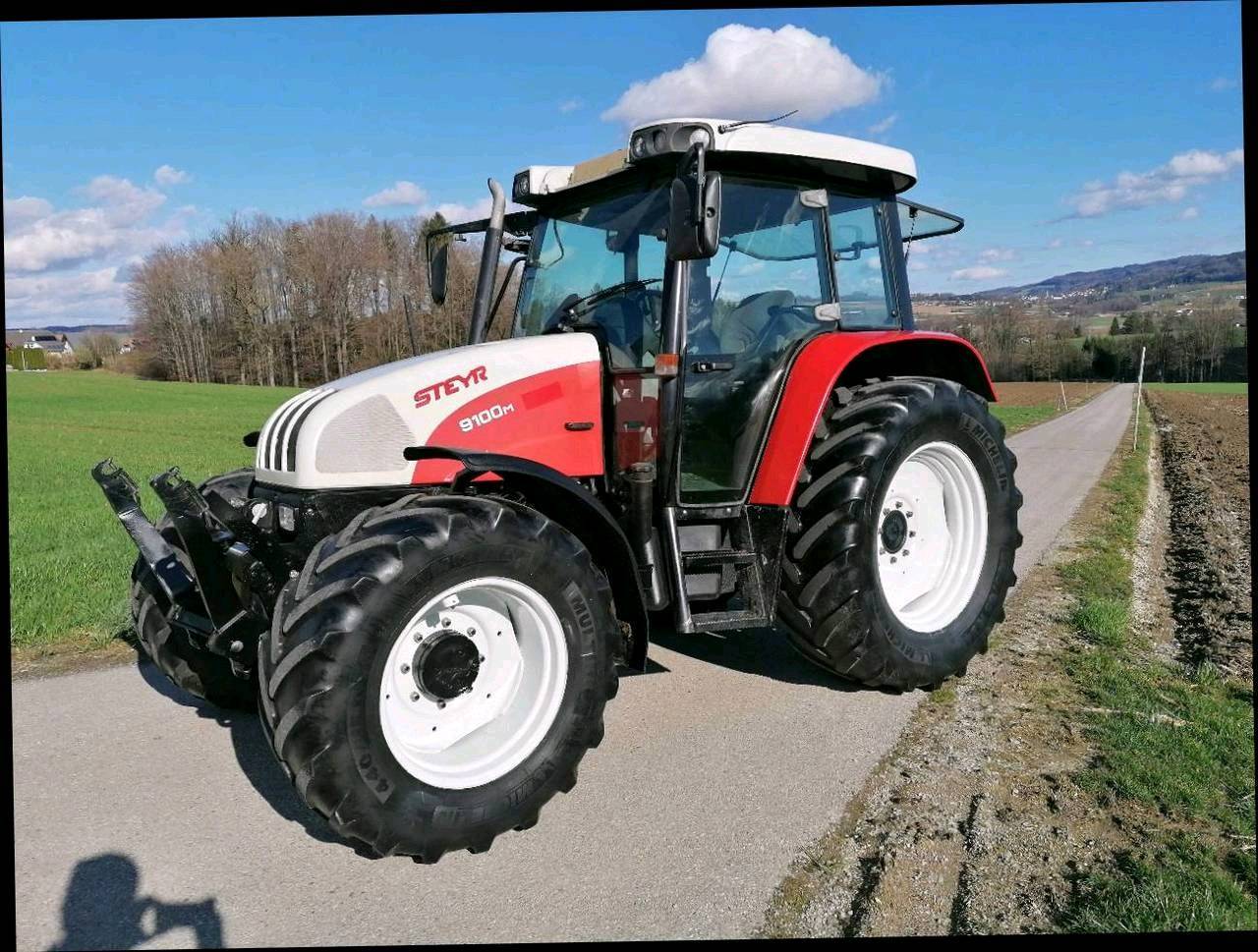

Steyr 9100M
Steyr 9100M — Utility tractor · 97 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
97 hp
Weight
3949 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Supercomfort cabReference
Engine
Sisu 4.4L 4-cyl dieselReference
Fuel tank99.9 LReference
Fuel tank149.9 LReference
Engine72.3 kWReference
Sisu 44DTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power72.3 kWReference
Rated RPM2300Reference
Torque367.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
32-speedReference
TransmissionSTEYR Power-2Reference
Gears16 forward and reverseReference
TransmissionSTEYR Synchro ShiftReference
Gears16 forward and 8 reverseReference
TransmissionSTEYR Synchro Shift/creeperReference
Gears32 forward and 16 reverseReference
PTO & Hydraulics
Pressure175.0 barReference
Valves4Reference
Total flow50.0 lpmReference
Total flow85.9 lpmReference
Rear lift4898 kgReference
Front lift3038 kgReference
Rear PTO Type430/540/540E/1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase248 cmReference
Weight3949 kgReference
Front tire14.9R24Reference
Rear tire18.4R34Reference
Ag front14.9R24Reference
Ag rear18.4R34Reference
Length421 cmReference
Width216 cmReference
Height269 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
