Tractor · 1995Unverified

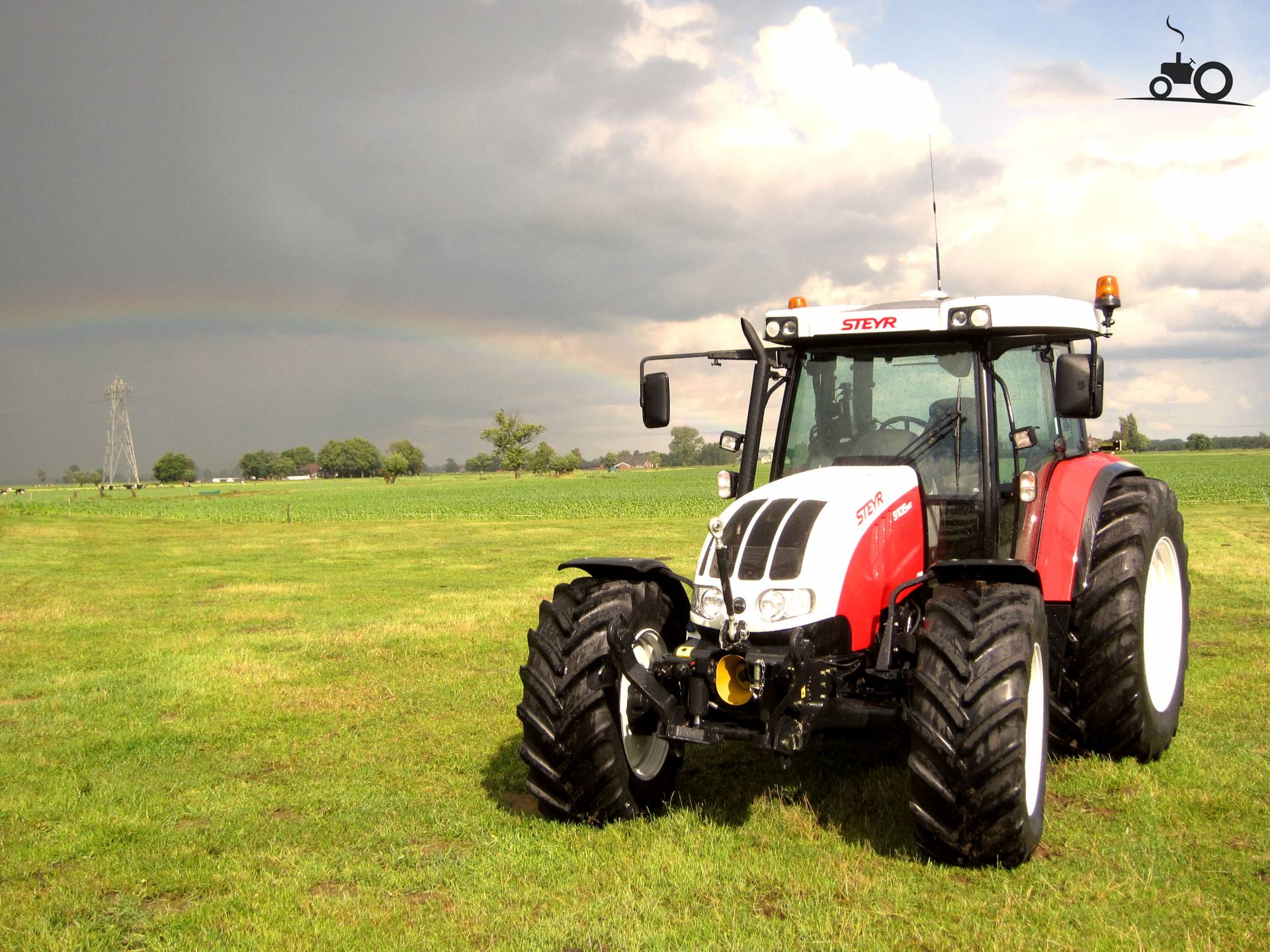

Steyr 9105

Name: Steyr 9105
Brand: Steyr

Steyr 9105 — Row-Crop tractor · 93 hp. Reference specifications; pending source verification.

The Steyr 9105 is a tractor with a rated power of 93 hp, a mid-range figure for its class. It was manufactured from 1995 to 2003, powered by a 4-cylinder turbocharged diesel liquid-cooled engine, and features four-wheel drive with a 24-speed gearbox. The tractor's operating weight is listed at 5015 kg, and it is suited for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

93 hp

Weight

5015 kg

Catalogue coverage

Variants represented

Richest spec table

53 rows

Recorded power

93 hp

Recorded weight

5015 kg

Transmissions

24-speed synchronized

Production years

1995-2003

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSteyrReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Disc brakesReference

Cab standard.Reference

Variants

CS 110similar CaseIH modelReference

Engine

Sisu 4.4L 4-cyl dieselReference

Fuel tank219.9 LReference

Fuel tank300.2 LReference

Engine78.3 kWReference

Sisu 420.8Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

Power78.3 kWReference

Rated RPM2300Reference

Torque416.3 NmReference

Torque RPM1500Reference

Transmission

24-speed synchronizedReference

40-speed creeperReference

TransmissionPower-4Reference

TypesynchronizedReference

Gears24 forward and reverseReference

TypecreeperReference

Gears40 forward and reverseReference

PTO & Hydraulics

PTO (claimed)69.0 kWReference

Total flow79.9 lpmReference

Total flow115.1 lpmReference

Rear TypeIII/IIReference

Rear lift8831 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type1000 (1.75)Reference

Engine RPM540@2210Reference

Engine RPM540E@1608Reference

Engine RPM1000@2200Reference

Engine RPM1000E@1600Reference

Dimensions

Wheelbase253 cmReference

Weight5015 kgReference

Front tire16.9R24Reference

Rear tire18.4R38Reference

Ag front16.9R24Reference

Ag rear18.4R38Reference

Length445 cmReference

Width234 cmReference

Height290 cmReference

Max weight8500 kgReference

Front tread180 cmReference

Rear tread180 cmReference

Speeds

With 20.8R38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
