Tractor · 2008Unverified

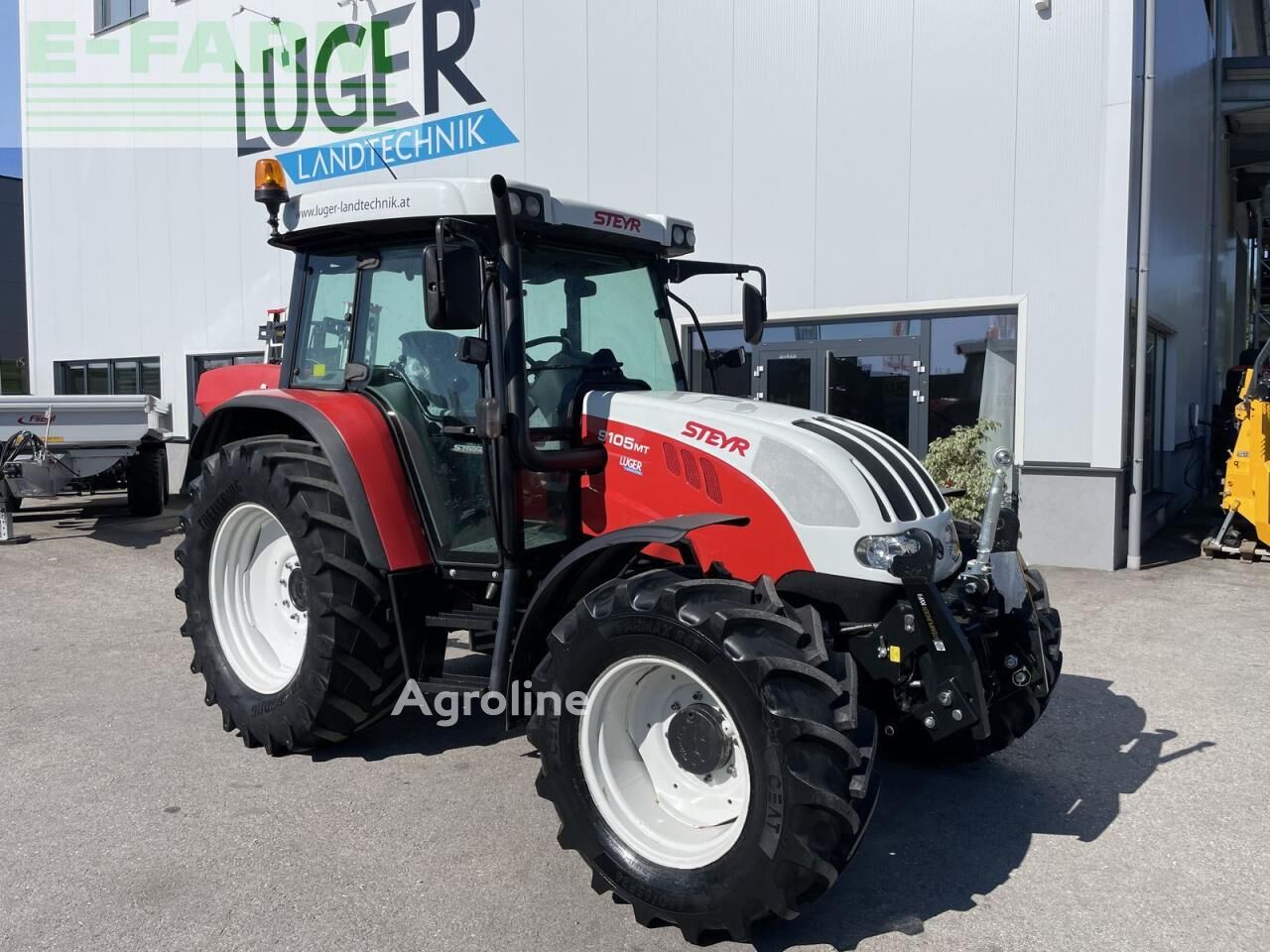

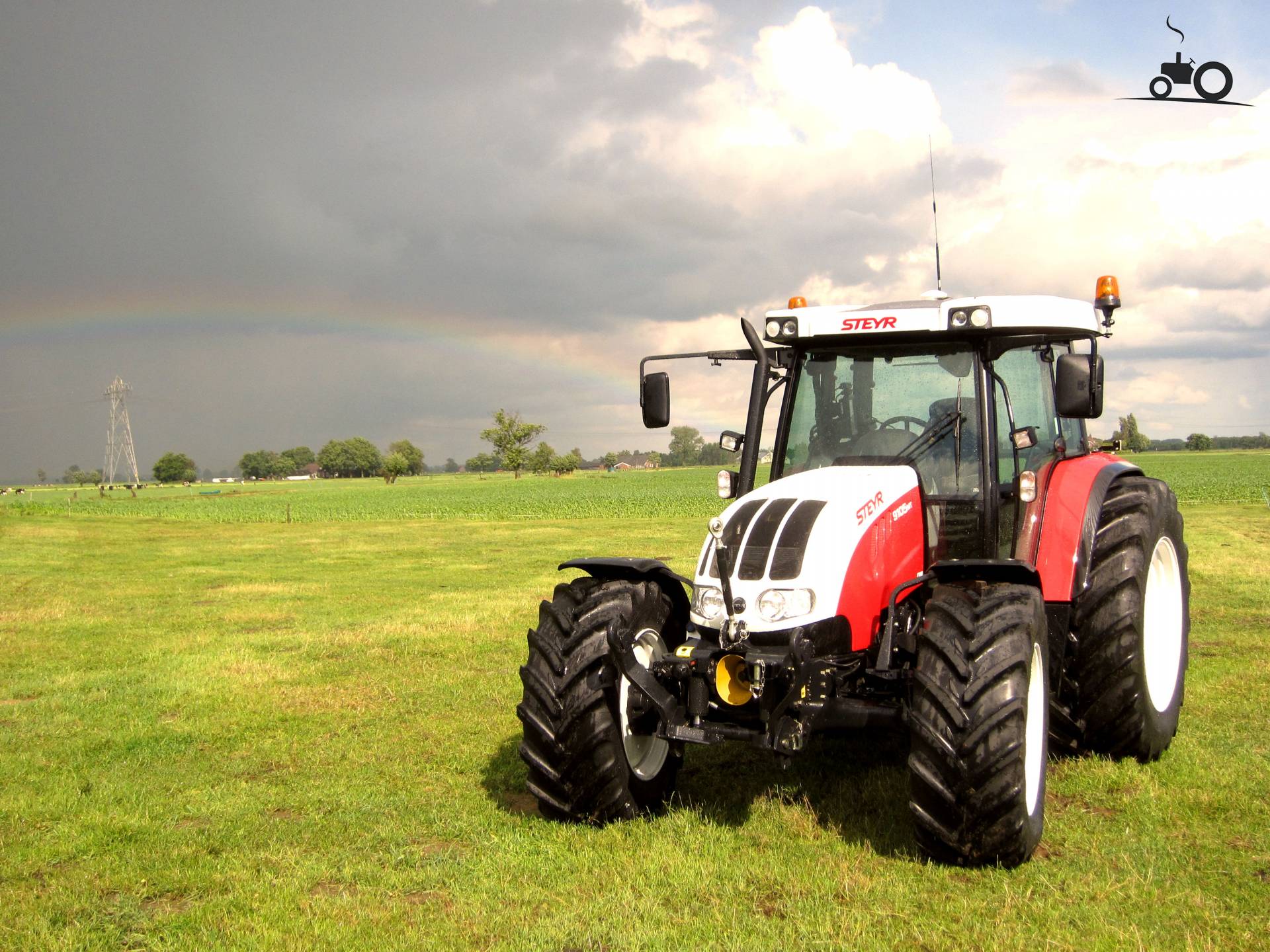

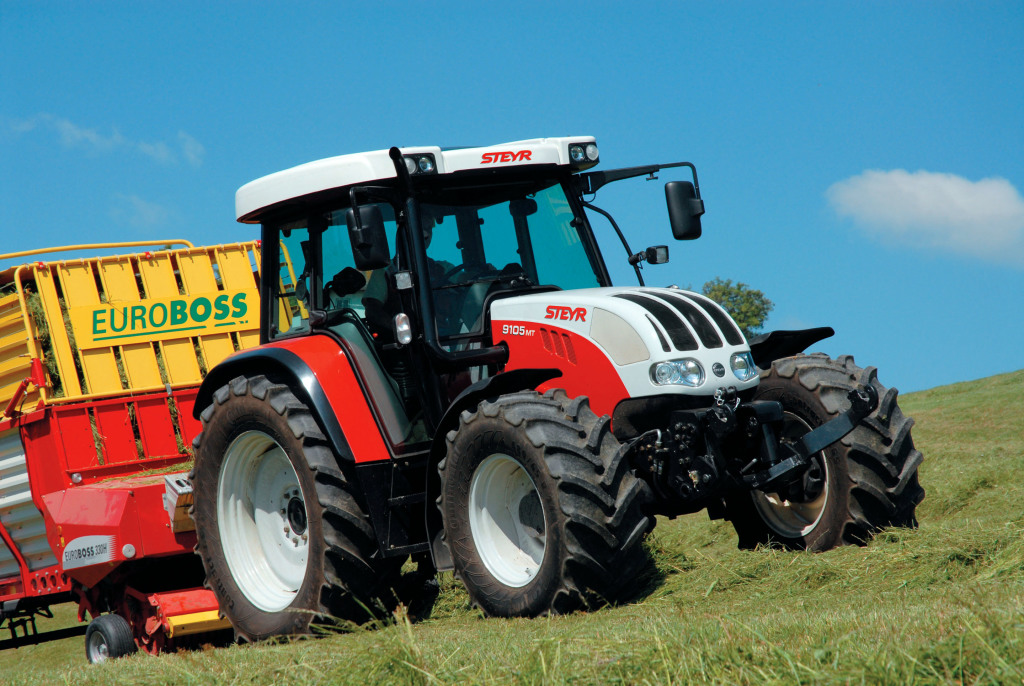

Steyr 9105MT

Name: Steyr 9105MT
Brand: Steyr

Steyr 9105MT — Utility tractor · 101 hp. Reference specifications; pending source verification.

The Steyr 9105MT is a tractor with a rated output of 101 hp, falling within the middle power range of its class. Manufactured from 2008 to 2011, this model is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives through a 16-speed gearbox and four-wheel drive system. The listed weight of the Steyr 9105MT is 4179 kg. It is designed for a range of tasks requiring approximately 200 to 800 acres of cultivation.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

101 hp

Weight

4179 kg

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

101 hp

Recorded weight

4179 kg

Transmissions

16-speed

Production years

2008-2011

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSteyrReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with heater. Available air-conditioning.Reference

Engine

Sisu 4.4L 4-cyl dieselReference

Fuel tank99.9 LReference

Engine (gross)75.3 kWReference

Engine (max)76.1 kWReference

SisuReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier IIIReference

Rated Power (gross)75.3 kWReference

Maximum Power (gross)76.1 kWReference

Rated RPM2300Reference

Torque397.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

TransmissionPower-2Reference

Gears16 forward and 8 reverseReference

PTO & Hydraulics

Pressure175.0 barReference

Valves2 or 3Reference

Pump flow50.0 lpmReference

Pump flow85.9 lpmReference

Steering flow34.1 lpmReference

Rear lift4900 kgReference

Front lift2499 kgReference

Rear PTOindependentReference

Rear PTO Type430/540/540E/1000Reference

Engine RPM430@2130Reference

Engine RPM540@2045Reference

Engine RPM540E@1506Reference

Engine RPM1000@2130Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase248 cmReference

Weight4179 kgReference

Front tire14.9R24Reference

Rear tire18.4R34Reference

Standard tires (ag)Front: 14.9R24. Rear: 18.4R34Reference

Length421 cmReference

Width216 cmReference

Height (cab)273 cmReference

Shipping weight4179 kgReference

Max weight7199 kgReference

Front tread169 cmReference

Rear tread169 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
