Tractor · 1995Unverified

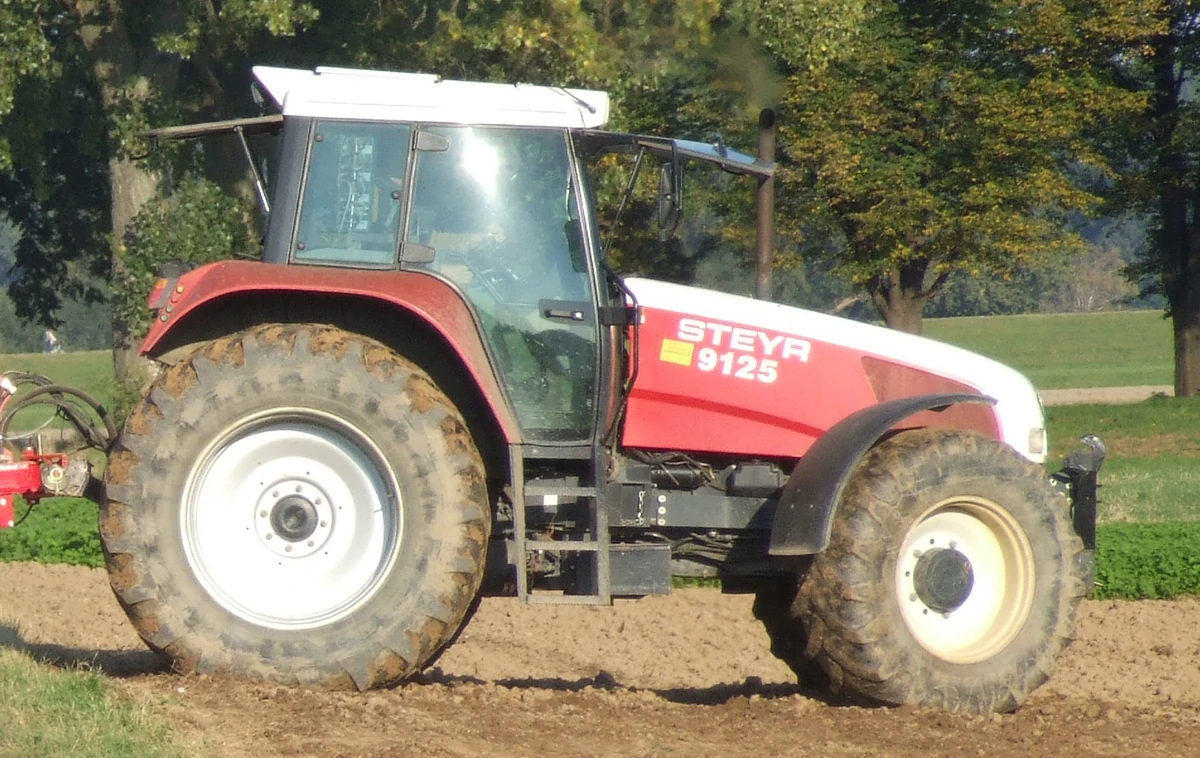

Steyr 9125
Steyr 9125 — Row-Crop tractor · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
5264 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Disc brakesReference
Cab standard.Reference
Variants
CS 130similar CaseIH modelReference
Engine
Sisu 6.6L 6-cyl dieselReference
Fuel tank219.9 LReference
Fuel tank300.2 LReference
Engine94.0 kWReference
Sisu 620.82Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Power94.0 kWReference
Rated RPM2300Reference
Torque496.3 NmReference
Torque RPM1400Reference
Transmission
24-speed synchronizedReference
40-speed creeperReference
TransmissionPower-4Reference
TypesynchronizedReference
Gears24 forward and reverseReference
TypecreeperReference
Gears40 forward and reverseReference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
Total flow79.9 lpmReference
Total flow115.1 lpmReference
Rear TypeIII/IIReference
Rear lift8831 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540@2210Reference
Engine RPM540E@1608Reference
Engine RPM1000@2200Reference
Engine RPM1000E@1600Reference
Dimensions
Wheelbase279 cmReference
Weight5264 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Ag front16.9R28Reference
Ag rear20.8R38Reference
Length477 cmReference
Width249 cmReference
Height294 cmReference
Max weight9000 kgReference
Front tread180 cmReference
Rear tread193 cmReference
Speeds
With 20.8R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
