Tractor · 1995Unverified

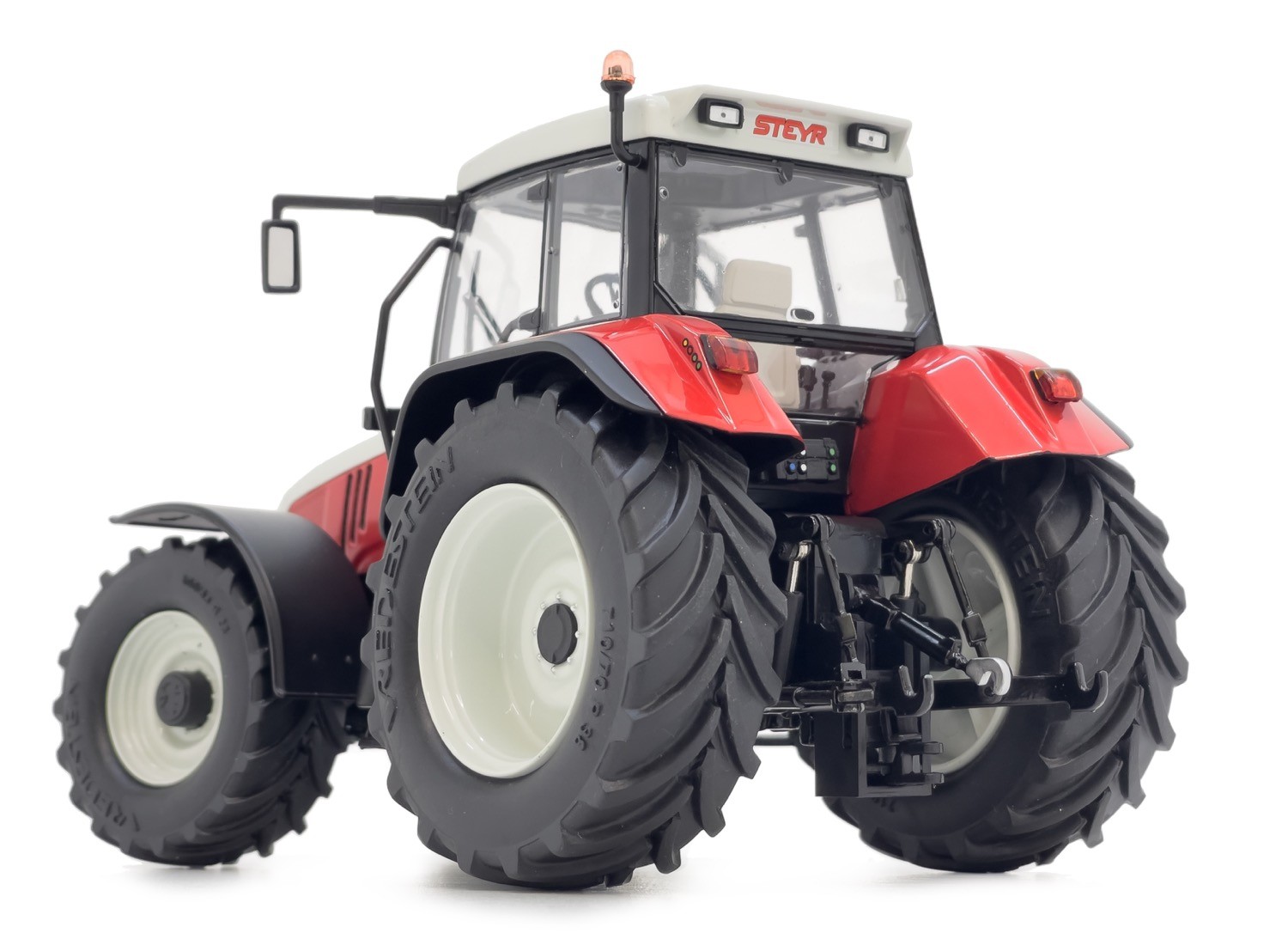

Steyr 9145

Name: Steyr 9145
Brand: Steyr

Steyr 9145 — Row-Crop tractor · 129 hp. Reference specifications; pending source verification.

The Steyr 9145 is a tractor equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, rated at 129 horsepower, which places it at the higher power end of its class. It was manufactured from 1995 to 2003. The 9145 features four-wheel drive and a 24-speed gearbox, and has an operating weight of 5284 kg. It is suited for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

129 hp

Weight

5284 kg

Catalogue coverage

Variants represented

Richest spec table

53 rows

Recorded power

129 hp

Recorded weight

5284 kg

Transmissions

24-speed synchronized

Production years

1995-2003

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSteyrReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Disc brakesReference

Cab standard.Reference

Variants

CS 150similar CaseIH modelReference

Engine

Sisu 6.6L 6-cyl dieselReference

Fuel tank219.9 LReference

Fuel tank300.2 LReference

Engine108.1 kWReference

Sisu 620.83Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

Power108.1 kWReference

Rated RPM2300Reference

Torque577.7 NmReference

Torque RPM1400Reference

Transmission

24-speed synchronizedReference

40-speed creeperReference

TransmissionPower-4Reference

TypesynchronizedReference

Gears24 forward and reverseReference

TypecreeperReference

Gears40 forward and reverseReference

PTO & Hydraulics

PTO (claimed)96.0 kWReference

Total flow79.9 lpmReference

Total flow115.1 lpmReference

Rear TypeIII/IIReference

Rear lift8831 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type1000 (1.75)Reference

Engine RPM540@2210Reference

Engine RPM540E@1608Reference

Engine RPM1000@2200Reference

Engine RPM1000E@1600Reference

Dimensions

Wheelbase279 cmReference

Weight5284 kgReference

Front tire16.9R28Reference

Rear tire20.8R38Reference

Ag front16.9R28Reference

Ag rear20.8R38Reference

Length477 cmReference

Width249 cmReference

Height294 cmReference

Max weight9500 kgReference

Front tread180 cmReference

Rear tread193 cmReference

Speeds

With 20.8R38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
