Tractor · 1993Unverified

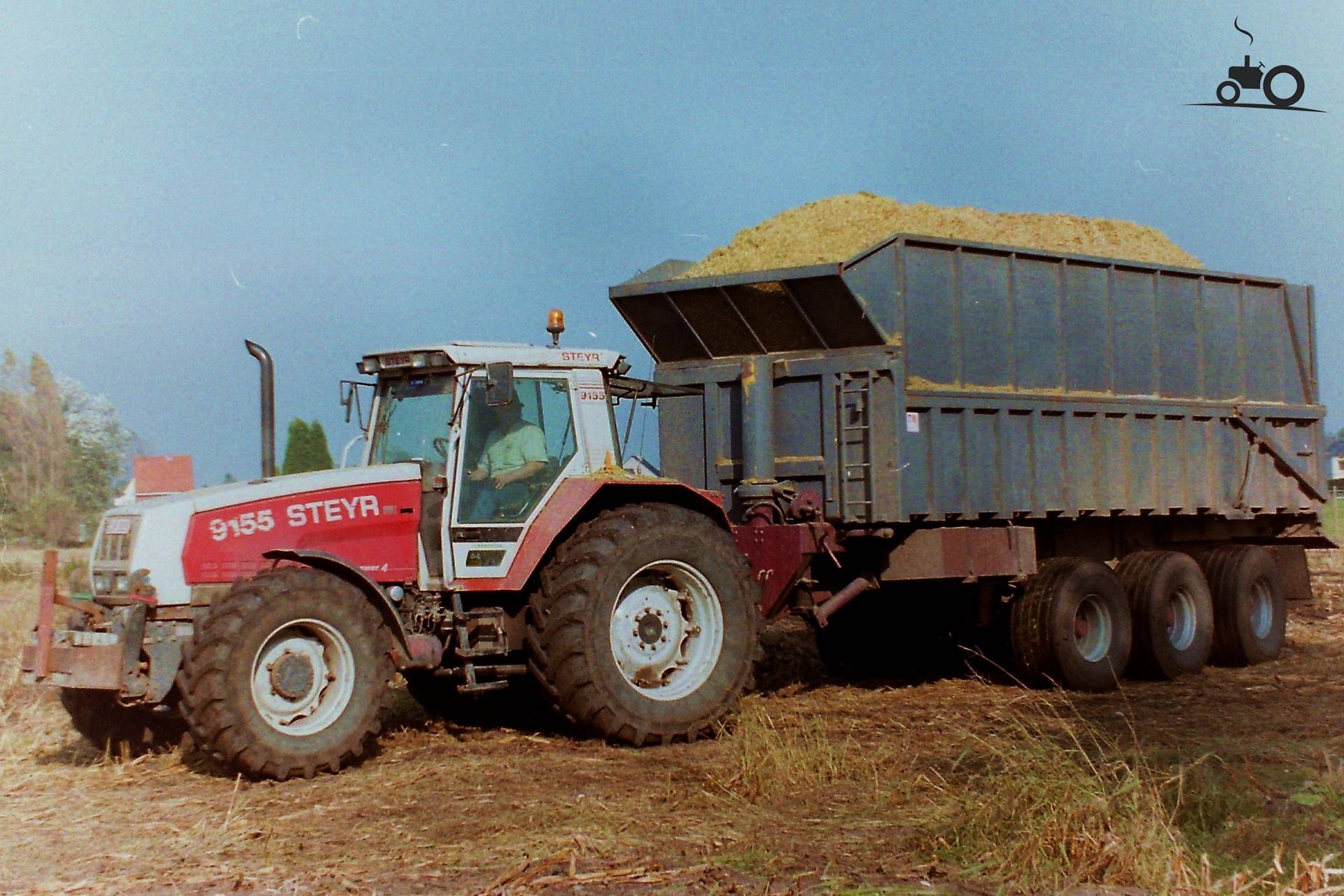

Steyr 9155
Steyr 9155 · 155 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
155 hp
Weight
6051 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Disc brakesReference
Engine
6.6L 6-cyl dieselReference
Fuel tank260.0 LReference
Engine115.6 kWReference
620DSReference
turbo dieselReference
6-cylinderReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Power115.6 kWReference
Rated RPM2200Reference
Torque642.7 NmReference
Torque RPM1500Reference
Transmission
32-speedReference
TransmissionsynchroReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow53.0 lpmReference
Rear lift7801 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase293 cmReference
Weight6051 kgReference
Front tire18.4R26Reference
Rear tire20.8R38Reference
Ag front18.4R26Reference
Ag rear20.8R38Reference
Length516 cmReference
Height286 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
