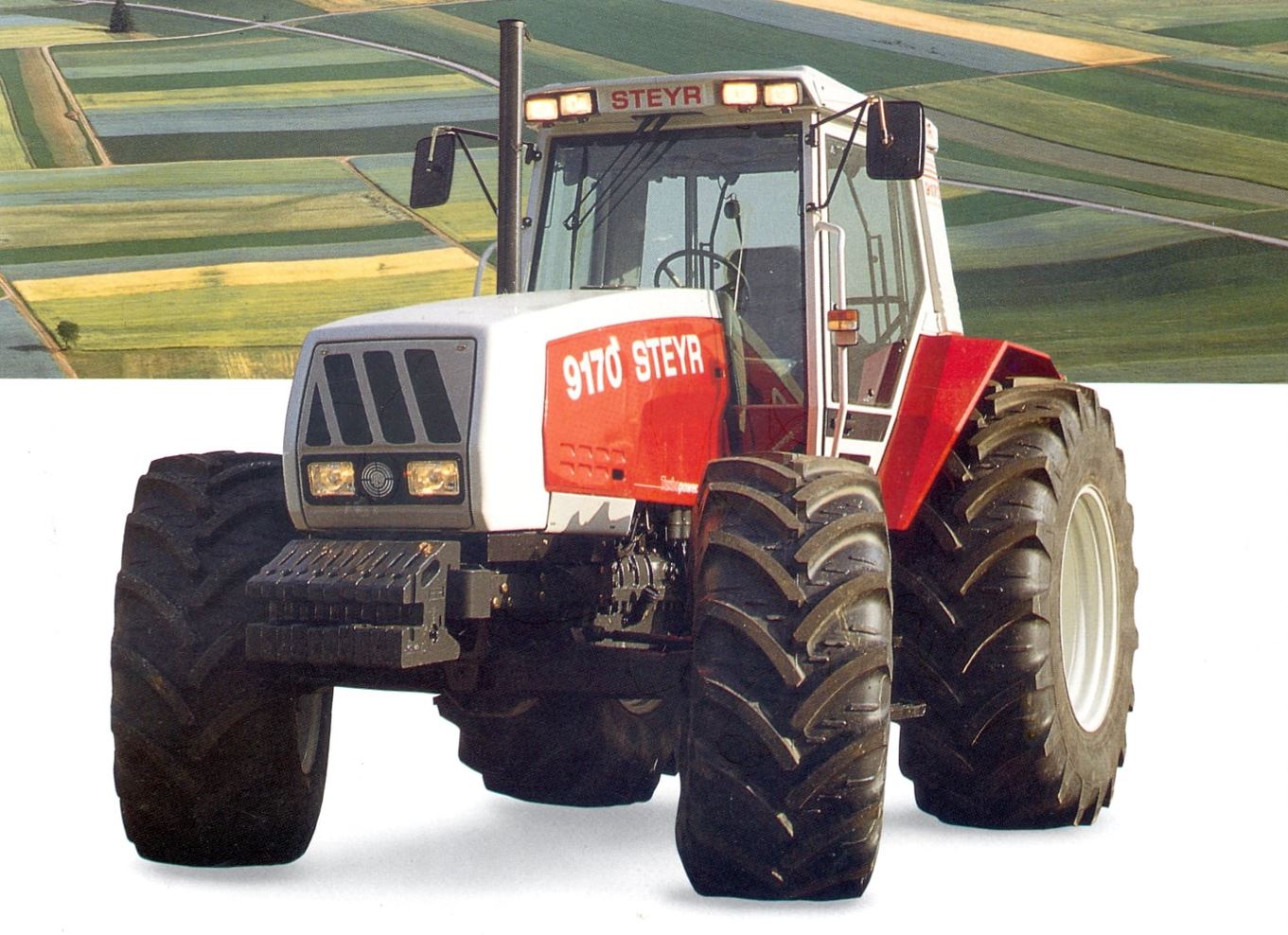

The Steyr 9170 is a tractor with a rated power output of 170 hp, placing it near the more powerful end of its class. It was manufactured between the years 1993 and 1995. The tractor is equipped with a 6-cylinder turbocharged diesel engine and features four-wheel drive with a hydrostatic transmission. Its listed operating weight is 6101 kg, and it is suitable for operations spanning 600 to 1,500 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
170 hp
Weight
6101 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
170 hp
Recorded weight
6101 kg
Transmissions
32-speed
Production years
1993-1995
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Disc brakesReference
Engine
6.6L 6-cyl dieselReference
Fuel tank319.8 LReference
Engine126.8 kWReference
620DSReference
turbo dieselReference
6-cylinderReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Power126.8 kWReference
Rated RPM2200Reference
Torque705.1 NmReference
Torque RPM1500Reference
Transmission
32-speedReference
TransmissionsynchroReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow53.0 lpmReference
Rear lift7801 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase293 cmReference
Weight6101 kgReference
Front tire480/70R30Reference
Rear tire20.8R32Reference
Ag front480/70R30Reference
Ag rear20.8R32Reference
Length516 cmReference
Height291 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
