Tractor · 1993Unverified

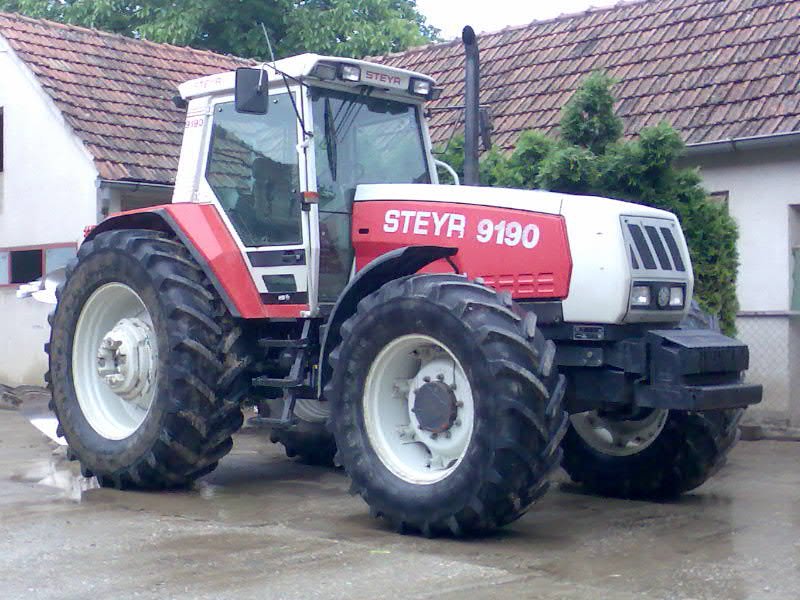

Steyr 9190

Name: Steyr 9190
Brand: Steyr

Steyr 9190 · 190 hp. Reference specifications; pending source verification.

The Steyr 9190 is a tractor model rated at approximately 190 hp, positioning it at the upper power end of its class. Produced between 1993 and 1995, this model is equipped with a 6-cylinder turbocharged diesel engine, coupled with four-wheel drive and a hydrostatic transmission. The 9190 has an operating weight of 6301 kg and is suitable for operations on land areas ranging from 600 to 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

190 hp

Weight

6301 kg

Catalogue coverage

Variants represented

Richest spec table

30 rows

Recorded power

190 hp

Recorded weight

6301 kg

Transmissions

32-speed

Production years

1993-1995

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSteyrReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Disc brakesReference

Engine

7.4L 6-cyl dieselReference

Fuel tank319.8 LReference

Engine141.7 kWReference

634DSReference

turbo dieselReference

6-cylinderReference

Displacement7.4 LReference

Bore/Stroke108 x 134 mmReference

Power141.7 kWReference

Rated RPM2200Reference

Torque790.5 NmReference

Torque RPM1400Reference

Transmission

32-speedReference

TransmissionsynchroReference

Gears32 forward and reverseReference

PTO & Hydraulics

Total flow53.0 lpmReference

Rear lift7801 kgReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase293 cmReference

Weight6301 kgReference

Front tire480/70R30Reference

Rear tire20.8R42Reference

Ag front480/70R30Reference

Ag rear20.8R42Reference

Length516 cmReference

Height291 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
