Tractor · 1993Unverified

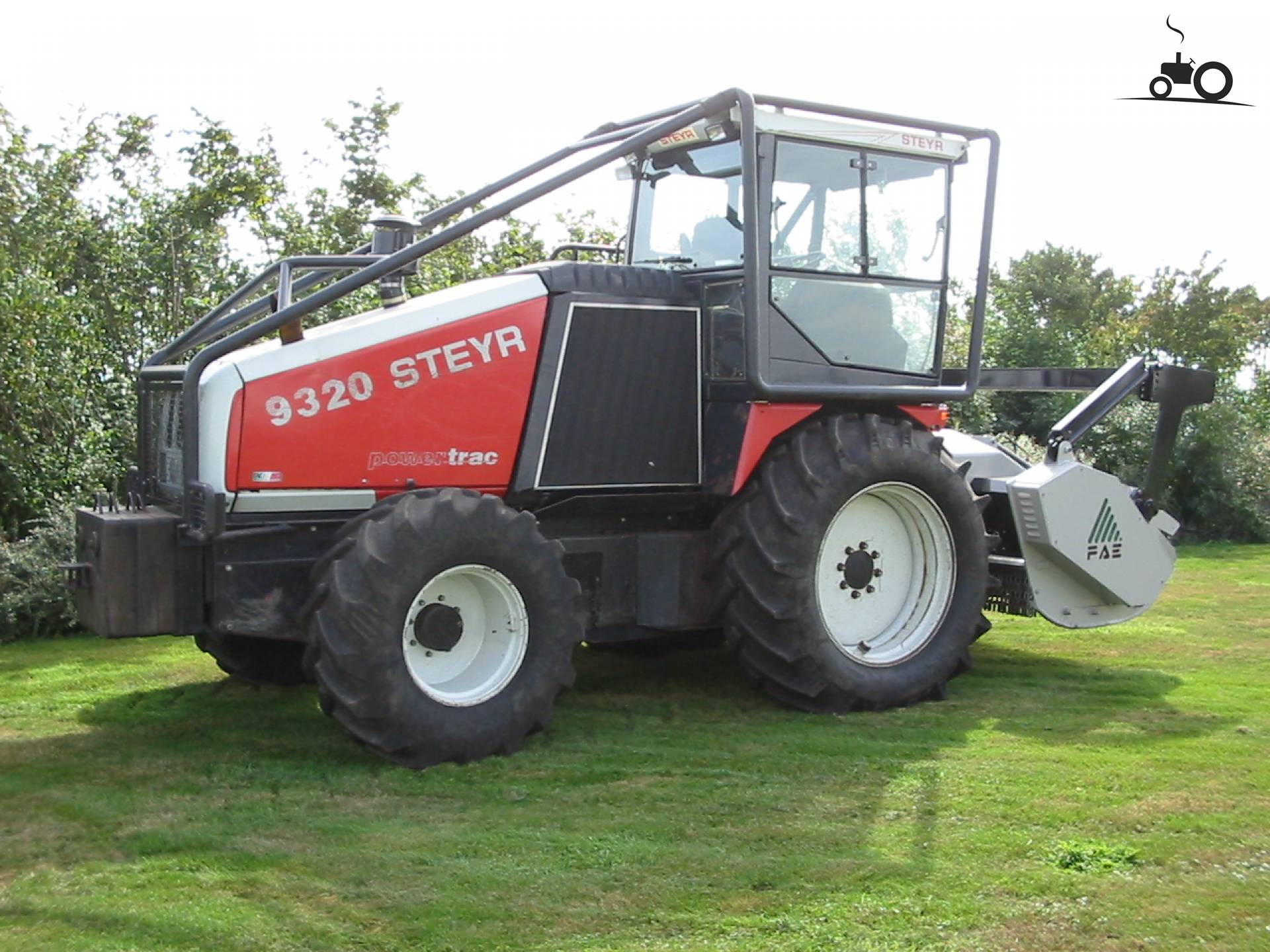

Steyr 9320
Steyr 9320 · 320 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
320 hp
Weight
6401 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Disc brakesReference
Engine
9.7L 6-cyl dieselReference
Fuel tank430.0 LReference
Engine238.6 kWReference
WD 615Reference
turbo dieselReference
6-cylinderReference
Displacement9.7 LReference
Bore/Stroke126 x 130 mmReference
Power238.6 kWReference
Rated RPM2400Reference
Torque RPM1350Reference
PTO & Hydraulics
Total flow46.2 lpmReference
Rear lift7761 kgReference
Rear PTO Type1000Reference
Dimensions
Wheelbase252 cmReference
Weight6401 kgReference
Front tire540/65R24Reference
Rear tire23.1R30Reference
Ag front540/65R24Reference
Ag rear23.1R30Reference
Length455 cmReference
Height328 cmReference
Transmission
TransmissionhydrostaticReference
Gearsinfinite forward and reverseReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
