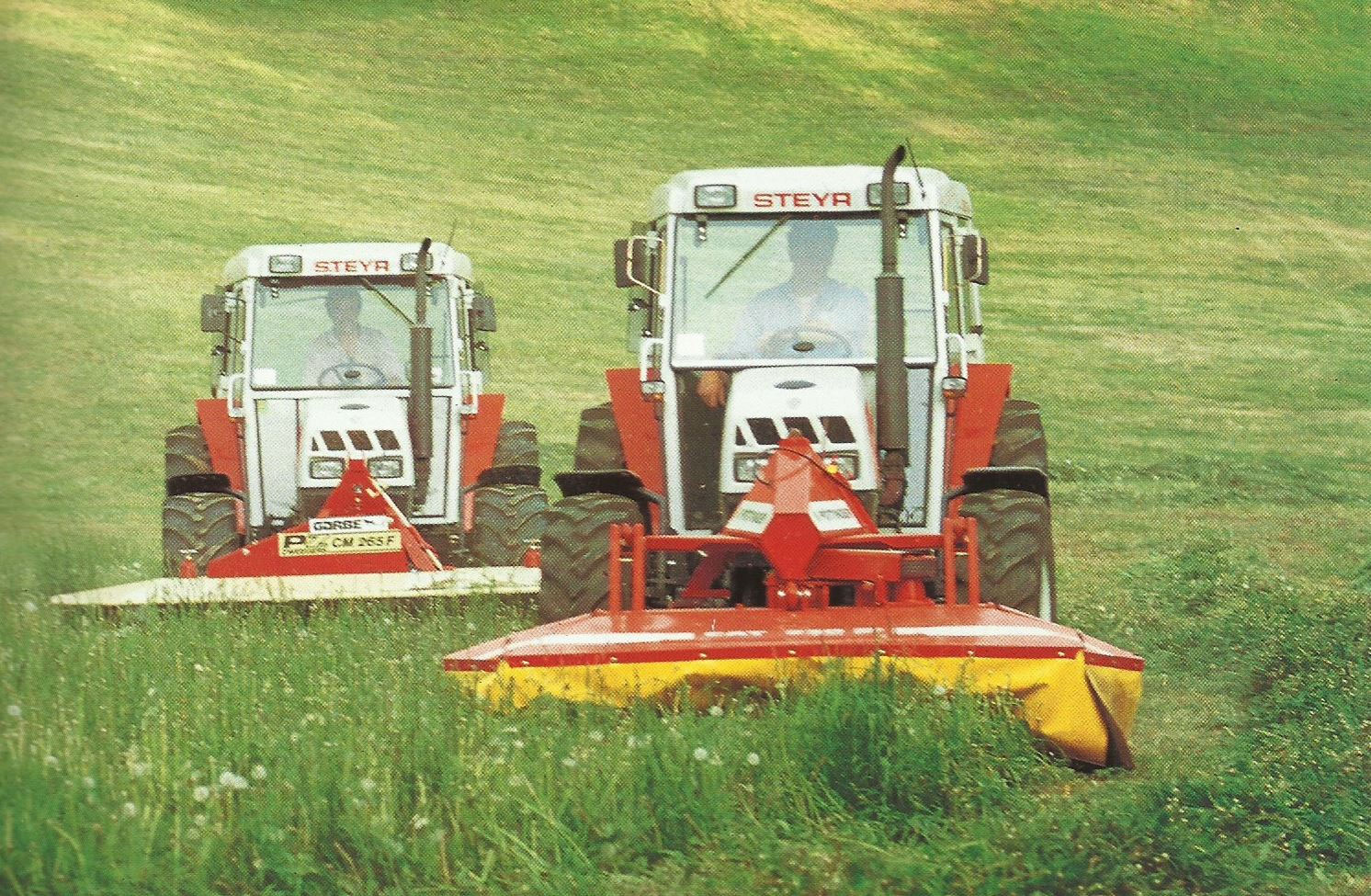

The Steyr 942 is a tractor with a rated power output of 42 hp, positioning it at the lighter end of its class. It was manufactured from 1992 to 1996. The tractor features a 3-cylinder diesel engine, coupled with mechanical front-wheel drive and a hydrostatic transmission. Its operating weight is listed at 2360 kg, suitable for operations spanning up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
2360 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
42 hp
Recorded weight
2360 kg
Transmissions
16-speed
Production years
1992-1996
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Disc brakesReference
Engine
2.4L 3-cyl dieselReference
Fuel tank53.0 LReference
Engine31.3 kWReference
WD308Reference
dieselReference
3-cylinderReference
Displacement2.4 LReference
Bore/Stroke100 x 100 mmReference
Power31.3 kWReference
Rated RPM2400Reference
Torque150.5 NmReference
Torque RPM1350Reference
Transmission
16-speedReference
TransmissionsynchroReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Total flow29.1 lpmReference
Rear lift2000 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase198 cmReference
Weight2360 kgReference
Front tire7.50-16Reference
Rear tire12.4-32Reference
Ag front7.50-16Reference
Ag rear12.4-32Reference
Ag front8.3-24Reference
Length353 cmReference
Height229 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
