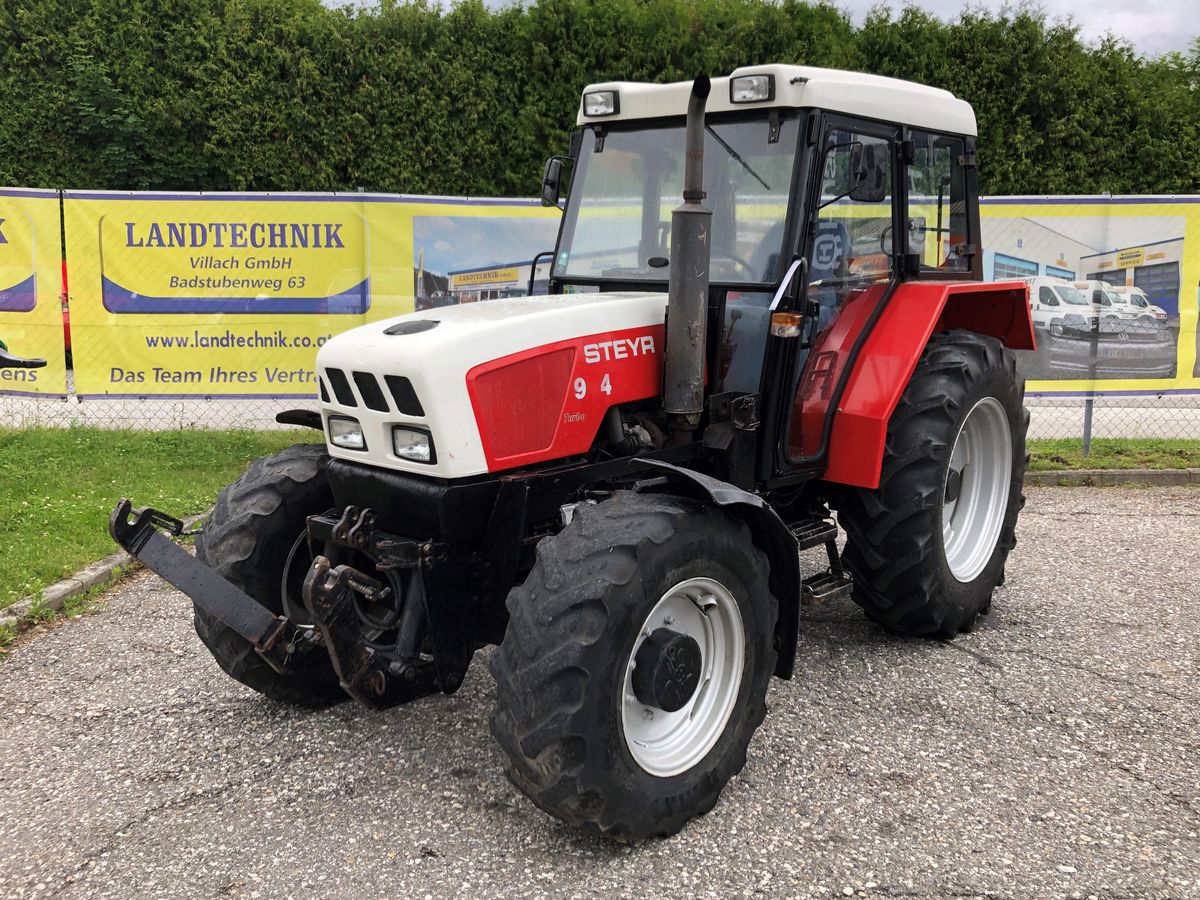

The Steyr 964 is a tractor with a rated power output of 64 horsepower, positioning it at the lighter end of its class. This model was manufactured from 1992 to 1997. It features a 3-cylinder turbocharged diesel engine, coupled with mechanical front-wheel drive and a hydrostatic transmission. The tractor has an operating weight of 2930 kg and is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
2930 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
64 hp
Recorded weight
2930 kg
Transmissions
16-speed
Production years
1992-1997
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Disc brakesReference
Engine
3.1L 3-cyl dieselReference
Fuel tank63.2 LReference
Engine47.7 kWReference
WD301.83Reference
turbo dieselReference
3-cylinderReference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Power47.7 kWReference
Rated RPM2300Reference
Torque252.2 NmReference
Torque RPM1400Reference
Transmission
16-speedReference
TransmissionsynchroReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Total flow43.1 lpmReference
Rear lift2700 kgReference
Rear PTO Type540/750, 1000/1400Reference
Dimensions
Wheelbase223 cmReference
Weight2930 kgReference
Front tire7.50-18Reference
Rear tire13.6R36Reference
Ag front7.50-18Reference
Ag rear13.6R36Reference
Ag front11.2R24Reference
Length381 cmReference
Height244 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
