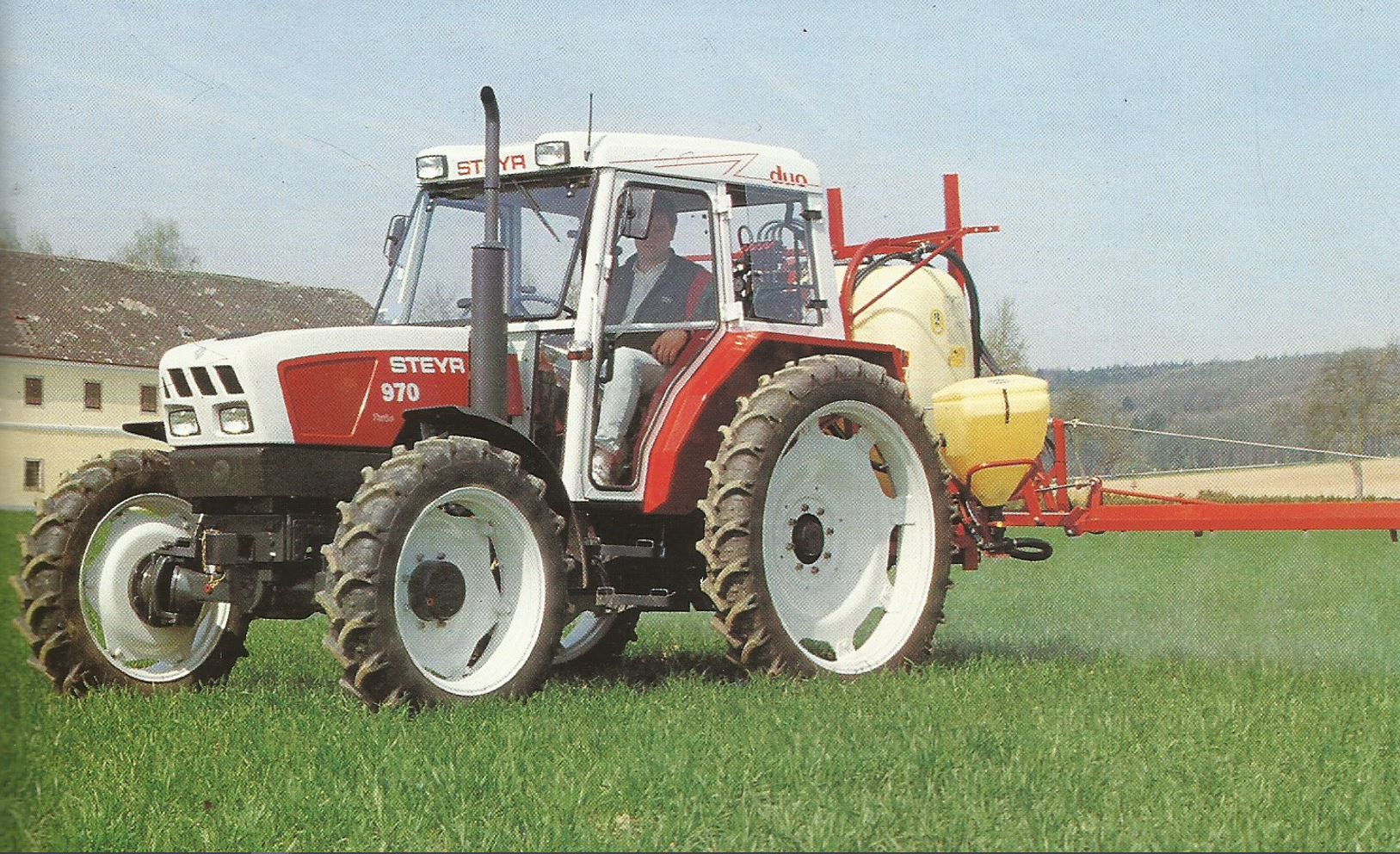

The Steyr 970 is a tractor with an approximate power output of 70 hp, positioning it within the mid-range of its class. In production from 1992 to 1997, the 970 is equipped with a 3-cylinder turbocharged diesel engine and four-wheel drive, paired with a hydrostatic transmission. Its listed operating weight is 2930 kg, and it is suitable for operations spanning up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
2930 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
70 hp
Recorded weight
2930 kg
Transmissions
16-speed
Production years
1992-1997
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Disc brakesReference
Engine
3.1L 3-cyl dieselReference
Fuel tank63.2 LReference
Engine52.2 kWReference
WD301.87Reference
turbo dieselReference
3-cylinderReference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Power52.2 kWReference
Rated RPM2300Reference
Torque267.1 NmReference
Torque RPM1300Reference
Transmission
16-speedReference
TransmissionsynchroReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Total flow43.1 lpmReference
Rear lift2700 kgReference
Rear PTO Type540/750, 1000/1400Reference
Dimensions
Wheelbase223 cmReference
Weight2930 kgReference
Front tire12.4R24Reference
Rear tire16.9R30Reference
Ag front12.4R24Reference
Ag rear16.9R30Reference
Length381 cmReference
Height241 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
