Tractor · 1974Unverified

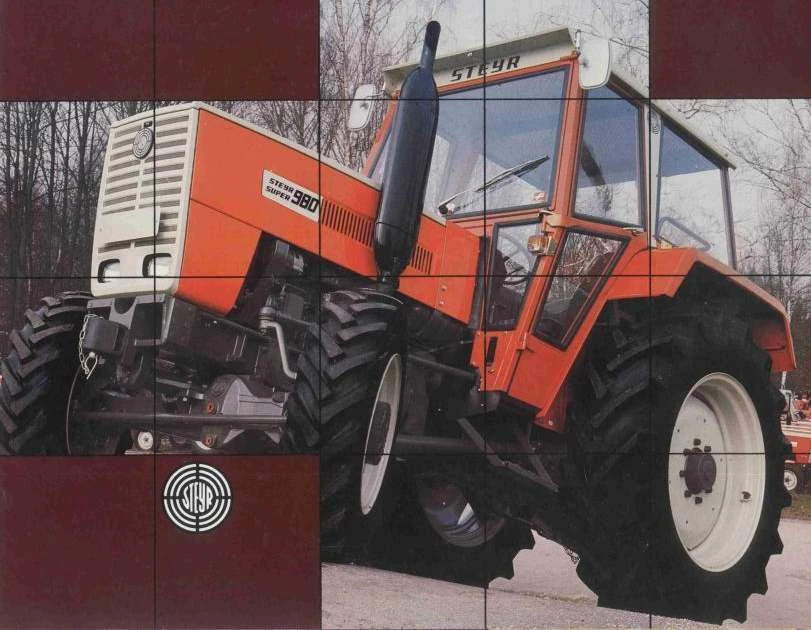

Steyr 980
Steyr 980 · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
3785 kg
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Engine
4.4L 4-cyl dieselReference
Fuel tank107.9 LReference
Engine59.7 kWReference
WD 412.40Reference
dieselReference
4-cylinderReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power59.7 kWReference
Rated RPM2200Reference
Torque294.3 NmReference
Torque RPM1600Reference
Transmission
12-speedReference
TransmissionsynchroReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Total flow32.2 lpmReference
Rear lift3800 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase233 cmReference
Weight3785 kgReference
Front tire7.50-20Reference
Rear tire16.9-34Reference
Ag front7.50-20Reference
Ag rear16.9-34Reference
Ag front10.5-20Reference
Length388 cmReference
Height261 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
