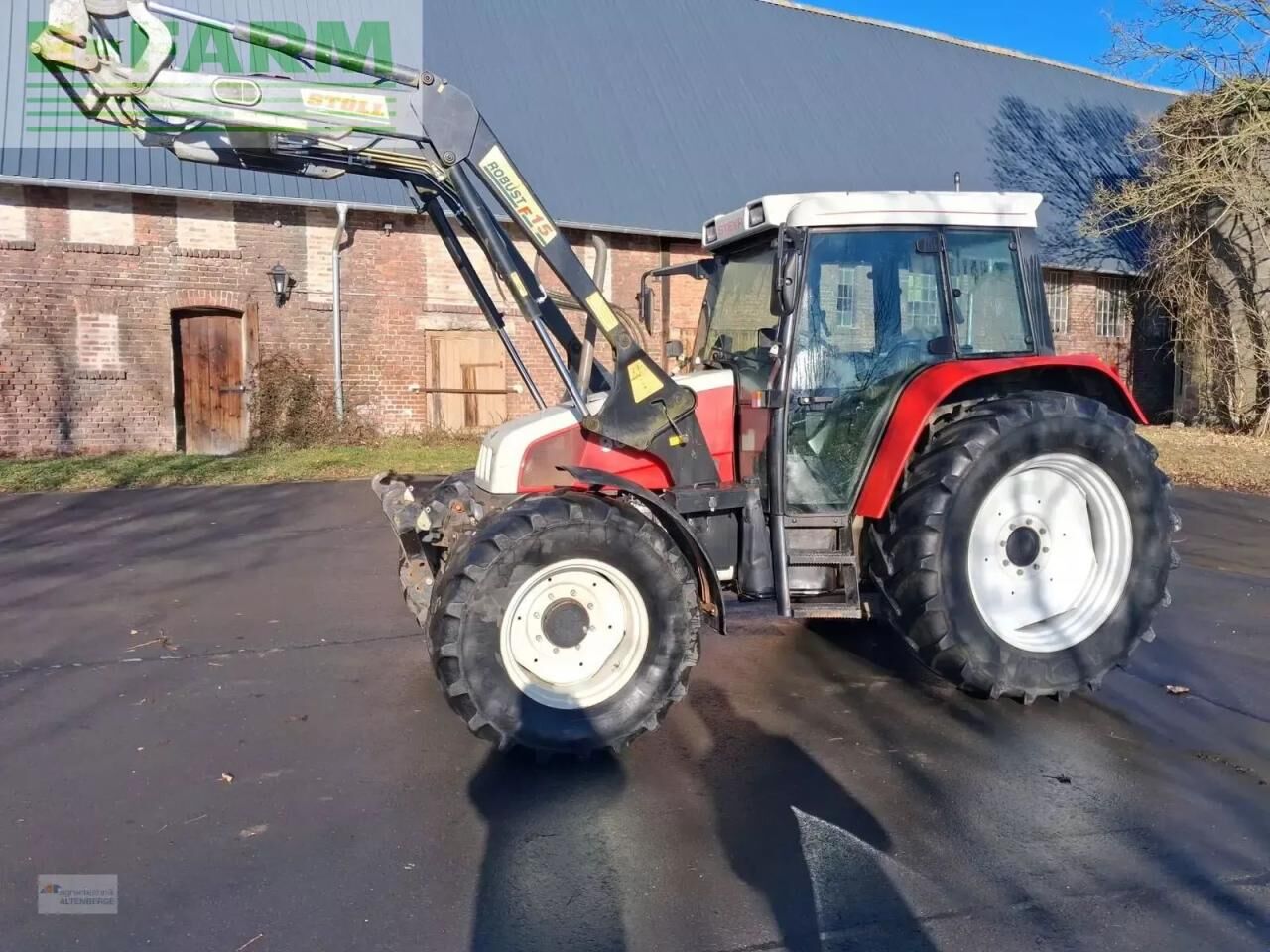

The Steyr M 9086 is a tractor with a rated power of 86 hp, a mid-range figure for its class. Constructed from 1995 to 2003, this model is equipped with a 4-cylinder turbocharged diesel engine and a four-wheel drive system combined with a hydrostatic transmission. The Steyr M 9086 has an operating weight of 3920 kg and is suitable for operations of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Weight
3920 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
86 hp
Recorded weight
3920 kg
Transmissions
16-speed
Production years
1995-2003
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSteyrReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Disc brakesReference
Engine
MWM 4.2L 4-cyl dieselReference
Sisu 4.4L 4-cylReference
Fuel tank99.9 LReference
Fuel tank149.9 LReference
Engine64.1 kWReference
MWM WD 401.83Reference
turbo dieselReference
4-cylinderReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power64.1 kWReference
Rated RPM2300Reference
Torque325.4 NmReference
Torque RPM1500Reference
Sisu 420.82Reference
turboReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power63.4 kWReference
Torque329.5 NmReference
Torque RPM1300Reference
Transmission
16-speedReference
TransmissionsynchroReference
Gears16 forward and 8 reverseReference
Gears16 forward and reverseReference
PTO & Hydraulics
Total flow50.0 lpmReference
Total flow84.0 lpmReference
Rear lift4900 kgReference
Rear PTO Type430/540/ 750/1000Reference
Dimensions
Wheelbase247 cmReference
Weight3920 kgReference
Front tire14.9R24Reference
Rear tire18.4R34Reference
Ag front14.9R24Reference
Ag rear18.4R34Reference
Length420 cmReference
Height266 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
